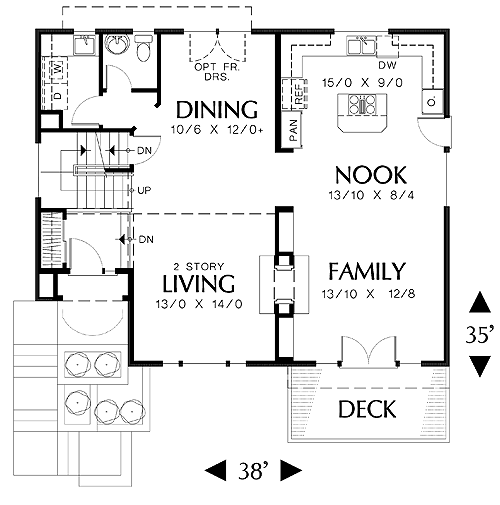

First Floor Plan:
First Floor Plan image of Newell House Plan
All images copyrighted by designer.

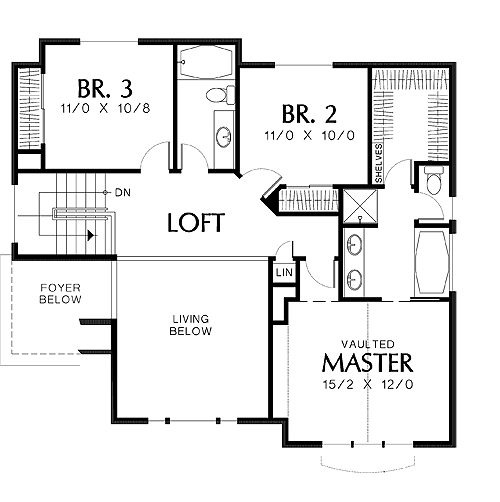

Second Floor Plan:
Second Floor Plan image of Newell House Plan
All images copyrighted by designer.

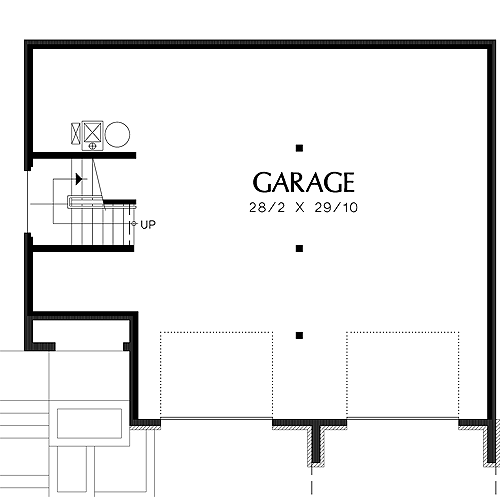

Lower Level:
Lower Level image of Newell House Plan
All images copyrighted by designer.

Plan # THD-  | Name:

Newell House Plan

THD-AMD-2511
ENERGY STAR Stories: 2
Total Living Area: 1978 Sq. Ft.
First Floor: 1106 Sq. Ft.
Second Floor: 872 Sq. Ft.
Lower Floor: 66 Sq. Ft.
Bedrooms: 3
Full Baths: 2, Half Baths: 1
Width: 38 Ft.    Depth: 35 Ft.
Garage Size: 2
Foundation: Daylight Basement-Included
View Plan Details >
  View Slideshow
Sloping Lot Tri-Level Plan with Loft
View house plan description >
Add to Favorites
Reverse this Plan
Cost to Build
Modify Plan
Free online quote >
Print this Plan
Plan Packages
HOUSE PLAN SETS
 Bid Set  $575.00
 Five Set Package  $685.00
 Eight Set Package  $715.00
 Vellums - Single Use  $850.00
 Digital Plans - Single Use  $850.00
 CAD File - Single Use  $1,450.00
FOUNDATION OPTIONS
 Daylight Basement-Included  $0.00
ADDITIONAL PLAN OPTIONS
 ENERGY STAR® Approved  $275.00
 Additional Sets  $25.00
 Full Reverse Sets  $75.00

Click here for details about our plan packages
(866) 214-2242
Recently Viewed Plans
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:38' 0"
Depth:35' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Beach
Sloping Lot
Vacation
Craftsman
Mountain
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1106 Sq. Ft.
Upper Level: 872 Sq. Ft.
Lower Level:66 Sq. Ft.
Total: 1978 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Deck:105 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Daylight Basement-Included
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:Varies
Second Floor Ceiling:8
Maximum House Height:39' 0"
  FRAMING INFORMATION
Roof Framing:Truss
Exterior Wall Framing:2x6
  ROOF PITCH
Primary:10/12
  ROOF LOAD
Live:25
Dead:15
Wind:0
  INSULATION (R)
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:25
  ROOM INFORMATION
' " X '
  KEY FEATURES
Attached
Daylight Basement
  KEY FEATURES
Drive-under
Oversized
