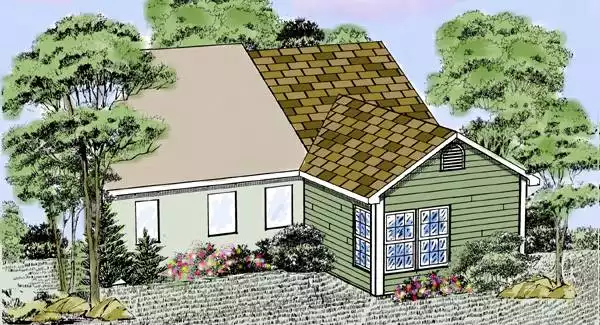

  1. Rear Rendering

    Exclusive Plan from The House Designers
    Rear Rendering
  2. First Floor Plan

    First Floor Plan

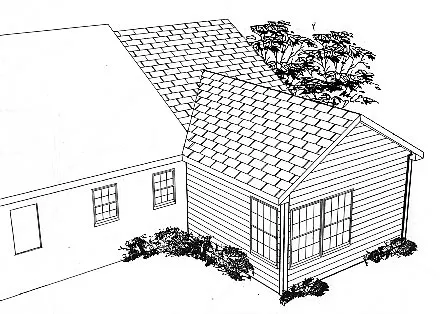

  3. Rear Rendering

    Rear Rendering
  4. Master Bedroom

    Master Bedroom
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This approximately 492 square foot remodel adds a new master suite to a common 3 bedroom ranch; it does so in a 13'-4"x 37'-8" addition, that places the new master bedroom in a rear-facing reverse gable wing. The plan locates the new master bath and a brand new hall bath in the space formerly occupied by the small rear bedroom.  Read more >
