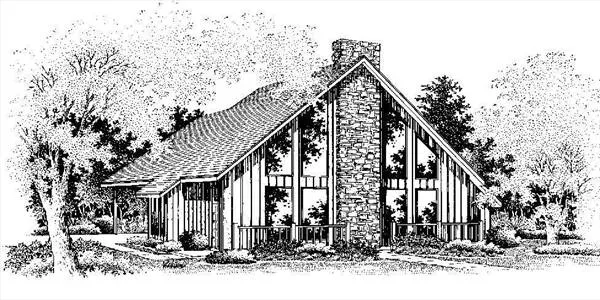

  1. Front Rendering

    Exclusive Plan from The House Designers
    Front Rendering

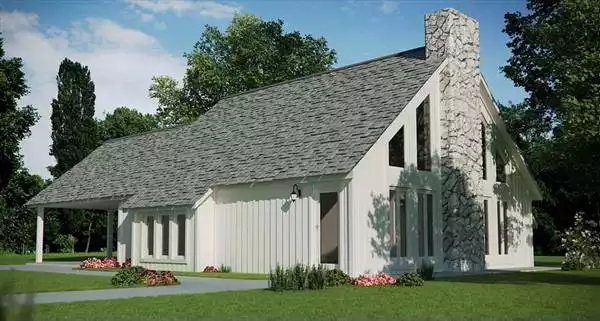

  2. Front Rendering

    Front Rendering

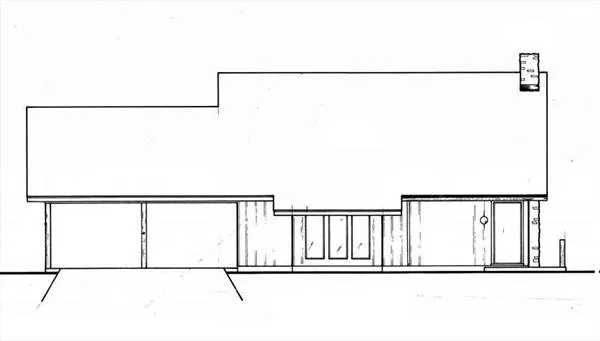

  3. Left side elevation

    Left side elevation

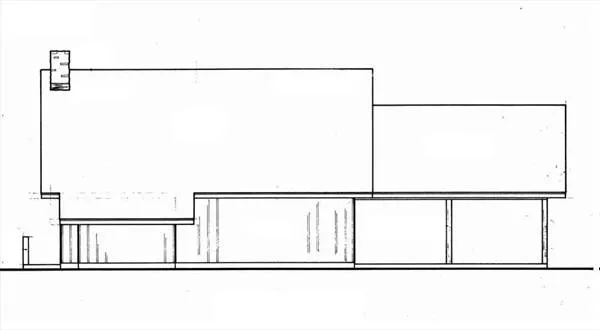

  4. Right Side Elevation

    Right Side Elevation

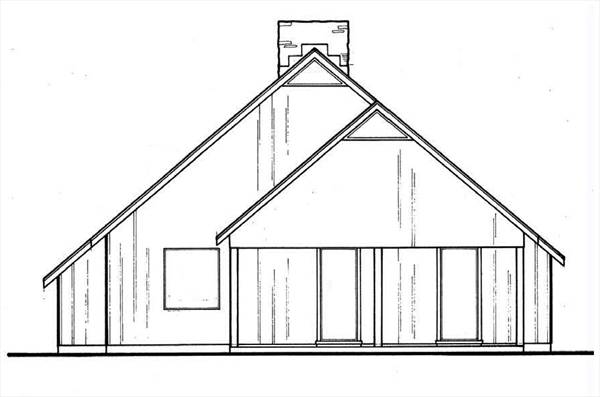

  5. Rear Elevation

    Rear Elevation

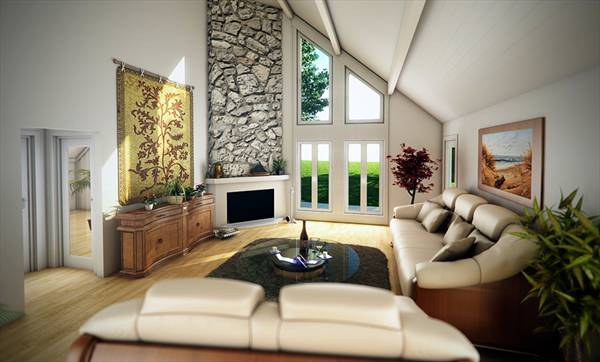

  6. Living Room

    Living Room

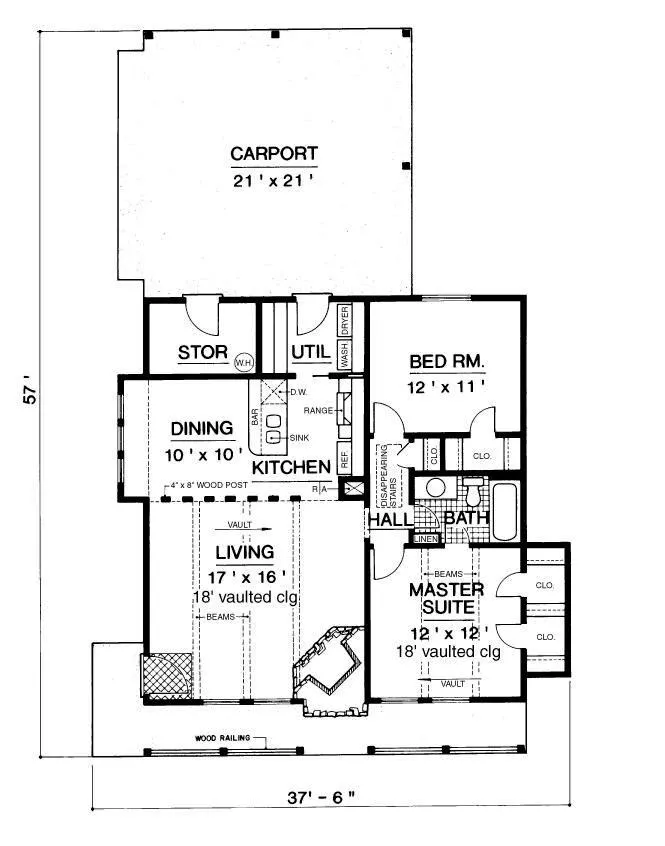

  7. Floor Plan

    Floor Plan

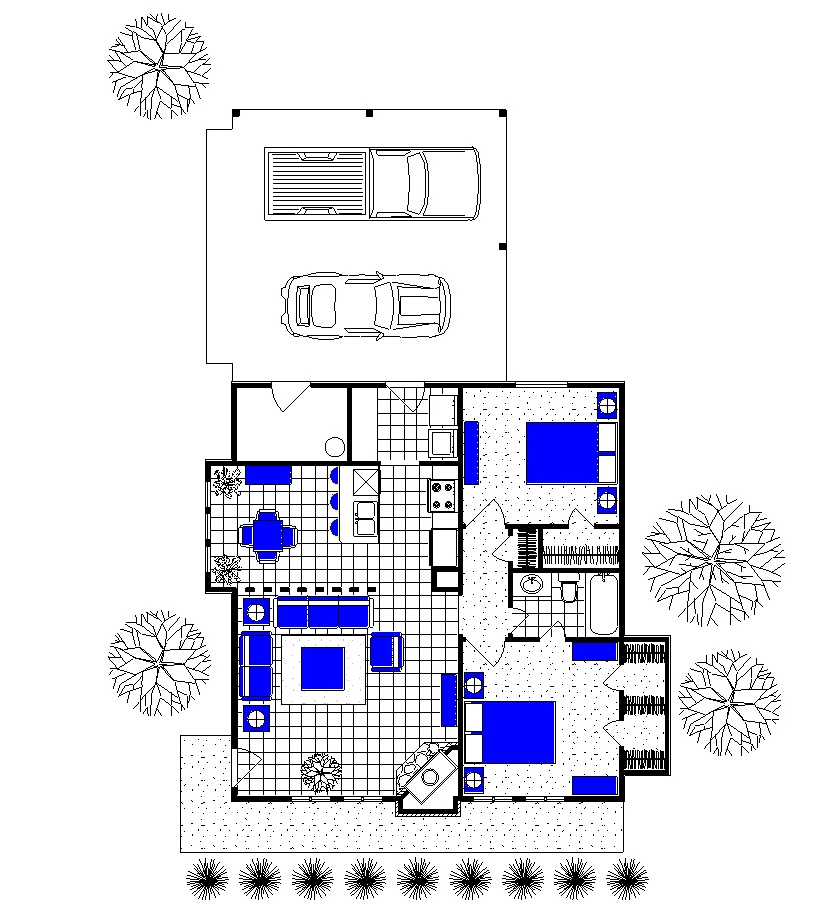

  8. Suggested Furniture Layout

    Suggested Furniture Layout
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This cedar sided rustic cottage is perfect for those that have a modest budget but desire volumes of space. The master suite and living room have vaulted ceilings supported by wood beams. Soaring glass in both areas allows for king sized views.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

Floor Plan

Floor Plan image of Mountain Chalet - 900
All images copyrighted by designer.

Suggested Furniture Layout

Suggested Furniture Layout image of Mountain Chalet - 900
All images copyrighted by designer.


Plan #2366: Mountain Chalet - 900

Heated Area: 963 Sq. Ft.
Width: 37 Ft. 6 In.    Depth: 57 Ft.
Bedrooms: 2           Bath: 1
Garage: 0
Styles: Beach, Cottage
Foundation: Concrete Slab Foundation, Optional Crawl Space Foundation, Optional Custom Foundation Design

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $530.00
 1 set  $534.00
 4 sets  $554.00
 8 sets  $614.00
 12 sets  $664.00
 Reproducible Set  $714.00
 PDF Construction Set - 1 Build PDFs Now!   $714.00
 Cad Files  $1,428.00
Foundation Options
 Concrete Slab Foundation PDFs Now! available   $0.00
 Optional Crawl Space Foundatio... PDFs Now! available   $90.00
 Optional Custom Foundation Des...  $300.00
Plan Options
 Additional Sets   $50.00
 Materials List   $70.00
 Materials List additional sets are available   $15.00
 Mirror Reverse Set   $60.00
 FULL REVERSE PLANS ON REQUEST   $125.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
37' 6"
Width:
57' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Beach
Cottage
Florida
Vacation
Lake
FACADE
Siding
NUMBERS OF ROOMS
2
Bedrooms:
1
Full Baths:
FINISHED SQUARE FOOTAGE
963 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
441 Sq. Ft.
Garage:
54 Sq. Ft.
Storage:
GARAGE
0
Garage Size:
FOUNDATION
Concrete Slab Foundation
Optional Crawl Space Foundation
Optional Custom Foundation Design
HOUSE AND CEILING HEIGHTS
sloped
First Floor Ceiling:
21' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
10:12
Primary:
INSULATION (R)
11
Exterior Wall:
0
Interior Wall:
19
Ceiling:
19
Floor:
KEY FEATURES
Carport
Crawlspace
Fireplace
Great Room
His and Hers Master Closets
KEY FEATURES
Open Floor Plan
Slab
Storage Space
Walk-in Closet
