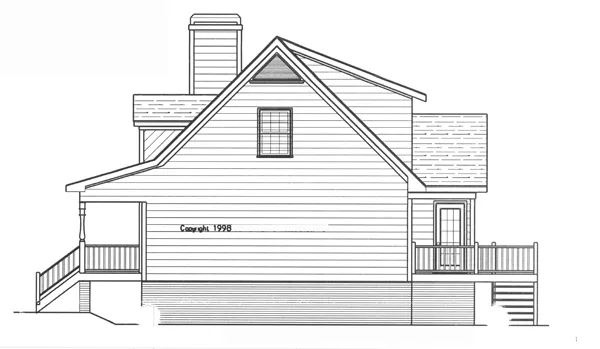

  2. Right Elevation

    Right Elevation
  3. Rear Elevation

    Rear Elevation

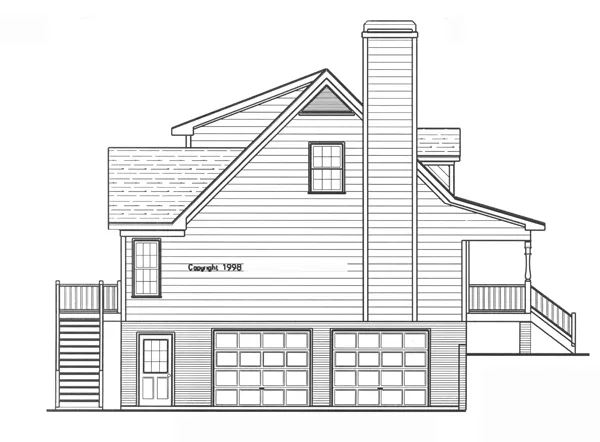

  4. Left Elevation

    Left Elevation
  5. First Floor

    First Floor
  6. Second Floor

    Second Floor
  7. Lower Level

    Lower Level
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Country charm comes to mind with this classic story and a half home plan. The full shed porch with dormers creates a look that few can resist. The open living and dining area invite you to come on in and sit a spell and the breakfast area with its cathedral ceiling creates a sunroom effect to the rear of the house.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

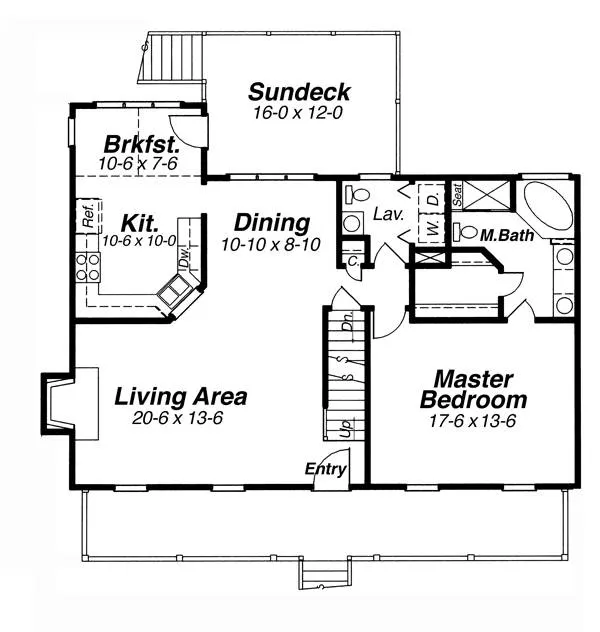

First Floor

First Floor
All images copyrighted by designer.

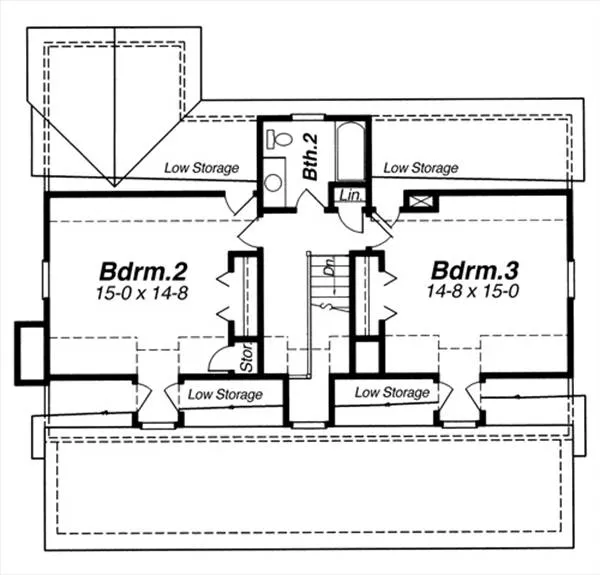

Second Floor

Second Floor
All images copyrighted by designer.

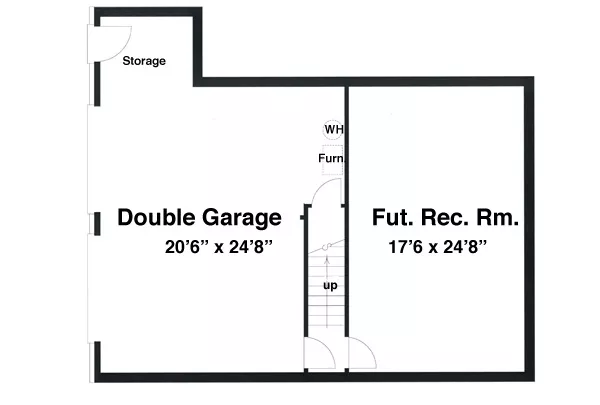

Lower Level

Lower Level
All images copyrighted by designer.


Plan #5734: Mount Vernon

ENERGY STAR Heated Area: 1,870 Sq. Ft.
First Floor: 1,159 Sq. Ft.
Second Floor: 711 Sq. Ft.
Lower Floor: 579 Sq. Ft.
Width: 44 Ft. 4 In.    Depth: 38 Ft.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cape Cod, Country
Foundation: WALK OUT BASEMENT

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET  $625.00
 Five Sets of Plans  $700.00
 PDF File PDFs Now!   $975.00
 Vellums  $975.00
Foundation Options
 WALK OUT BASEMENT  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Materials List   $60.00
 Right Read Reverse   $250.00
 New Foundation Type   $300.00
 Conversion to 2 x 6 Walls   $200.00
 Plan Modifications   $400.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
44' 4"
Width:
38' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Cape Cod
Mountain
Country
Farm House
Vacation
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,159 Sq. Ft.
Main Level:
711 Sq. Ft.
Upper Level:
579 Sq. Ft.
Lower Level:
1,870 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
520 Sq. Ft.
Garage:
60 Sq. Ft.
Storage:
200 Sq. Ft.
Porch:
192 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
2
Garage Size:
FOUNDATION
WALK OUT BASEMENT
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
8
Second Floor Ceiling:
25' 7"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
5/12
Secondary:
12/12
Dormer:
3/12
Porch:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Covered Front Porch
Deck
Dining Room
Double Vanity Sink
Drive-under
Fireplace
Front Porch
Great Room
KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Walk-in Closet
Walkout Basement
