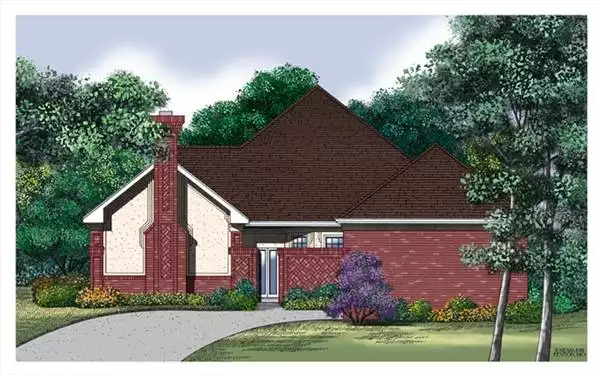

  1. Front Rendering

    Front Rendering

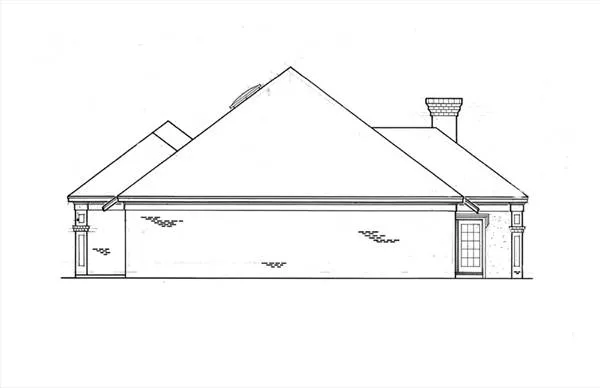

  2. Left side elevation

    Left side elevation

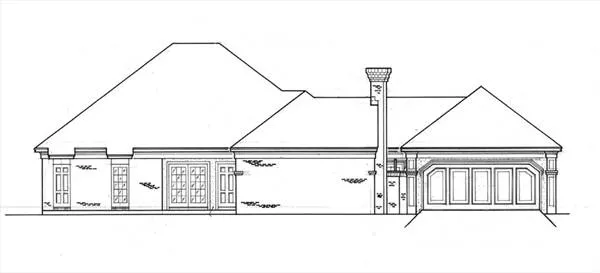

  3. Rear Elevation

    Rear Elevation

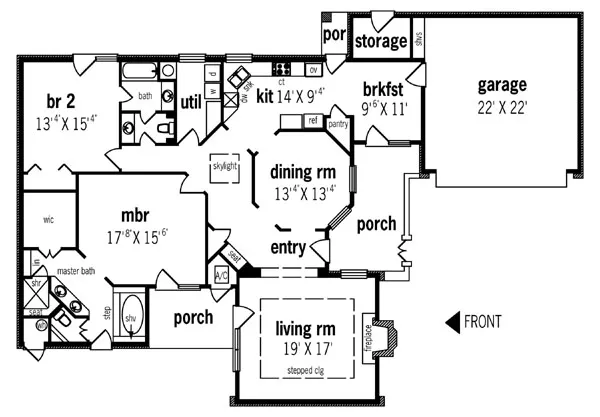

  4. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
A private courtyard entry and an unusually shaped dining room are just two of many charming features to this low maintenance home. The master suite bath includes the most popular amenities including a walk-in closet, his and her vanities, soaking tub, separate shower and a private toilet area.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #6861: Monterey - 2013

Heated Area: 2,041 Sq. Ft.
First Floor: 2,041 Sq. Ft.
Width: 54 Ft.    Depth: 78 Ft.
Bedrooms: 2           Bath: 2
Garage: 2
Styles: Modern, Cottage
Foundation: Concrete Slab Foundation, Optional Custom Foundation Design

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $715.00
 1 set  $719.00
 4 sets  $739.00
 8 sets  $779.00
 12 sets  $829.00
 Reproducible Set  $869.00
 PDF Construction Set - 1 Build PDFs Now!   $869.00
 Cad Files  $1,738.00
Foundation Options
 Concrete Slab Foundation PDFs Now! available   $0.00
 Optional Custom Foundation Des...  $400.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse Set   $60.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
54' 0"
Width:
78' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Modern
Cottage
European
NUMBERS OF ROOMS
2
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
2,041 Sq. Ft.
Main Level:
2,041 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
484 Sq. Ft.
Garage:
51 Sq. Ft.
Storage:
161 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Concrete Slab Foundation
Optional Custom Foundation Design
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
22' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
9:12
Primary:
INSULATION (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
0
Floor:
KEY FEATURES
Attached
KEY FEATURES
Rear Porch
