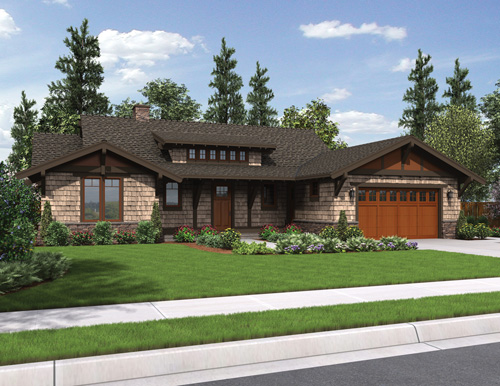

  1. Front Rendering

  2. South Elevation

  3. Rear Rendering

  4. Main FLoor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Inspired by the historic works of Pasadena Architects, Henry and Charles Greene, this traditional Craftsman plan has all the warmth and detail of a period Arts and Crafts home, while incorporating the latest in efficient design and sustainability practices.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

Main FLoor Plan

Main FLoor Plan image of Merriwether
All images copyrighted by designer.


Plan #3153: Merriwether

ENERGY STAR Heated Area: 1,988 Sq. Ft.
First Floor: 1,988 Sq. Ft.
Width: 64 Ft.    Depth: 54 Ft.
Bedrooms: 3           Bath: 3
Garage: 2
Styles: Ranch, Cottage
Foundation: Crawlspace, Slab
Available Packages
 Basic Package  $750.00
 Construction Package  $850.00
 Modification Package: PDF  $980.00
 Modification Package: CAD  $1,670.00
Foundation Options
 Crawlspace  $0.00
 Slab  $95.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $40.00
 Full Reverse Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
64' 0"
Width:
54' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Ranch
Craftsman
Mountain
Pet Lovers
Vacation
Texas
North Carolina
NUMBERS OF ROOMS
3
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
1,988 Sq. Ft.
Main Level:
1,988 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
508 Sq. Ft.
Garage:
96 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Crawlspace
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
20' 2"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
8/12
Primary:
5/12
Secondary:
3/12
Gable:
ROOF LOAD
25
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Guest Suite
KEY FEATURES
Home Office
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
Open Floor Plan
Rear Porch
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
