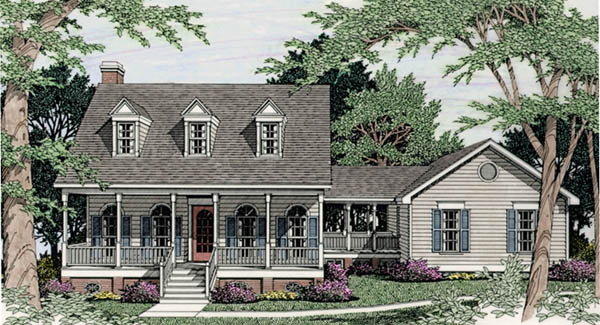

  1. Front Rendering

    Front Rendering
  2. Front Exterior

    Front Exterior

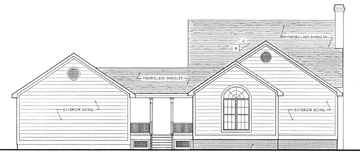

  3. Rear Exterior

    Rear Exterior

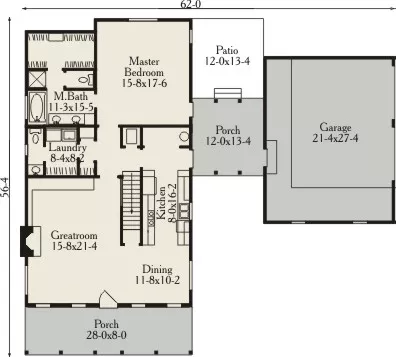

  4. First Floor Plan

    First Floor Plan
  5. Second Floor Plan

    Second Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The open living room is warmed by a cozy wood burning fireplace adjacent to a built-in corner bookcase and cabinet area. A galley kitchen with ample counter space is close by. The large master suite completes the rear of the home.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.


Plan #3471: Lexington

Heated Area: 1,887 Sq. Ft.
First Floor: 1,330 Sq. Ft.
Second Floor: 557 Sq. Ft.
Width: 62 Ft.    Depth: 56 Ft. 4 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cape Cod, Cottage
Foundation: Basement, Crawl Space, Slab
Available Packages
 Five Sets  $789.00
 Eight Sets  $846.00
 PDF File  $1,027.00
 CAD Files  $1,849.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
62' 0"
Width:
56' 4"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Cape Cod
Cottage
FACADE
Siding
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,330 Sq. Ft.
Main Level:
557 Sq. Ft.
Upper Level:
1,887 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
616 Sq. Ft.
Garage:
380 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
22' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
ROOM INFORMATION
6' 8" X 8' 3"
Bath 1
10' 0" X 13' 2"
Bedroom
10' 0" X 13' 2"
Bedroom
11' 8" X 10' 2"
Dining
28' 0" X 8' 0"
Front Porch
21' 4" X 27' 4"
Garage
15' 8" X 21' 4"
Greatroom
2' 8" X 8' 2"
Half Bath
8' 0" X 16' 2"
Kitchen
8' 4" X 8' 2"
Laundry
11' 3" X 15' 5"
Master Bath
15' 8" X 17' 6"
Master Bedroom
12' 0" X 13' 4"
Patio
12' 0" X 13' 4"
Porch
7' 4" X 10' 6"
Sitting Area
KEY FEATURES
Basement
Breezeway
Covered Front Porch
Crawlspace
Detached
Double Vanity Sink
Fireplace
Great Room
Laundry 1st Fl
Master Bdrm Main Floor
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Unfinished Space
Walk-in Closet
