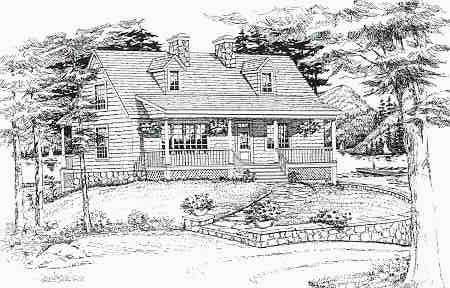

LAKEVIEW House Plan

All images copyrighted by designer

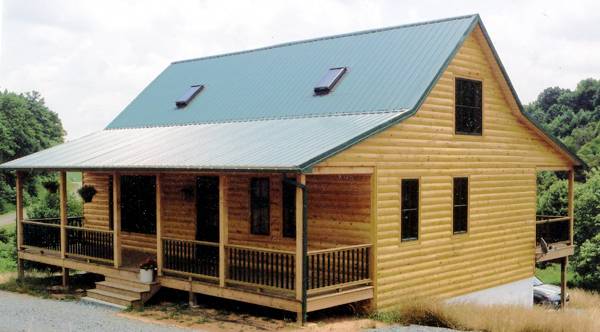

Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
read our customer stories and testimonials
"We love our new home and the plan was exactly what we were looking for. Our builder couldn't believe we got the plans off the internet. It had more construction details than most plans he had built from. We really love our new place and recommend building a new house to anyone considering it."
Customer Review:
— Tammy Davis of Harrisburgh, Texas

First Floor Plan

First Floor Plan image of LAKEVIEW House Plan
All images copyrighted by designer.

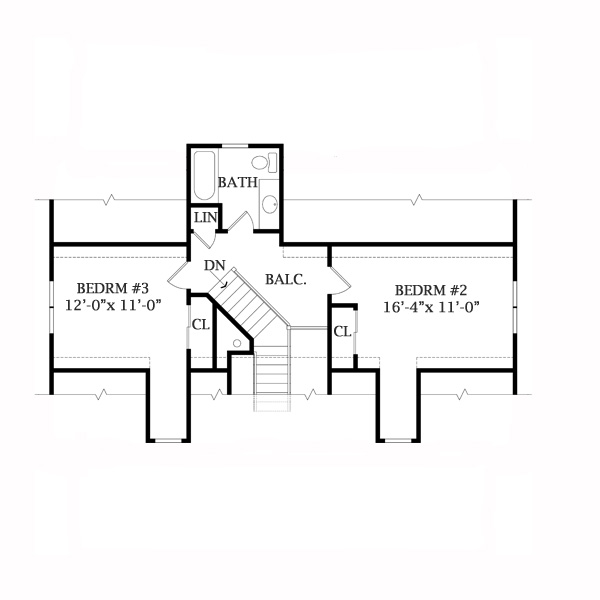

Second Floor Plan

Second Floor Plan image of LAKEVIEW House Plan
All images copyrighted by designer.

Optional Walk-out Basement Plan

Optional Walk-out Basement Plan image of LAKEVIEW House Plan
All images copyrighted by designer.





Plan: THD-JAA-2804
Heated Area: 1704 Sq. Ft.
First Floor: 1134 Sq. Ft.
Second Floor: 570 Sq. Ft.
Lower Floor: 1704 Sq. Ft.
Width: 42 Ft.    Depth: 45 Ft.
Bedrooms: 3           Bath: 2.1
Garage: 2
Styles: Country, Beach
Foundation: Basement, Crawl Space, ICF - Basement (Insul. Conc. Forms), ICF - Slab (Insul. Conc Forms), Slab Foundation, Walk-out Basement
Designer Notes:
Learn more about the amenities and key features of LAKEVIEW House Plan.


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Review Set with Material List  $179.00
 PDF BID SET PDFs Now!   $575.00
 Upgrade From a Review Set  $576.00
 Four Set Package  $675.00
 Eight Set Package  $755.00
 PDF Construction Set - Single Use PDFs Now!   $845.00
 Reproducible Vellum Set  $870.00
 CAD FILE - single use  $1,295.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
 ICF - Slab (Insul. Conc Forms)  $100.00
 ICF - Basement (Insul. Conc. F...  $150.00
 Walk-out Basement PDFs Now! available   $175.00
Plan Options
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
 Full Reverse Plans If available   $350.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:42' 0"
Depth:45' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Vacation
Country
Mountain
Beach
Concrete
Cottage
Farm House
Lake
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1134 Sq. Ft.
Upper Level: 570 Sq. Ft.
Lower Level:1704 Sq. Ft.
Total: 1704 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:516 Sq. Ft.
Porch:592 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Basement
Crawl Space
ICF - Basement (Insul. Conc. Forms)
ICF - Slab (Insul. Conc Forms)
Slab Foundation
Walk-out Basement
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9.4
Second Floor Ceiling:8.1
Maximum House Height:23' 6"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:11: 12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
2 & 1/2 Baths
2 Story Volume
Attached
Built-Ins
Country Kitchen
Covered Front Porch
Covered Rear Porch
Daylight Basement
Double Vanity Sink
Drive Under Garage
  KEY FEATURES
Drive-under
Fireplace
Great Room
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Peninsula / Eating Bar
Separate Tub and Shower
Vaulted Foyer
Walk-in Closet
