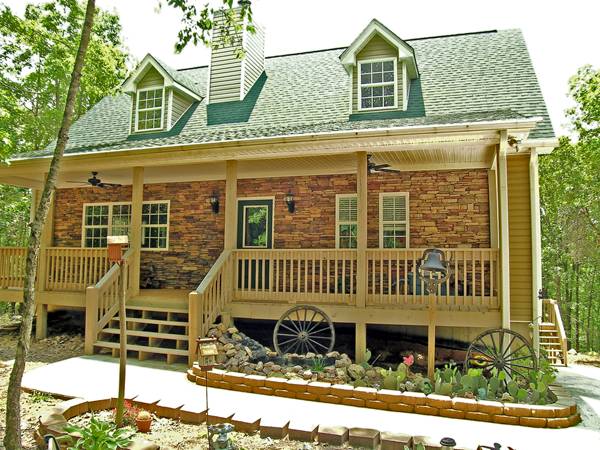

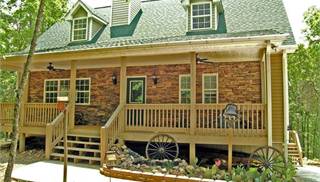

  1. Front Photo

    Front Photo

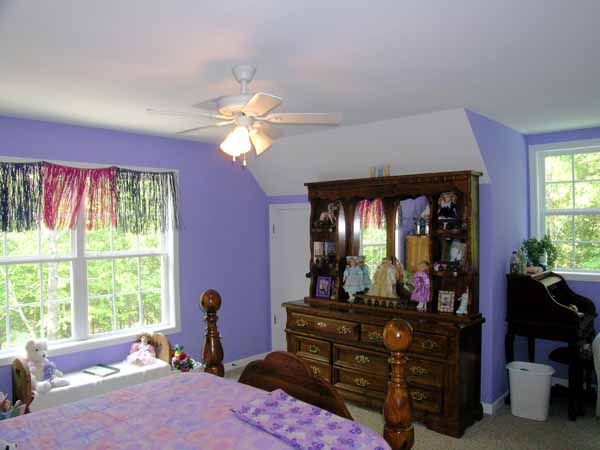

  2. Bedroom

    Bedroom

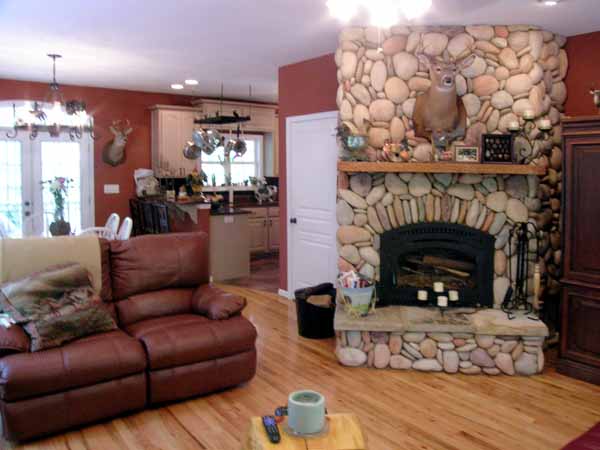

  3. Great Room

    Great Room

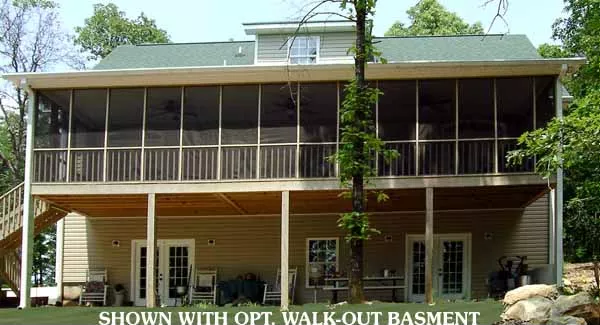

  4. Rear Photo

    Rear Photo

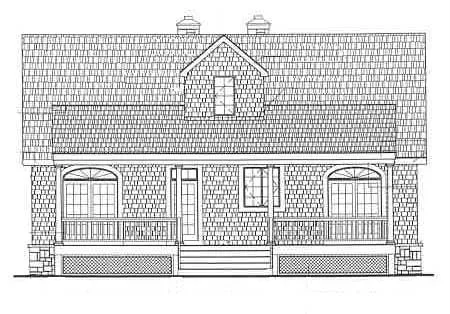

  5. Rear Elevation

    Rear Elevation
  6. Kitchen

    Kitchen

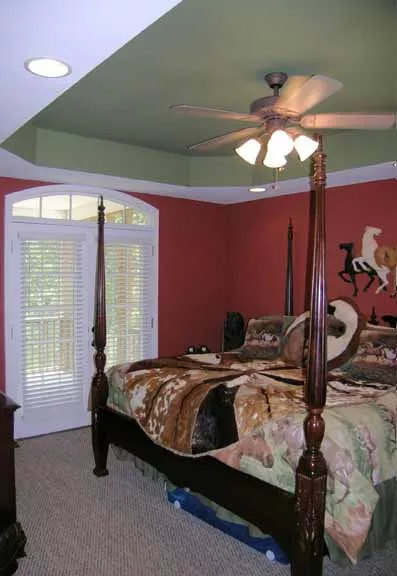

  7. Master Bedroom

    Master Bedroom

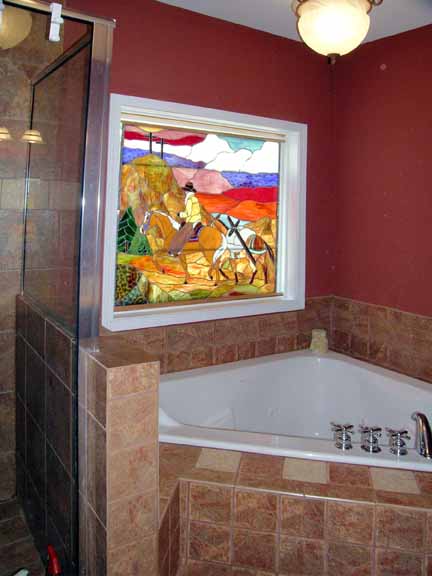

  8. Master Bath

    Master Bath
  9. First Floor Plan

    First Floor Plan
  10. Second Floor Plan

    Second Floor Plan
  11. Optional Walk-out Basement Plan

    Optional Walk-out Basement Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This photographed version of our all time favorite, plan number 2804 was built with a rustic front with stone and wood railing. It is the exact same plan though as 2804 and is testimony to the affordability and practicality of this lovely home.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

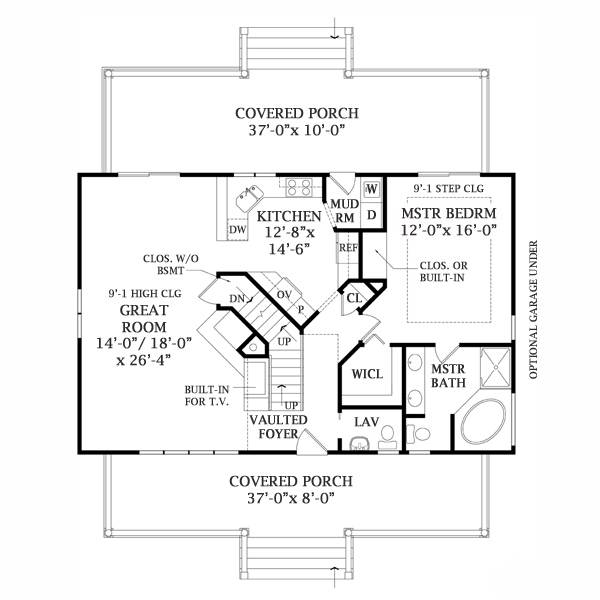

First Floor Plan

First Floor Plan
All images copyrighted by designer.

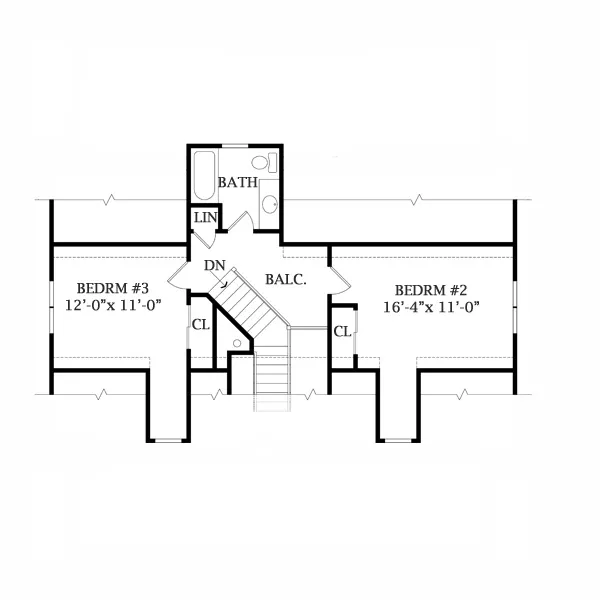

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.

Optional Walk-out Basement Plan

Optional Walk-out Basement Plan
All images copyrighted by designer.


Plan #7779: LAKEVIEW 2

Heated Area: 1,704 Sq. Ft.
First Floor: 1,134 Sq. Ft.
Second Floor: 570 Sq. Ft.
Width: 42 Ft.    Depth: 45 Ft.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cottage, Country
Foundation: Basement, Crawl Space, ICF - Basement (Insul. Conc. Forms), ICF - Slab (Insul. Conc Forms), Slab Foundation, Walk-out Basement

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $595.00
 PDF Construction Set - Single Use PDFs Now!   $795.00
 Five Set Package  $795.00
 Reproducible Vellum Set  $825.00
 Eight Set Package  $875.00
 CAD FILE - single use  $1,595.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
 ICF - Slab (Insul. Conc Forms)  $100.00
 ICF - Basement (Insul. Conc. F...  $150.00
 Walk-out Basement PDFs Now! available   $175.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Set   $50.00
 Material List if available   $85.00
 Mirror Reverse   $50.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
 Full Reverse Plans If available   $350.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
42' 0"
Width:
45' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Cottage
Country
Farm House
Vacation
FACADE
OwnersChoice
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,134 Sq. Ft.
Main Level:
570 Sq. Ft.
Upper Level:
1,704 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
516 Sq. Ft.
Garage:
GARAGE
Under
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
ICF - Basement (Insul. Conc. Forms)
ICF - Slab (Insul. Conc Forms)
Slab Foundation
Walk-out Basement
HOUSE AND CEILING HEIGHTS
9.4
First Floor Ceiling:
8.1
Second Floor Ceiling:
23' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
11:12
Primary:
ROOF LOAD
30
Live:
10
Dead:
90
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
2 Story Volume
Attached
Covered Front Porch
Covered Rear Porch
Double Vanity Sink
Drive-under
Fireplace
Great Room
KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Mud Room
Peninsula / Eating Bar
Separate Tub and Shower
Walk-in Closet
