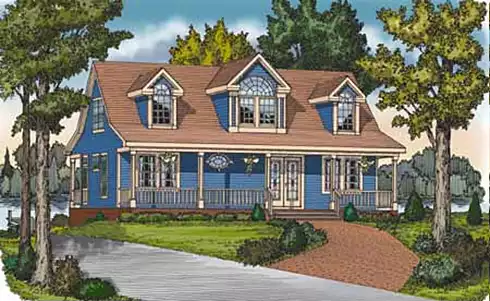

  1. Front Rendering

    Front Rendering

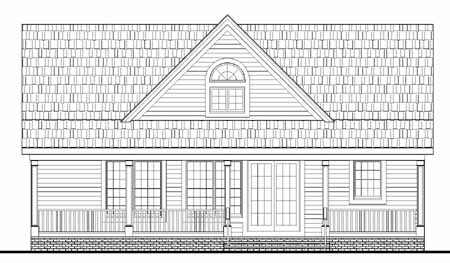

  2. Rear Elevation

    Rear Elevation

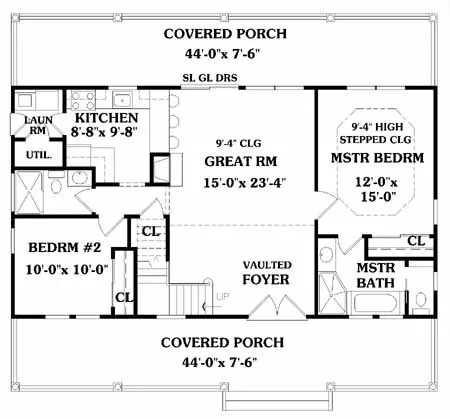

  3. First Floor Plan

    First Floor Plan

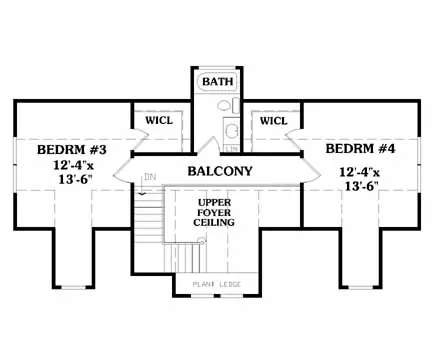

  4. Optional Second Floor

    Optional Second Floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This delightfully charming, country style expandable cottage was designed to serve either as a vacation home or starter home. Whether set on a lakeside lot, mountain slope, or suburban lot, this is a design that maximizes liveability within its modest footprint.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.

Optional Second Floor

Optional Second Floor
All images copyrighted by designer.


Plan #5353: LAKESIDE

Heated Area: 1,056 Sq. Ft.
First Floor: 1,056 Sq. Ft.
Bonus: 617 Sq. Ft.
Width: 44 Ft.    Depth: 39 Ft.
Bedrooms: 4           Bath: 3
Styles: Cottage, Farm House
Foundation: Basement, Crawl Space, Slab Foundation

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $650.00
 PDF Construction Set - Single Use PDFs Now!   $875.00
 Five Set Package  $875.00
 Reproducible Vellum Set  $905.00
 Eight Set Package  $955.00
 CAD FILE - single use  $1,695.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Set   $50.00
 Material List if available   $85.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
44' 0"
Width:
39' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Vacation
Cottage
Farm House
Florida
Mountain
Country
Texas
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
FINISHED SQUARE FOOTAGE
1,056 Sq. Ft.
Main Level:
1,056 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
660 Sq. Ft.
Porch:
617 Sq. Ft.
Bonus Room:
GARAGE
0
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab Foundation
HOUSE AND CEILING HEIGHTS
9'-4"
First Floor Ceiling:
9'-0"
Second Floor Ceiling:
27' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12
Primary:
ROOF LOAD
30
Live:
7
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Fireplace
Great Room
Laundry 1st Fl
Loft / Balcony
KEY FEATURES
Master Bdrm Main Floor
None
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Split Bedrooms
Unfinished Space
Vaulted Ceilings
