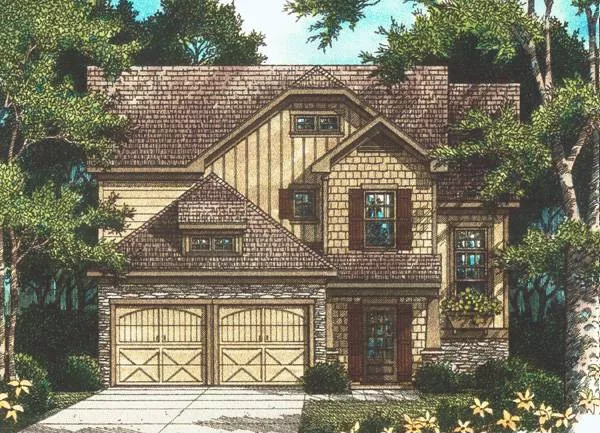

  1. Rendering

    Exclusive Plan from The House Designers
    Rendering

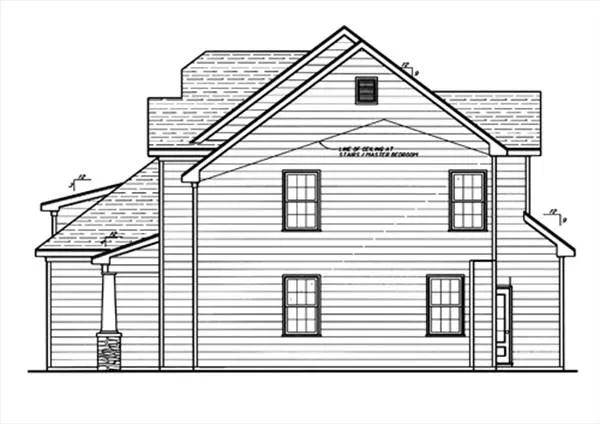

  2. Right Elevation

    Right Elevation

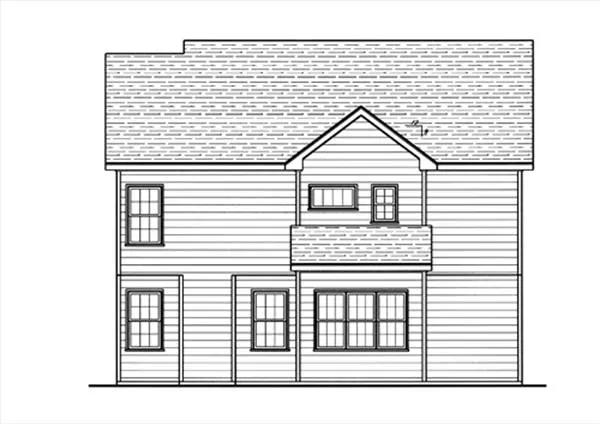

  3. Rear Elevation

    Rear Elevation

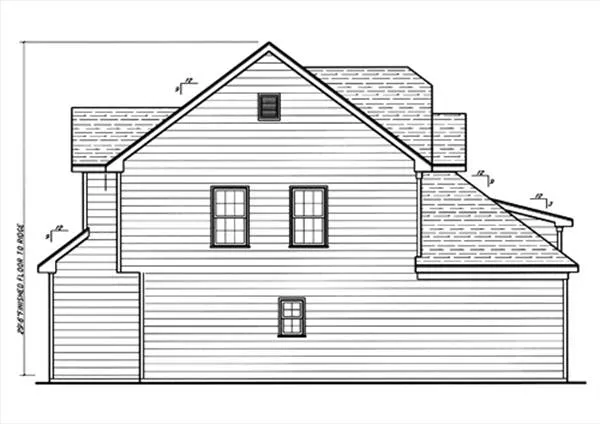

  4. Left Elevation

    Left Elevation

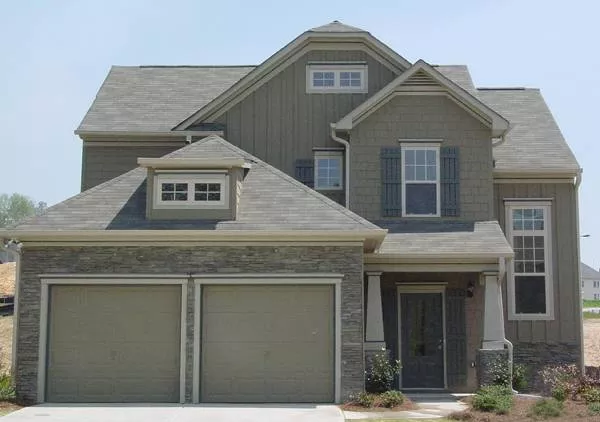

  5. Front Photo

    Front Photo
  6. First Floor

    First Floor

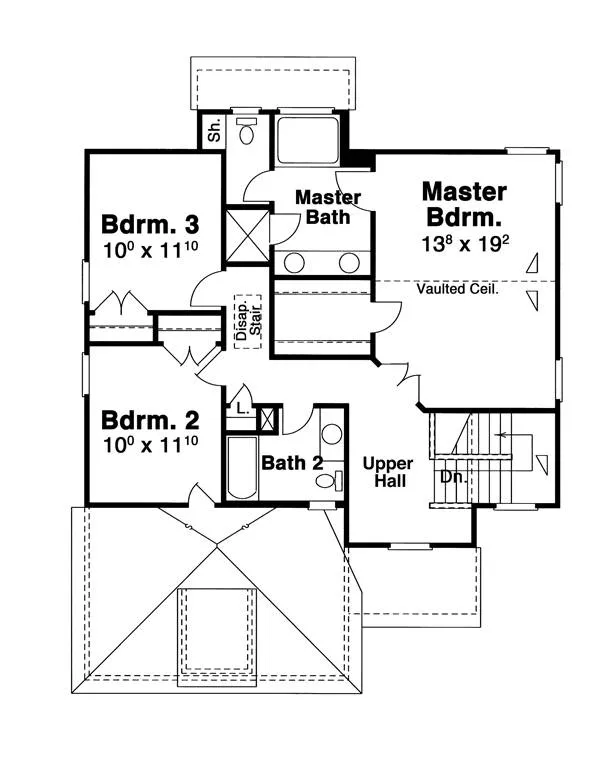

  7. Second Floor

    Second Floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The open floor plan helps maximize the space in the modest two story plan. There is even room for a computer station outside the kitchen providing the perfect workstation for mom. The switch back staircase provides space for a large window to flood the foyer and upper landing with light.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor

First Floor
All images copyrighted by designer.

Second Floor

Second Floor
All images copyrighted by designer.


Plan #8694: KINCAID

ENERGY STAR Heated Area: 1,903 Sq. Ft.
First Floor: 869 Sq. Ft.
Second Floor: 1,034 Sq. Ft.
Width: 36 Ft.    Depth: 46 Ft.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cottage, Craftsman
Foundation: Slab, if shown as a standard option

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET  $625.00
 PDF THD Exclusive Product PDFs Now!   $975.00
Foundation Options
 Slab, if shown as a standard o...  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Right Read Reverse   $250.00
 New Foundation Type   $300.00
 Conversion to 2 x 6 Walls   $200.00
 Prints size 11x17   $10.00
 Full Size Prints   $25.00
 Plan Modifications   $400.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
36' 0"
Width:
46' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Cottage
Craftsman
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
869 Sq. Ft.
Main Level:
1,034 Sq. Ft.
Upper Level:
1,903 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
415 Sq. Ft.
Garage:
39 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab
if shown as a standard option
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
27' 2"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
3/12
Dormer:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Covered Front Porch
Double Vanity Sink
Fireplace
Foyer
Great Room
Kitchen Island
Laundry 1st Fl
Loft / Balcony
Master Bdrm Upstairs
KEY FEATURES
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
