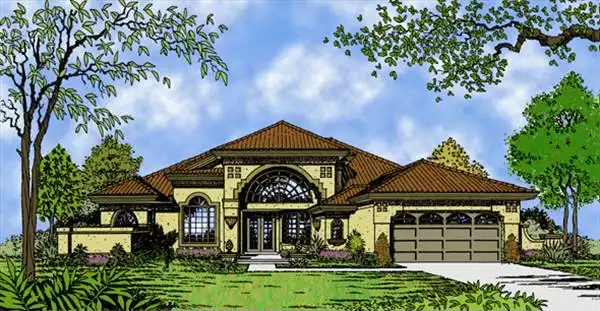

  1. Front Rendering

    Front Rendering

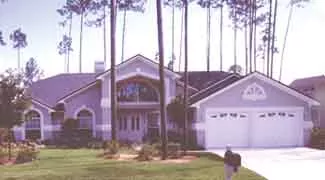

  2. Front Exterior

    Front Exterior

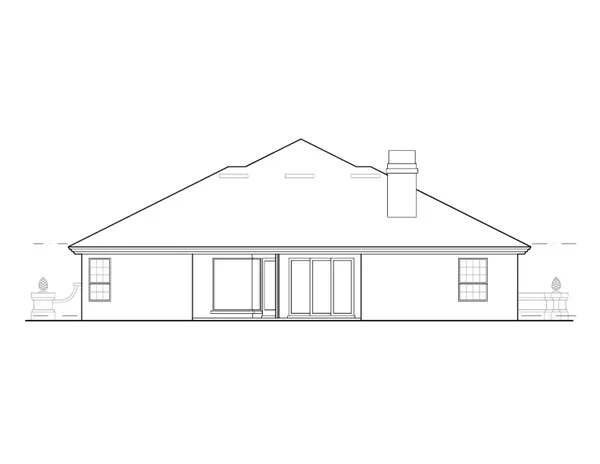

  3. Rear Elevation

    Rear Elevation

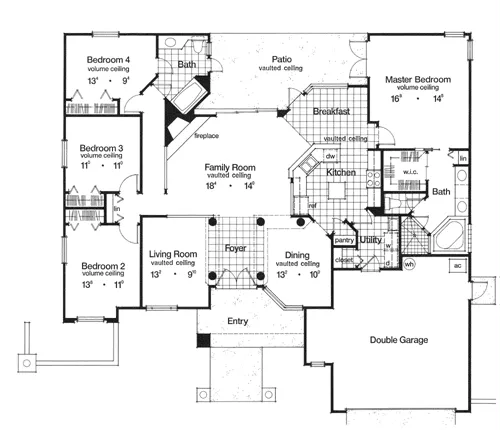

  4. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The excitement begins the moment you see the elevation of this home. The grand palladian window showers lighted brilliance both inside and out. Gracious columns adorn the foyer, which separates, in traditional fashion, the living and dining rooms.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #3986: Keystone

Heated Area: 2,060 Sq. Ft.
First Floor: 2,060 Sq. Ft.
Width: 60 Ft. 4 In.    Depth: 56 Ft.
Bedrooms: 4           Bath: 2
Garage: 2
Styles: Contemporary, Beach
Foundation: Slab
Available Packages
 PDF Bid Set!  $600.00
 FIVE SETS OF BONDPRINTS  $840.00
 REPRODUCIBLES  $1,030.00
 PDF File Package  $1,030.00
 CAD FILES  $2,060.00
Foundation Options
 Slab  $0.00
Plan Options
 Additional sets   $45.00
 Mirror Reverse   $15.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
60' 4"
Width:
56' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Contemporary
Beach
Mediterranean
Florida
Spanish
European
FACADE
Stucco
NUMBERS OF ROOMS
4
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
2,060 Sq. Ft.
Main Level:
2,060 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
478 Sq. Ft.
Garage:
125 Sq. Ft.
Porch:
238 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
24' 0"
Maximum House Height:
FRAMING INFORMATION
Truss
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
6:12
Primary:
INSULATION (R)
11
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
ROOM INFORMATION
11' 0" X 13' 8"
Bedroom 2
11' 0" X 11' 0"
Bedroom 3
13' 4" X 9' 4"
Bedroom 4
10' 0" X 13' 2"
Dining Room
18' 4" X 14' 6"
Family Room
13' 0" X 10' 0"
Kitchen
6' 0" X 6' 0"
Laundry Room
9' 10" X 13' 2"
Living Room
12' 6" X 14' 8"
Master Bath
14' 8" X 16' 8"
Master Bedroom
12' 6" X 9' 0"
Nook
KEY FEATURES
2 Car Garage / Front Load
2 Full Baths
2 Story Volume
4 Bedrooms
Arches
Attached
Bedrooms - Volume Ceilings 10'
Built - In Plant Shelves
Built - In Vanity Master Bath
Combination Kitchen / Family Room
Covered Front Porch
Covered Patio Vaulted
Covered Rear Porch
Decorative Interior Columns
Dining Room
Double Vanity Sink
Family Room
Family Room Vaulted
Fireplace
Formal Dining Room Vaulted Ceiling
Formal LR
Foyer
Front Porch
Impressive Columned Entry
Kitchen / Nook - Vaulted Ceilings
Kitchen Island
Laundry 1st Fl
Linen Closets
Master Bdrm Main Floor
Master Bedroom Volume Ceilling
Mud Room
Nook / Breakfast Area
Open Floor Plan
Optional - Ironing Board - Laundry Room
Optional - Skylites Patio
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
