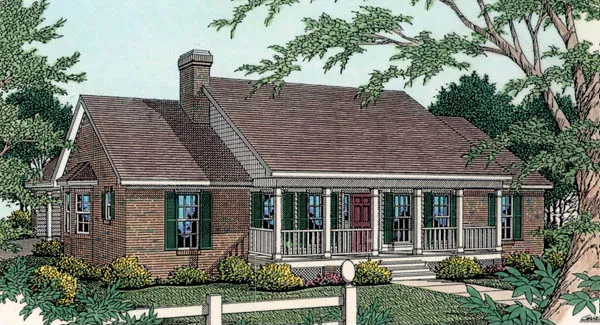

  1. Front Rendering

    Front Rendering
  2. Front Exterior

    Front Exterior

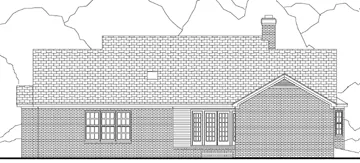

  3. Rear Exterior

    Rear Exterior

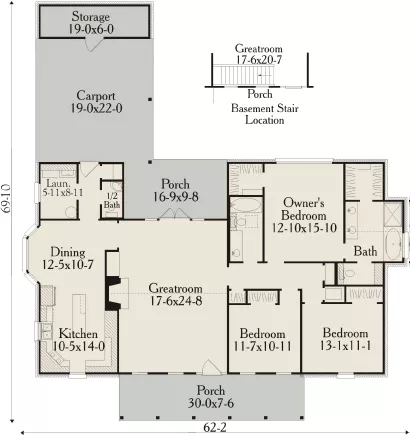

  4. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The greatroom includes a cathedral ceiling, a warming fireplace and built-in shelves. In the master suite beauty is added from a wall of windows plus a vaulted master bath. The hall bath is spacious and offers a skylight for natural light.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #3527: Kendall

Heated Area: 1,875 Sq. Ft.
First Floor: 1,875 Sq. Ft.
Width: 62 Ft. 2 In.    Depth: 69 Ft. 10 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Country, Southern
Foundation: Basement, Crawl Space, Slab
Available Packages
 Five Sets  $789.00
 Eight Sets  $846.00
 PDF File  $1,027.00
 CAD Files  $1,849.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
62' 2"
Width:
69' 10"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Southern
FACADE
Brick/Siding
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,875 Sq. Ft.
Main Level:
1,875 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
532 Sq. Ft.
Garage:
382 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
21' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
7/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
ROOM INFORMATION
3' 4" X 6' 0"
1/2 Bath
5' 2" X 10' 6"
Bath 1
11' 7" X 10' 11"
Bedroom
13' 1" X 11' 1"
Bedroom
4' 8" X 2' 0"
Bedroom Closet
6' 0" X 2' 6"
Bedroom Closet
19' 0" X 22' 0"
Carport
12' 5" X 10' 7"
Dining
30' 0" X 7' 6"
Front Porch
10' 5" X 14' 0"
Kitchen
2' 0" X 8' 0"
Kitchen Island
5' 11" X 8' 11"
Laundry
9' 4" X 13' 6"
Master Bath
12' 10" X 15' 10"
Master Bedroom
6' 0" X 6' 0"
Master Closet
5' 4" X 5' 2"
Master Closet
16' 9" X 9' 8"
Rear Porch
19' 0" X 6' 0"
Storage
KEY FEATURES
Attached
Basement
Carport
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Family Room
Fireplace
Great Room
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Slab
Storage Space
Vaulted Ceilings
Walk-in Closet
