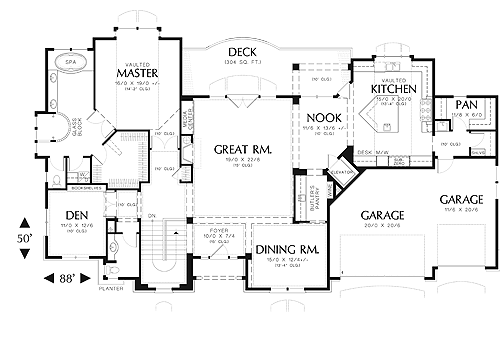

First Floor Plan

First Floor Plan image of Jorgensen House Plan
All images copyrighted by designer.

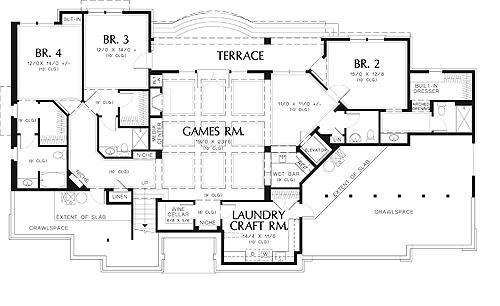

Lower Level

Lower Level image of Jorgensen House Plan
All images copyrighted by designer.


House Plan: THD-4616

Jorgensen House Plan

Heated Area: 5,042 Sq. Ft.
First Floor: 2,602 Sq. Ft.
Lower Floor: 2,440 Sq. Ft.
Width: 88 Ft.    Depth: 50 Ft.
Bedrooms: 4           Bath: 4.5
Garage: 3
Styles: European, French Country
Foundation: Daylight Basement-Included, Slab Foundation-Included
Designer Notes:
Take advantage of views and make best use of a hillside lot by selecting this impressive home reminiscent of a French country estate. Not just another pretty face, this design offers a floor plan filled with amenities and special appointments.
Available Packages
 Basic Package  $1,415.00
 Construction Package  $1,515.00
 Modification Package: PDF  $2,015.00
 Modification Package: CAD  $2,760.00
Foundation Options
 Daylight Basement-Included  $0.00
 Slab Foundation-Included  $0.00
Plan Options
 Additional Sets   $40.00
 Full Reverse Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:88' 0"
Depth:50' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
European
French Country
Pet Lovers
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:4
Half Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:2,602 Sq. Ft.
Lower Level:2,440 Sq. Ft.
Total: 5,042 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:647 Sq. Ft.
Deck:304 Sq. Ft.
  GARAGE
Garage Location:Front
Garage Size:3
  FOUNDATION
Daylight Basement-Included
Slab Foundation-Included
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:Varies
Second Floor Ceiling:10
Maximum House Height:29' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x6
  ROOF PITCH
Primary:10/12
  ROOF LOAD
Live:25
Dead:15
Wind:0
  INSULATION (R)
Per IRC Climate Zones
  KEY FEATURES
2 Master Suites
2 Story Volume
Attached
Butler's Pantry
Covered Rear Porch
Daylight Basement
Deck
Deck off the nook area
Dining Room

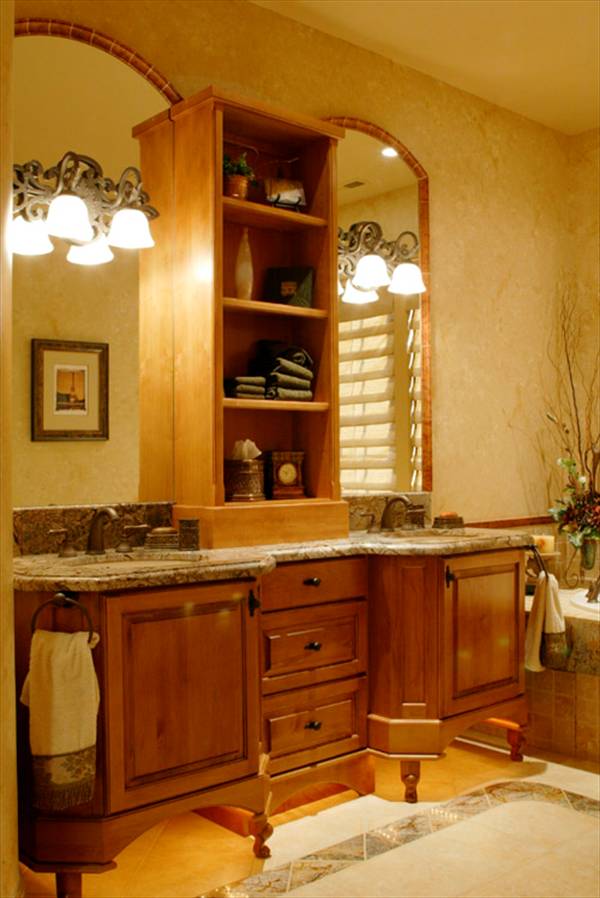

Double Vanity Sink
Elevator
Fireplace
Foyer

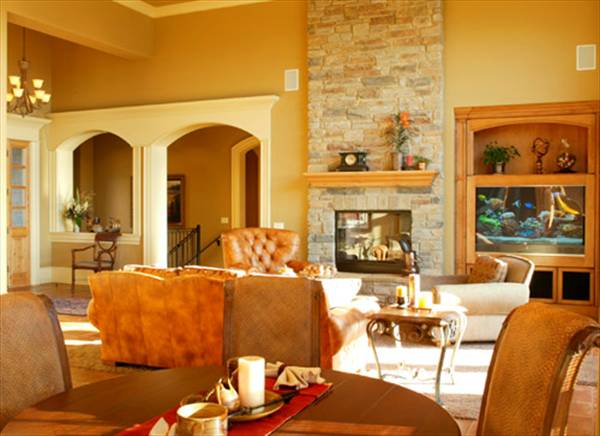

Great Room
Guest Suite
Home Office
In-law Suite

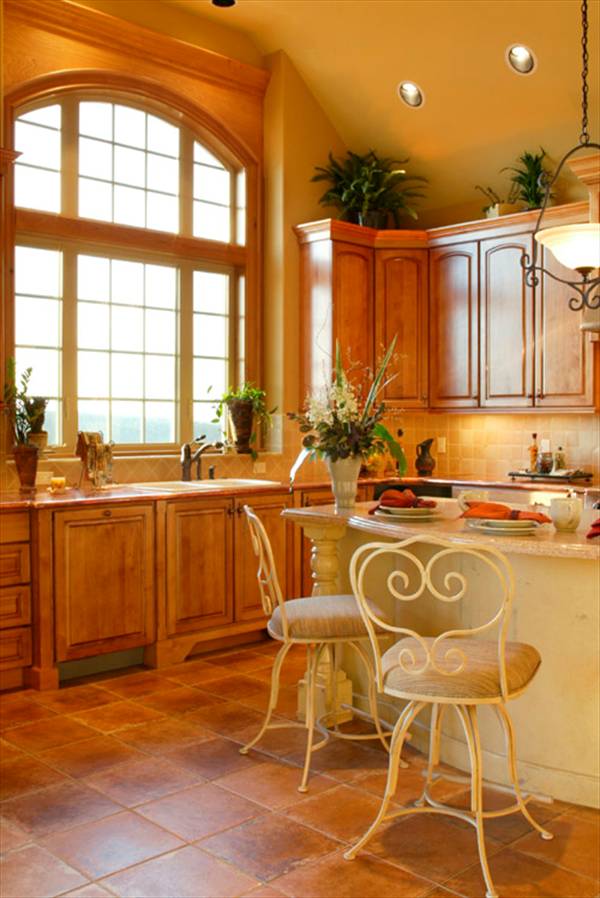

Kitchen Island
  KEY FEATURES
Laundry 1st Fl
Laundry/Craft Rm on Lower Floor
Library/Media Rm
Master Bdrm Main Floor

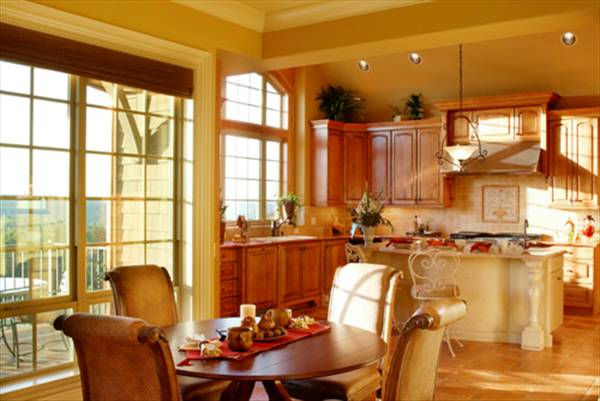

Nook / Breakfast Area
Open Floor Plan

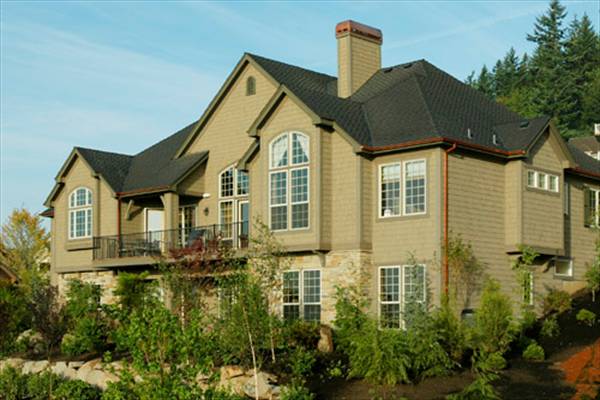

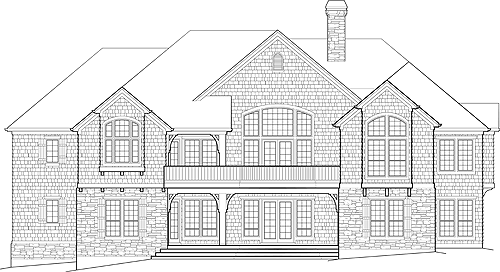

rear view

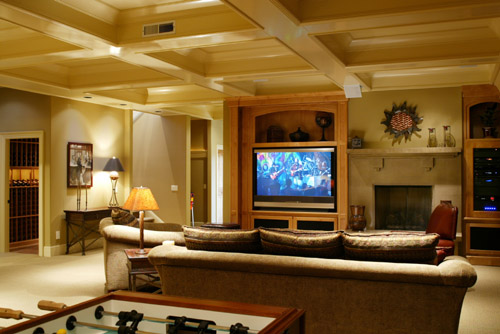

Rec Room
Separate Tub and Shower
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walk-In Pantry off Kitchen
Walkout Basement
Wine Cellar
