All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
The Hudson Carriage House is a 3 car garage with a 750 sq. ft. studio above. With siding exterior reminiscent of a country barn, this plan would be perfect temporary quarters during construction of your permanent home. Or it would be ideal for an in-law apartment, nanny quarters, college student apartment, etc.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

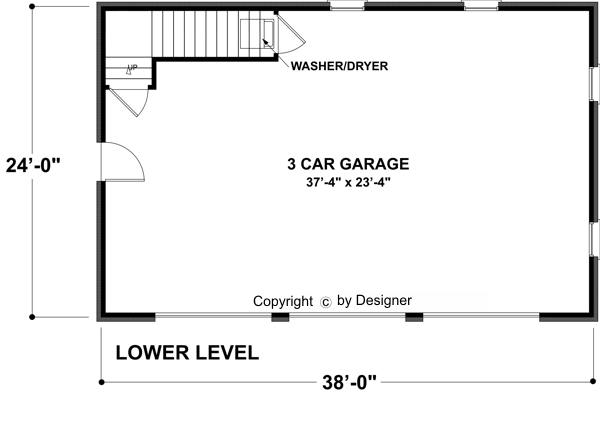

Garage Level

Garage Level
All images copyrighted by designer.

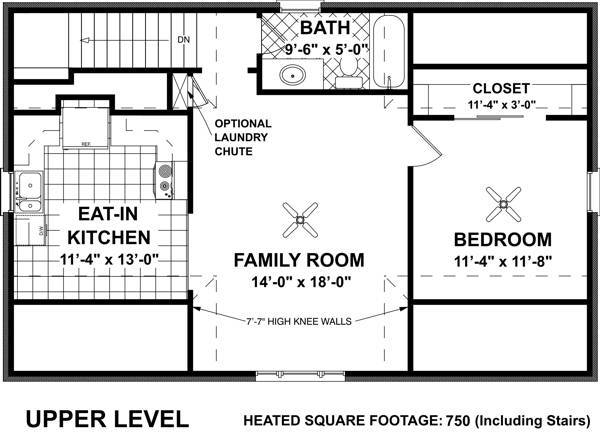

Living Area Floorplan

Living Area Floorplan
All images copyrighted by designer.

All Elevations

All Elevations
All images copyrighted by designer.


Plan #7124: Hudson Carriage House

Heated Area: 750 Sq. Ft.
Second Floor: 750 Sq. Ft.
Width: 38 Ft.    Depth: 24 Ft.
Bedrooms: 1           Bath: 1
Garage: 3
Styles: Country, Southern
Foundation: Slab Foundation (Please allow 2-3 Days for Delivery)

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF Bid Set  $695.00
 PDF File PDFs Now!   $795.00
 Five Sets  $845.00
 Eight Sets  $895.00
 Reproducible Set  $945.00
 CAD File  $1,095.00
Foundation Options
 Slab Foundation (Please allow ...  $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Sets   $35.00
 Right Reading Reverse   $175.00
 2x6 Wall Construction-Please allow 2-3 Days for Delivery   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
38' 0"
Width:
24' 0"
Depth:
Garage
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Country
Southern
NUMBERS OF ROOMS
1
Bedrooms:
1
Full Baths:
FINISHED SQUARE FOOTAGE
750 Sq. Ft.
Upper Level:
750 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
858 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
FOUNDATION
Slab Foundation (Please allow 2-3 Days for Delivery)
HOUSE AND CEILING HEIGHTS
8'-0"
First Floor Ceiling:
9'-0"
Second Floor Ceiling:
24' 8"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
12/12
Gable:
ROOF LOAD
30 PSF
Live:
90 MPH
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
KEY FEATURES
Detached
No Porch
KEY FEATURES
Slab
