HIGHPOINT House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

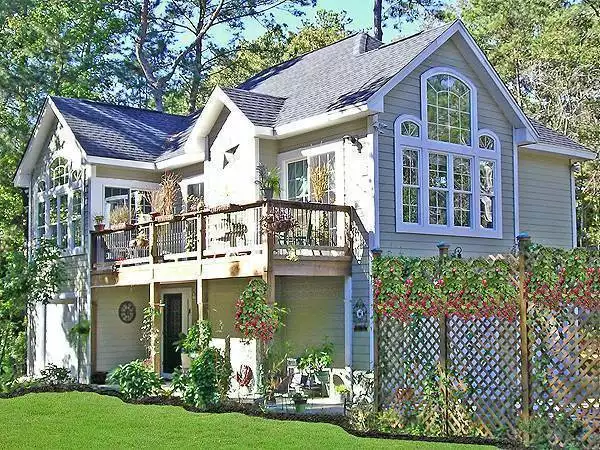

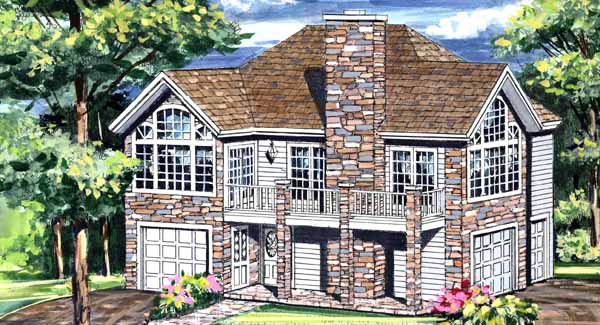

Front Photo

Front Photo image of HIGHPOINT House Plan
All images copyrighted by designer.

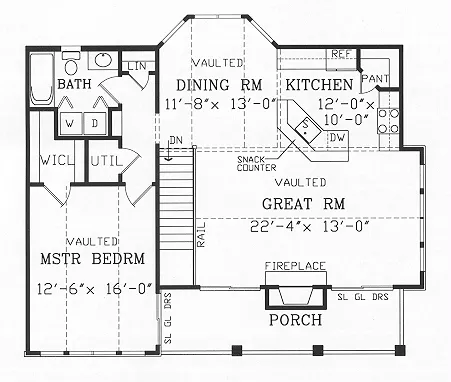

Second Floor Plan

Second Floor Plan image of HIGHPOINT House Plan
All images copyrighted by designer.

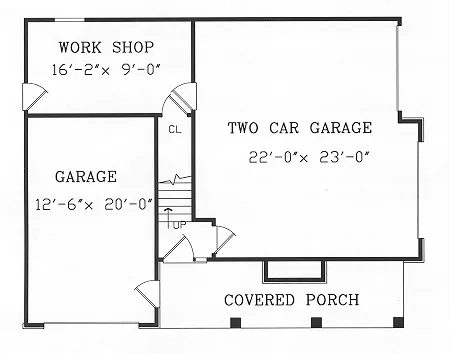

First Floor Plan

First Floor Plan image of HIGHPOINT House Plan
All images copyrighted by designer.

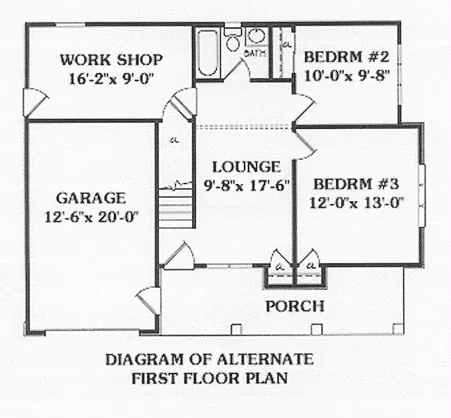

Optional Floor Plan

Optional Floor Plan image of HIGHPOINT House Plan
All images copyrighted by designer.





Plan: THD-JAA-4470
ENERGY STAR Heated Area: 1029 Sq. Ft.
Second Floor: 1029 Sq. Ft.
Bonus: 159 Sq. Ft.
Width: 39 Ft. 2 In.    Depth: 30 Ft.
Bedrooms: 1           Bath: 1
Garage: 3
Styles: Cottage, Craftsman
Foundation: Slab Foundation
Designer Notes:
Learn more about the amenities and key features of HIGHPOINT House Plan.


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Review Set with Material List  $179.00
 Upgrade From a Review Set  $506.00
 PDF BID SET PDFs Now!   $525.00
 Four Set Package  $605.00
 Eight Set Package  $685.00
 PDF Construction Set - Single Use PDFs Now!   $785.00
 Reproducible Vellum Set  $810.00
 CAD FILE - single use  $1,195.00
Foundation Options
 Slab Foundation PDFs Now! available   $0.00
Plan Options
 ENERGY STAR® Approved  $275.00
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:39' 2"
Depth:30' 0"
Dwelling Number:Garage
Bonus Access:1st Floor
  EXTERIOR STYLE
Mountain
Vacation
Cottage
Craftsman
Beach
  NUMBERS OF ROOMS
Bedrooms:1
Full Baths:1
  FINISHED SQUARE FOOTAGE
Upper Level: 1029 Sq. Ft.
Total: 1029 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:781 Sq. Ft.
Bonus Room:159 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Slab Foundation
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:9
Maximum House Height:29' 2"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:10: 12
  ROOF LOAD
Live:30
Dead:7
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
Attached
Covered Front Porch
Deck
Drive-under
Fireplace
Great Room
  KEY FEATURES
Laundry 2nd Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Peninsula / Eating Bar
Vaulted Ceilings
Walk-in Closet
