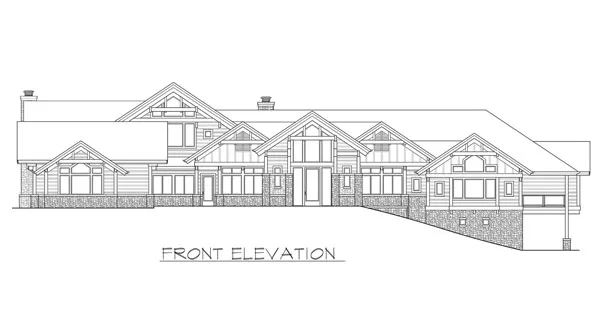

  3. Front Elevation

    Front Elevation

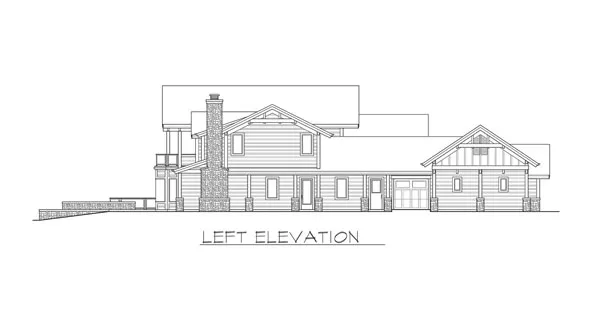

  4. Left Elevation

    Left Elevation

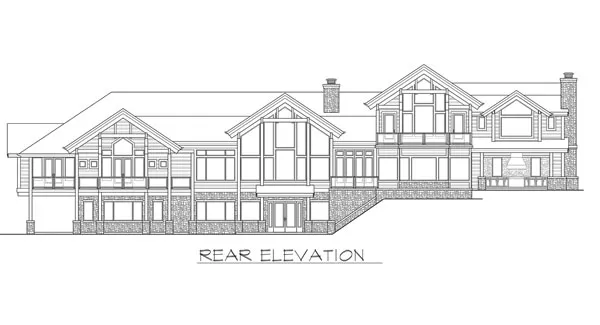

  5. Rear Elevation

    Rear Elevation

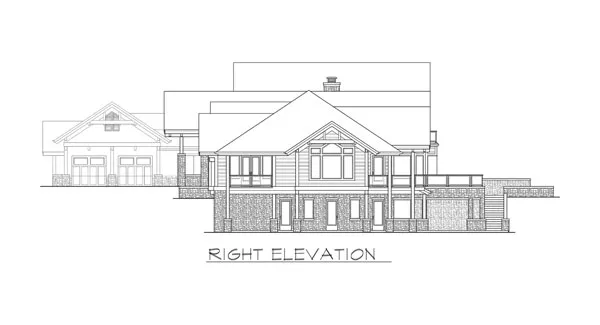

  6. Right Elevation

    Right Elevation

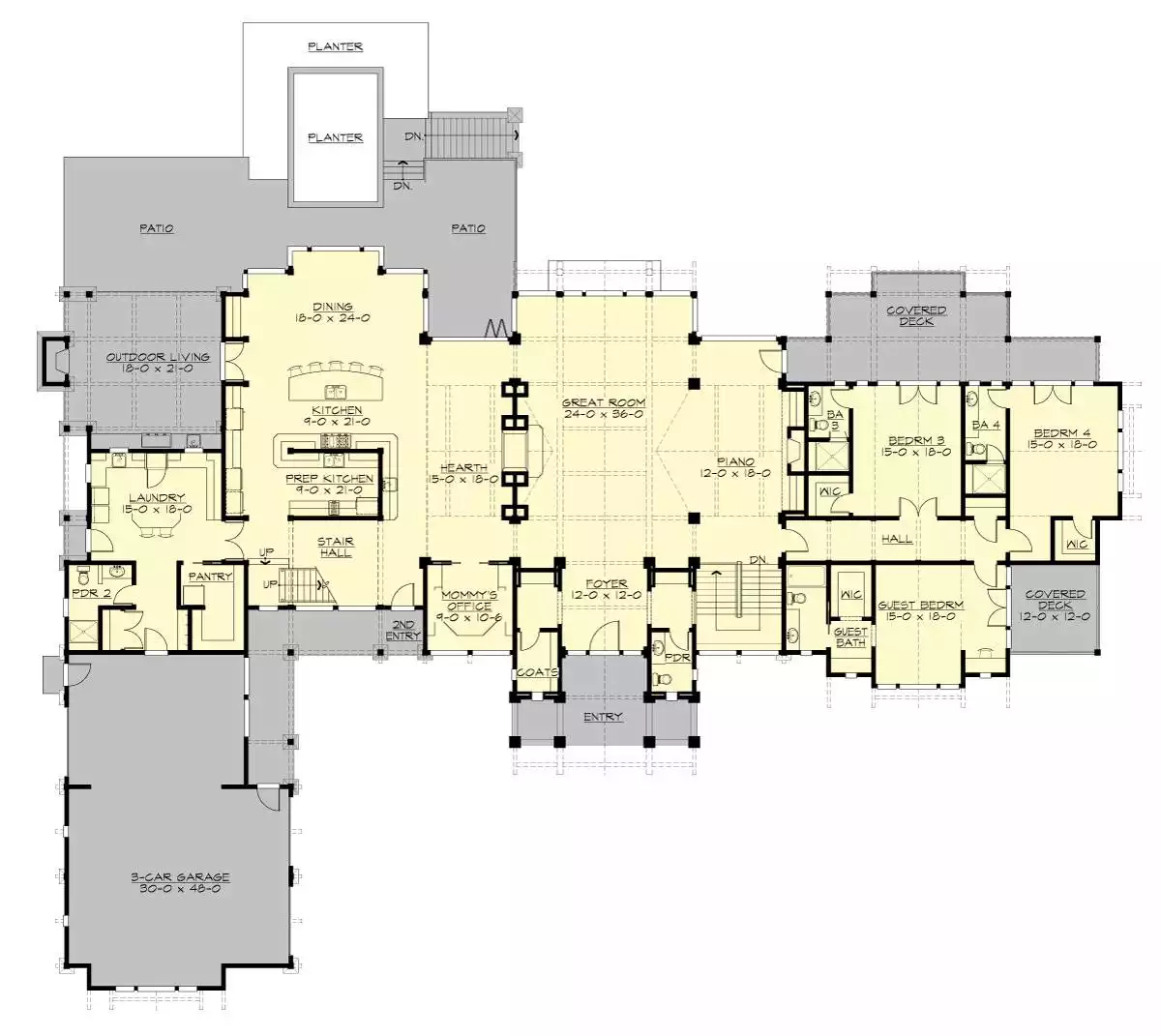

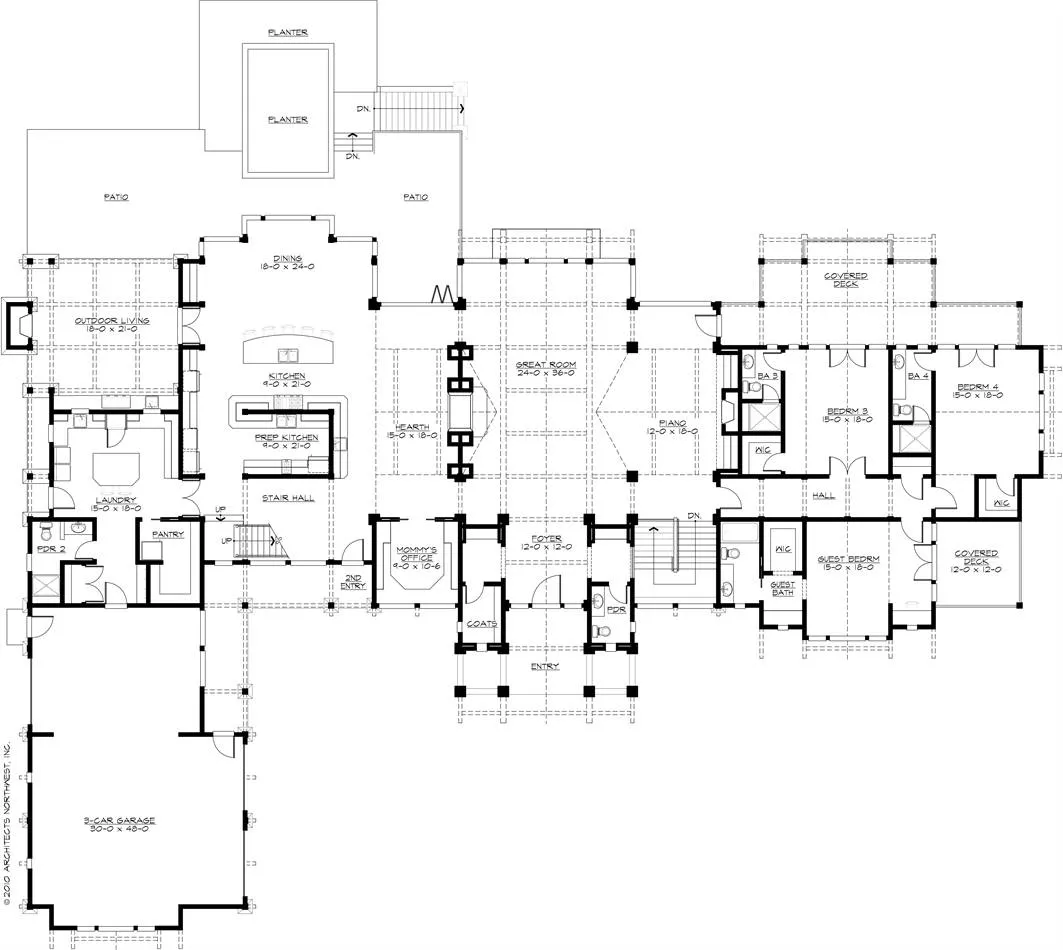

  7. Main Floor

    Main Floor

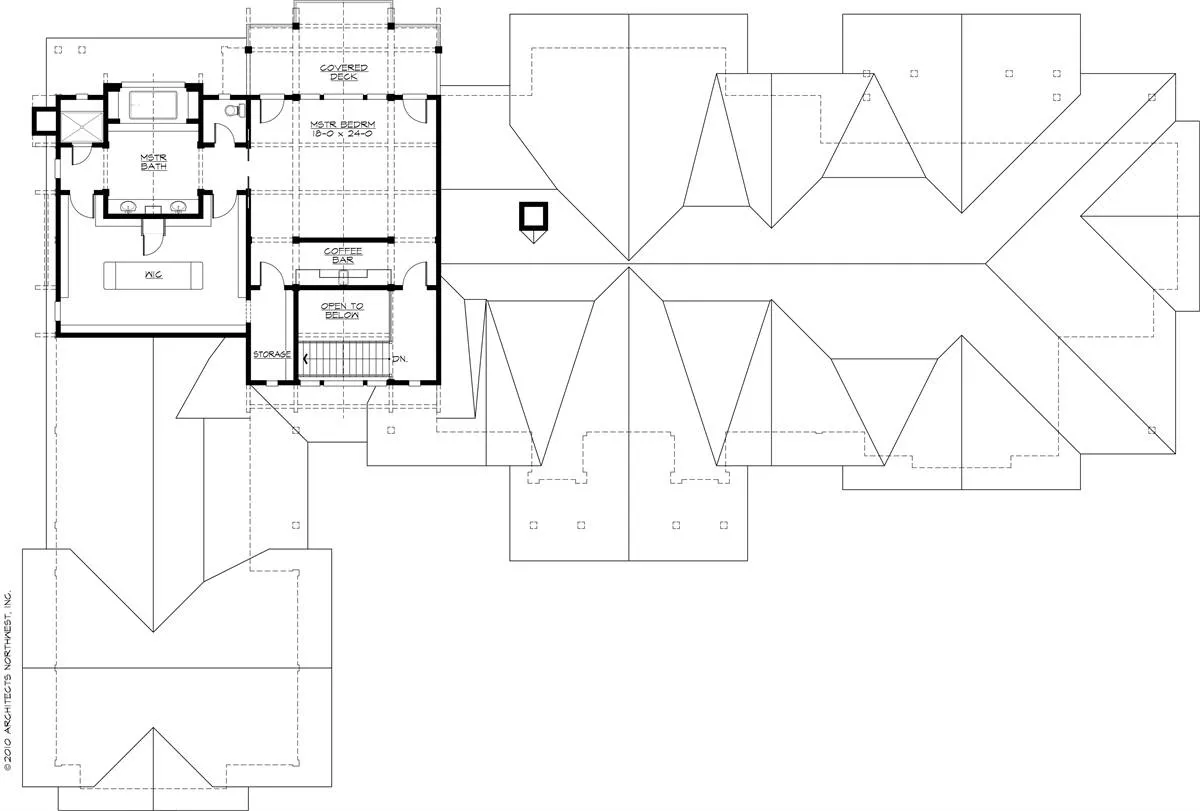

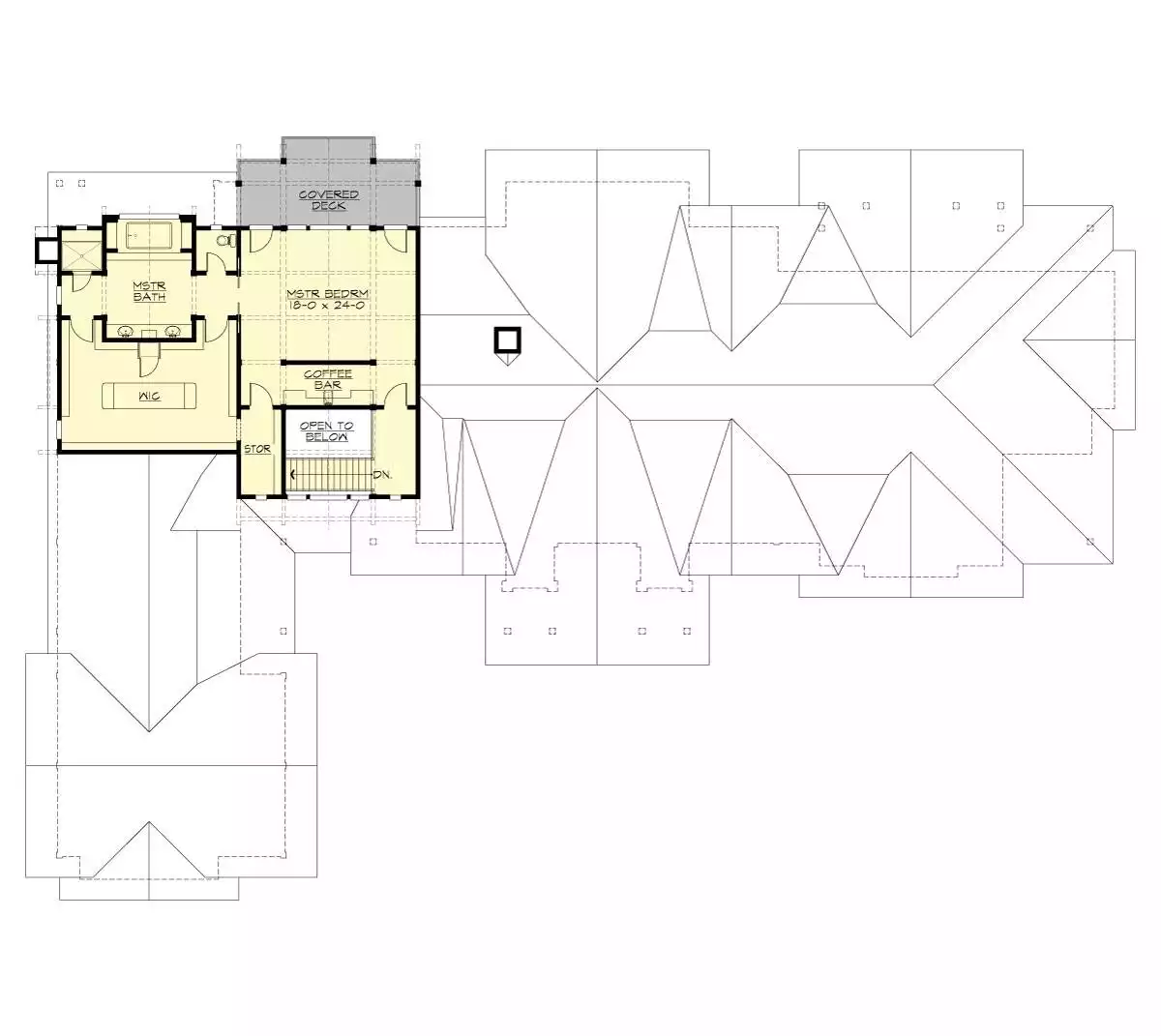

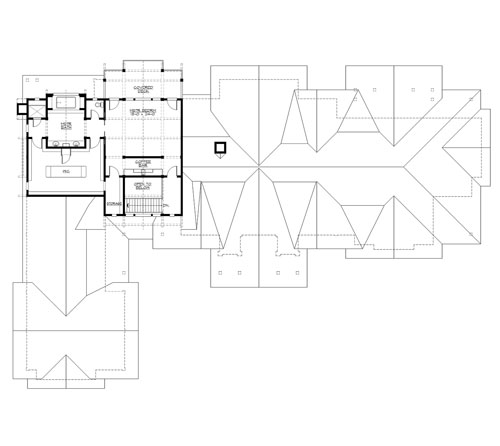

  8. Upper Floor

    Upper Floor

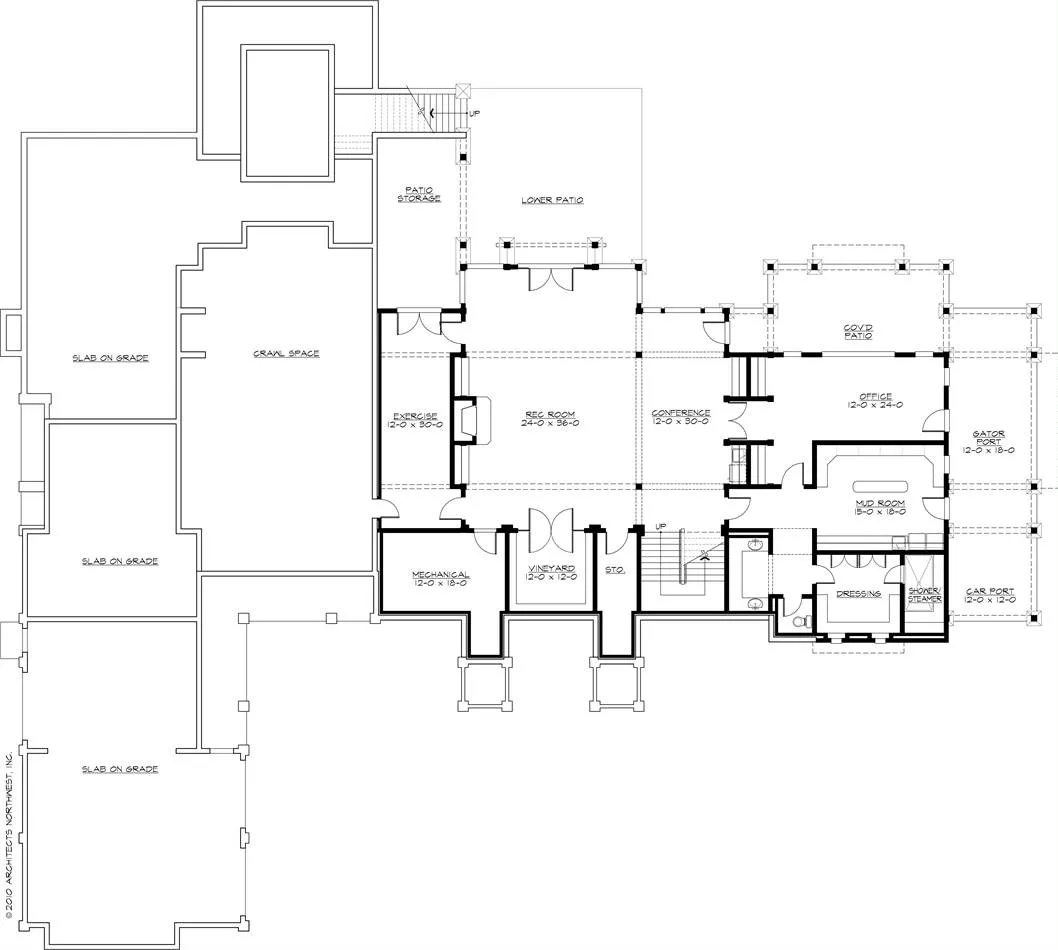

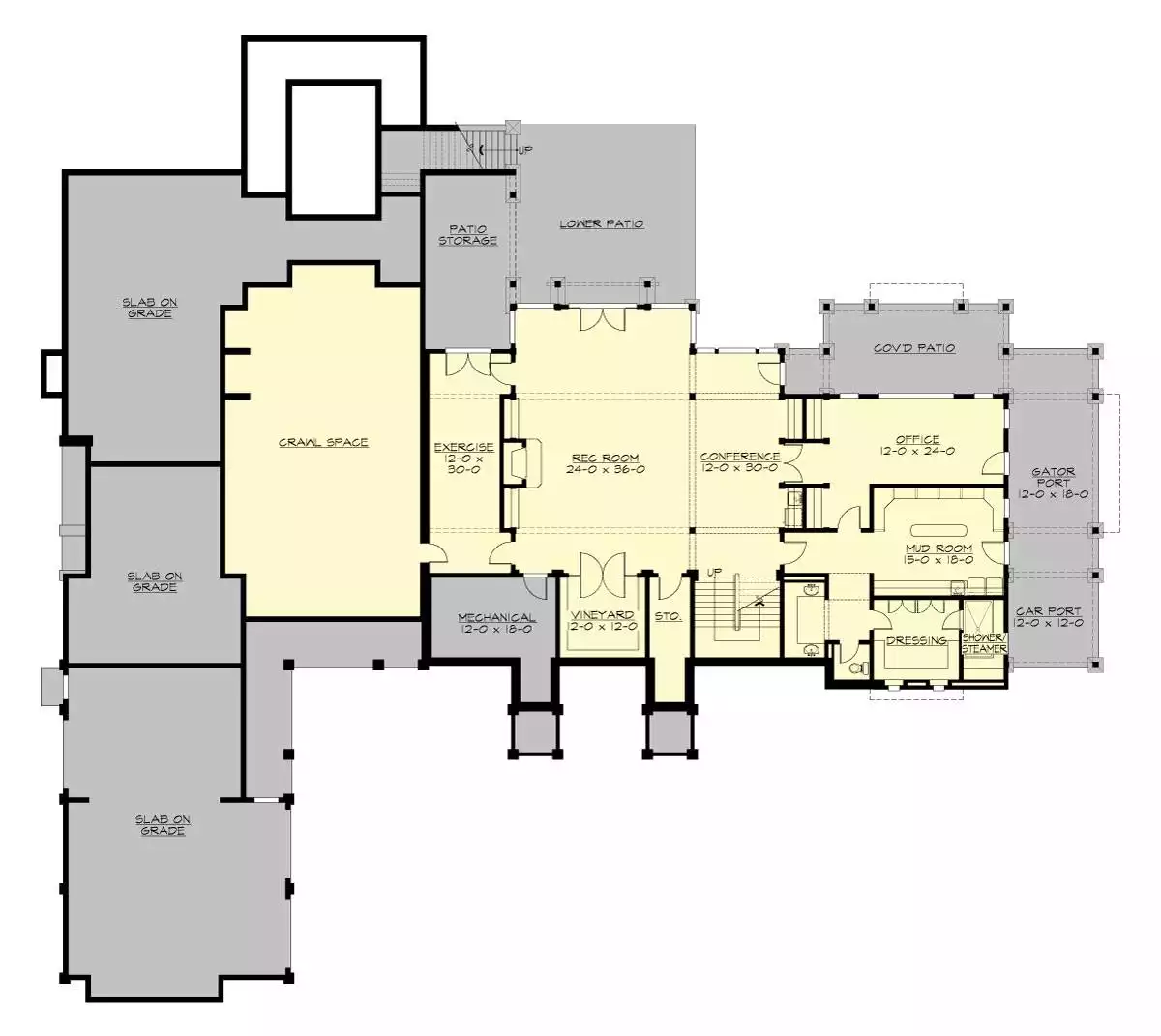

  9. Lower Floor

    Lower Floor
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
A spectacular estate designed for a waterfront view lot, the Havenhawk has been carefully designed to provide a luxurious expression of an active family lifestyle. Its solid stone foundation, heavy timber structure, and elegant, sweeping rooflines evoke feelings of strength and serenity.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

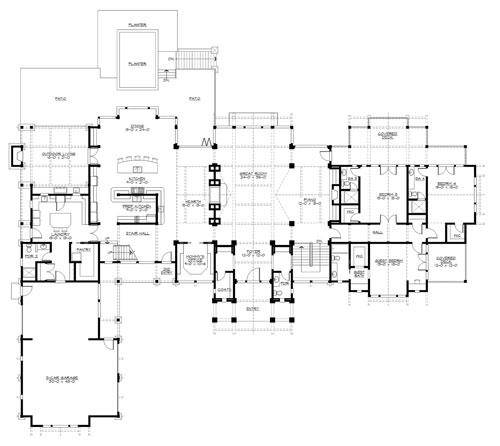

Main Floor

Main Floor
All images copyrighted by designer.

Upper Floor

Upper Floor
All images copyrighted by designer.

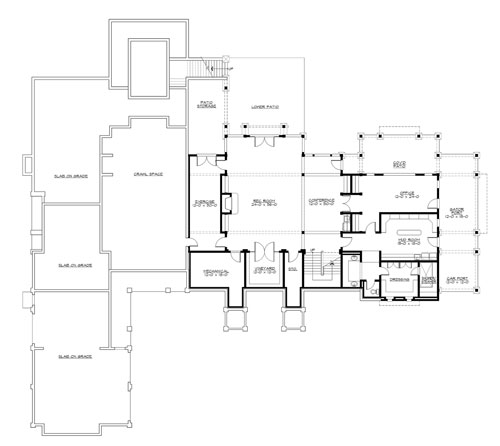

Lower Floor

Lower Floor
All images copyrighted by designer.


Plan #3233: Havenhawk

Heated Area: 9,870 Sq. Ft.
First Floor: 5,350 Sq. Ft.
Second Floor: 1,450 Sq. Ft.
Lower Floor: 3,070 Sq. Ft.
Width: 144 Ft.    Depth: 100 Ft.
Bedrooms: 4           Bath: 6.5
Garage: 3
Styles: Craftsman, Farm House
Foundation: Daylight Basement
Available Packages
 Five Set Package  $2,600.00
 Eight Set Package  $2,700.00
 Vellums - Single Use License  $3,350.00
 PDF Files - Single Use License  $3,350.00
 CAD Files - Single Use License  $4,650.00
Plan Options
 Full Reading Reverse   $150.00
Plan Products
 Additional Sets  $50.00

Note: This plan cannot be purchased for construction in Washington State.

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
3
Number of Stories:
144' 0"
Width:
100' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Craftsman
Farm House
Mountain
NUMBERS OF ROOMS
4
Bedrooms:
6
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
5,350 Sq. Ft.
Main Level:
1,450 Sq. Ft.
Upper Level:
3,070 Sq. Ft.
Lower Level:
9,870 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
1205 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
3
Garage Size:
FOUNDATION
Daylight Basement
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
32' 0"
Maximum House Height:
FRAMING INFORMATION
Combination
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
8
Primary:
ROOF LOAD
25
Live:
15
Dead:
85
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
KEY FEATURES
2 Story Volume
Attached
Butler's Pantry
Covered Rear Porch
Daylight Basement
Deck
Dining Room
Double Vanity Sink
Exercise Room
Fireplace
Foyer
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
KEY FEATURES
Laundry 2nd Fl
Library/Media Rm
Master Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Side-entry
Storage Space
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Workshop
