  1. Front Rendering

    Front Rendering

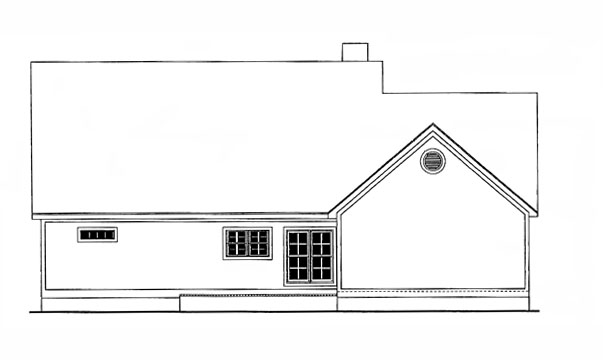

  2. Rear Elevation

    Rear Elevation

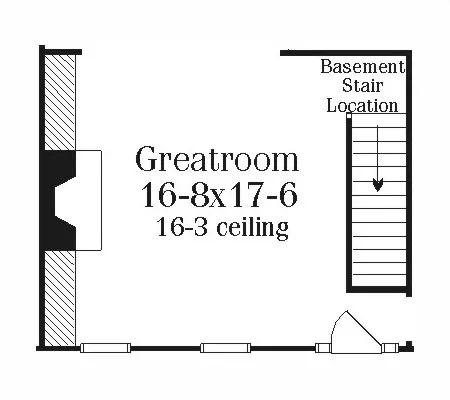

  3. Basement Stair Location

    Basement Stair Location

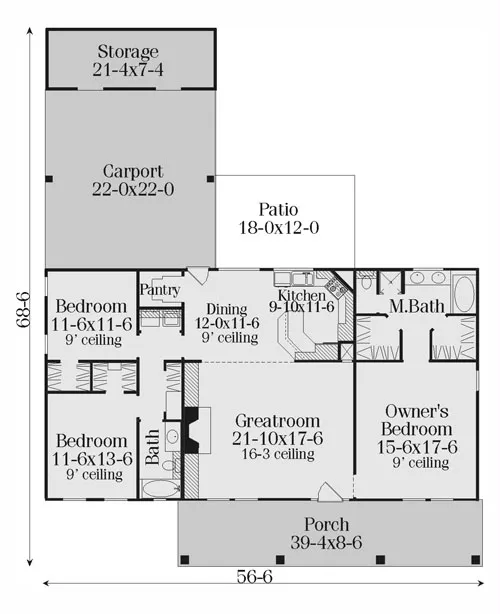

  4. Floor Plan

    Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Built-ins surround the wood-burning fireplace in the vaulted greatroom of this southern cottage design. An angled snack bar opens the kitchen to the dining room and greatroom. A large walk-in pantry presents great storage for the kitchen.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

Floor Plan

Floor Plan
All images copyrighted by designer.


Plan #3642: Hartwick

Heated Area: 1,680 Sq. Ft.
First Floor: 1,680 Sq. Ft.
Width: 56 Ft. 6 In.    Depth: 68 Ft. 6 In.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Country, Southern
Foundation: Basement, Crawl Space, Slab
Available Packages
 Five Sets  $789.00
 Eight Sets  $846.00
 PDF File  $1,027.00
 CAD Files  $1,849.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
56' 6"
Width:
68' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Country
Southern
Cottage
Florida
Mountain
Vacation
FACADE
Siding
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,680 Sq. Ft.
Main Level:
1,680 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
484 Sq. Ft.
Garage:
334 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
26' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Basement
Carport
Covered Front Porch
Crawlspace
Double Vanity Sink
Fireplace
Front Porch
Great Room
His and Hers Master Closets
Laundry 1st Fl
KEY FEATURES
Master Bdrm Main Floor
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
