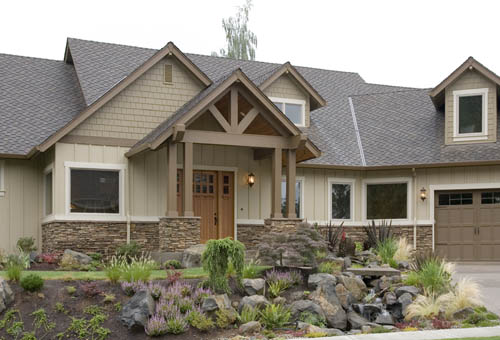

  5. Front Exterior

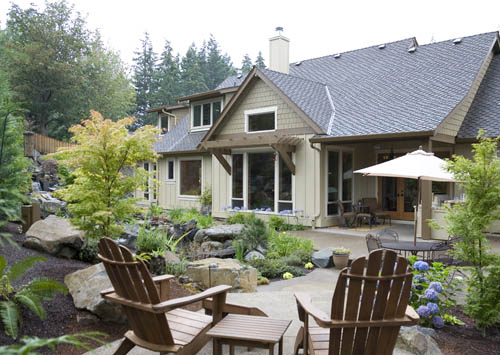

  6. Rear Exterior

  7. Great Room

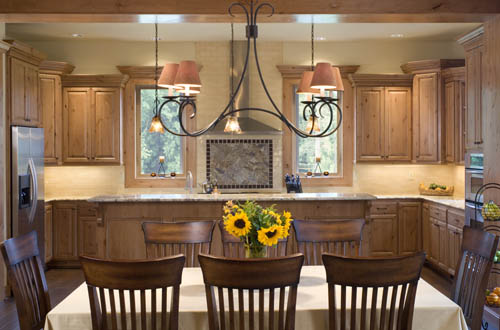

  8. Kitchen

  9. Kitchen

  10. Kitchen

  11. Kitchen

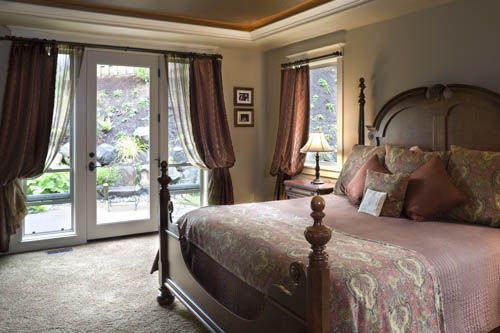

  12. Master Bedroom

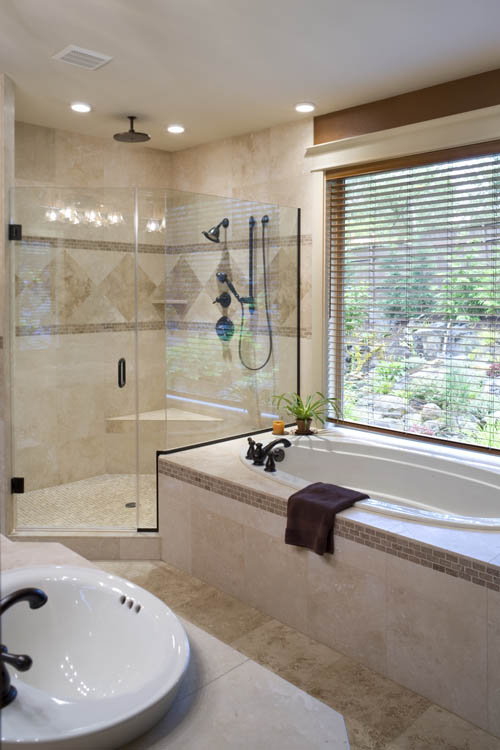

  13. Master Bath

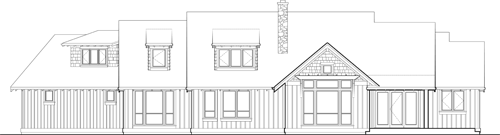

  14. Rear Elevation

  15. First Floor Plan

  16. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
One of our best-selling house plans offers the nostalgic charm of Craftsman details. Inside, the vaulted Great Room hosts family and friends in stylish comfort. You wont find a more impressive kitchen/dining arrangement than the one on these floor plans.  Read more >
read our customer stories and testimonials
"We just started the house building process but the house plans were awesome."
Customer Review:
— Gibson of Chattanooga, TN
"Great Plans and after some slight modifications by our builder, we have a beautiful home with tons of character. We get compliments all the time on the floor plan and the overall look of the house."
Customer Review:
— Matt of Lewistown, MT
Questions & Answers
Have questions about this plan? Click here for help!

Spring Savings! Take 15% Off All Packages Over $500! See details

First Floor Plan

First Floor Plan image of Halstad Craftsman Ranch
All images copyrighted by designer.

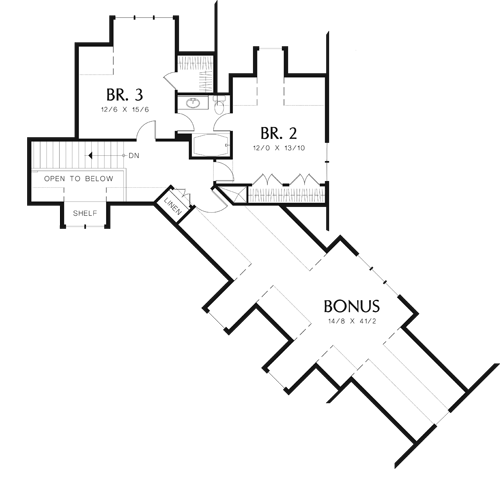

Second Floor Plan

Second Floor Plan image of Halstad Craftsman Ranch
All images copyrighted by designer.


Plan #5902: Halstad Craftsman Ranch

Heated Area: 2,907 Sq. Ft.
First Floor: 2,287 Sq. Ft.
Second Floor: 620 Sq. Ft.
Bonus: 581 Sq. Ft.
Width: 98 Ft. 9 In.    Depth: 66 Ft. 4 In.
Bedrooms: 3           Bath: 2.5
Garage: 3
Styles: Craftsman, Ranch
Foundation: Basement, Crawlspace, Slab
Available Packages
 Basic Package  $850.00
 Construction Package  $950.00
 Modification Package: PDF  $1,210.00
 Modification Package: CAD  $1,955.00
Foundation Options
 Crawlspace  $0.00
 Slab  $125.00
 Basement  $275.00
Plan Options
 Additional Sets   $40.00
 Full Reverse Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
98' 9"
Width:
66' 4"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
EXTERIOR STYLE
Craftsman
Mountain
Ranch
Country
Traditional
Vacation
Lake
Texas
Tennessee
FACADE
Siding
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,287 Sq. Ft.
Main Level:
620 Sq. Ft.
Upper Level:
2,907 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
793 Sq. Ft.
Garage:
220 Sq. Ft.
Porch:
581 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
3
Garage Size:
FOUNDATION
Basement
Crawlspace
Slab
HOUSE AND CEILING HEIGHTS
VARIES
First Floor Ceiling:
8
Second Floor Ceiling:
24' 6"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x6
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
ROOF LOAD
25
Live:
15
Dead:
0
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
KEY FEATURES
2 Story Volume
Attached
Basement
Bonus Room
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
Home Office
KEY FEATURES
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
Open Floor Plan
Rear Porch
rear view
Separate Tub and Shower
Slab
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walk-In Pantry off Kitchen
