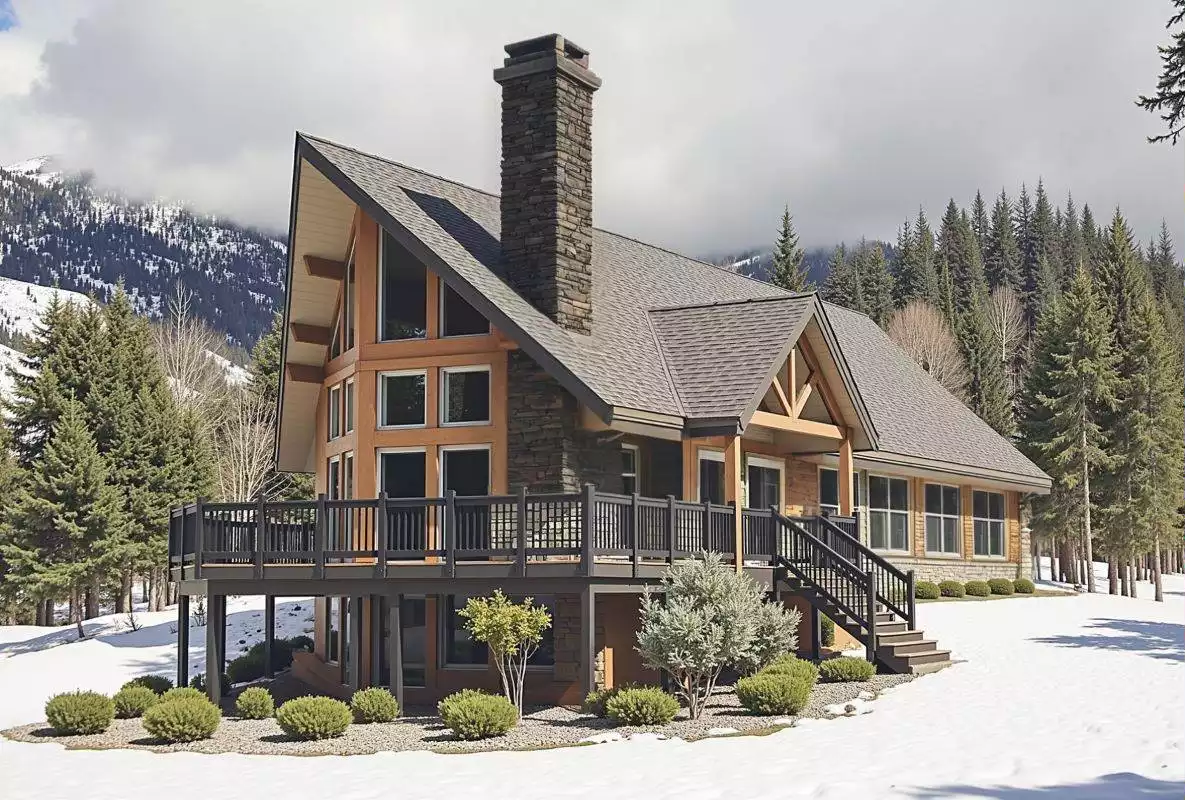

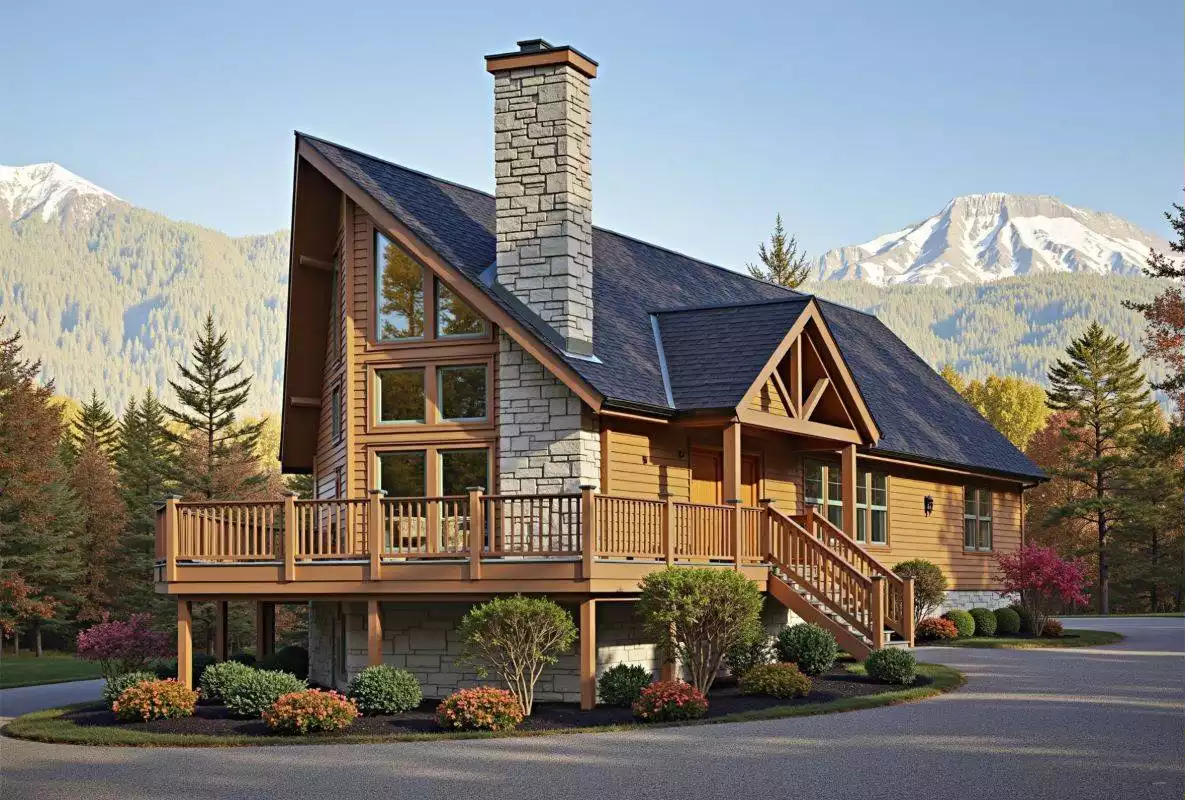

  1. color

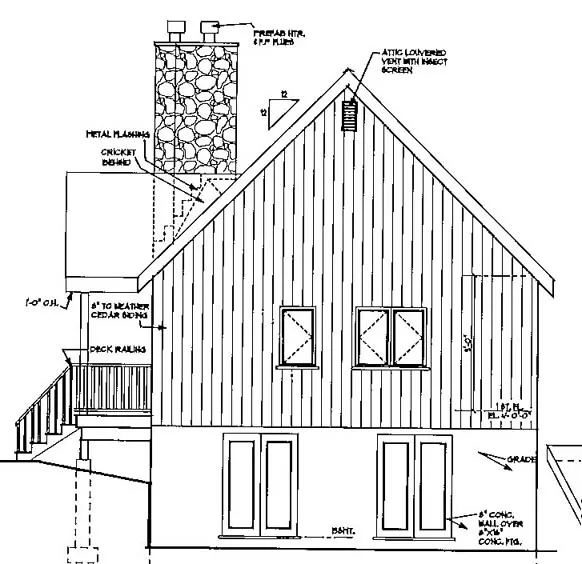

  2. rear

  3. Basement

  4. Floor plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Wraparound deck and soaring windows. Living/dining areas with a cathedral ceiling 21 ft. high. Open kitchen with 14' high ceiling. The bedrooms include a 14 ft. high ceiling.
The basement includes a one car garage, utility closet and space for future playroom.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

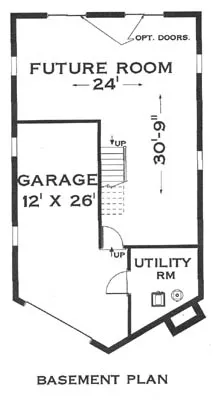

Basement

Basement image of Great Chalet
All images copyrighted by designer.

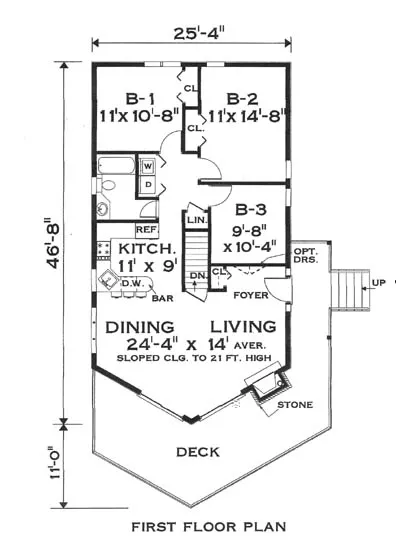

Floor plan

Floor plan image of Great Chalet
All images copyrighted by designer.


Plan #5797: Great Chalet

Heated Area: 1,089 Sq. Ft.
Lower Floor: 730 Sq. Ft.
Width: 25 Ft. 4 In.    Depth: 46 Ft. 8 In.
Bedrooms: 3           Bath: 1
Garage: 1
Styles: Beach, Cottage
Foundation: Basement, Crawl Space, Slab
Available Packages
 One Set  $420.00
 Four Sets  $483.00
 Eight Sets  $567.00
 Vellums  $698.00
Foundation Options
 Basement  $0.00
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Materials List   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:25' 4"
Depth:46' 8"
Dwelling Number:Single
  EXTERIOR STYLE
Traditional
Beach
Vacation
Mountain
Country
Lake
Canada
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:1
  FINISHED SQUARE FOOTAGE
Lower Level:730 Sq. Ft.
Total: 1,089 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:359 Sq. Ft.
  GARAGE
Garage Location:Under
Garage Size:1
  FOUNDATION
Basement
Crawl Space
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Maximum House Height:0' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4 or 2x6
  ROOF PITCH
Primary:12/12
  ROOF LOAD
Live:40
Dead:15
Wind:100
  INSULATION (R)
Exterior Wall:19
Interior Wall:0
Ceiling:38
Floor:19
  KEY FEATURES
Attached
Daylight Basement
  KEY FEATURES
Drive-under
Wraparound Porch
