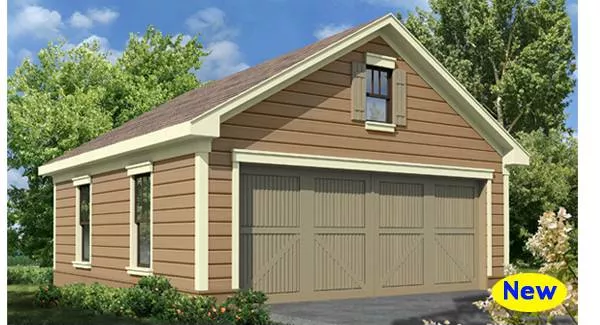

  1. Rendering

    Rendering

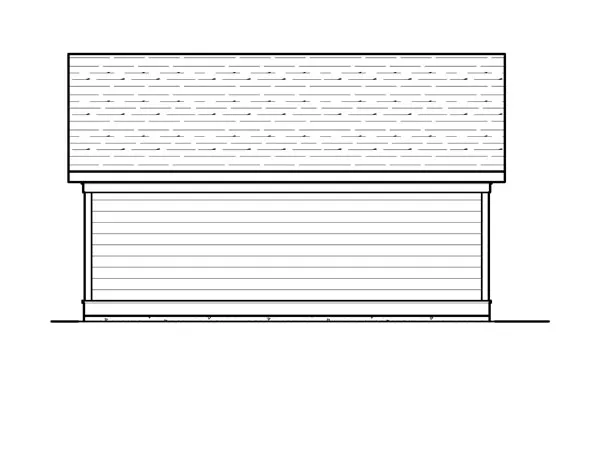

  2. Right Elevation

    Right Elevation

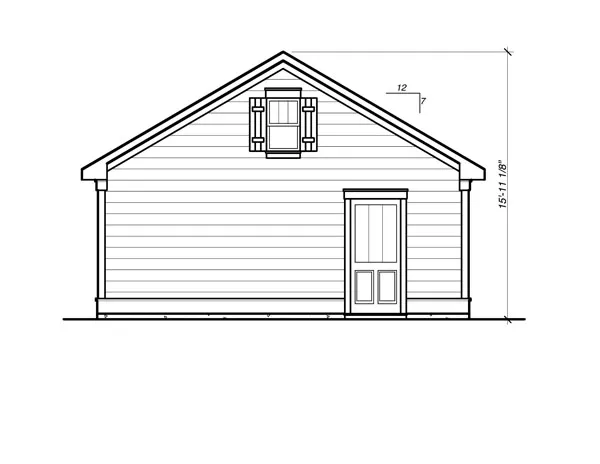

  3. Rear Elevation

    Rear Elevation

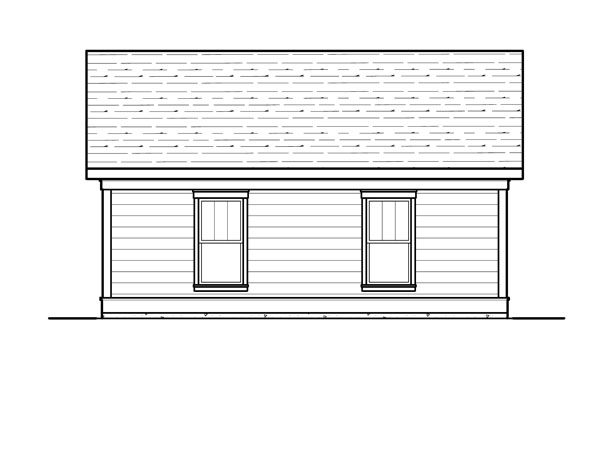

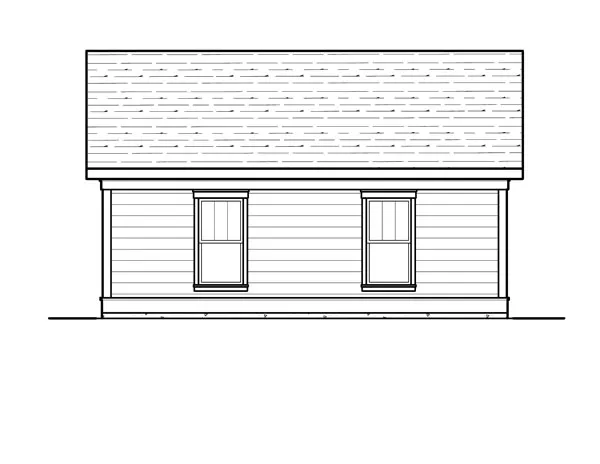

  4. Left Elevation

    Left Elevation

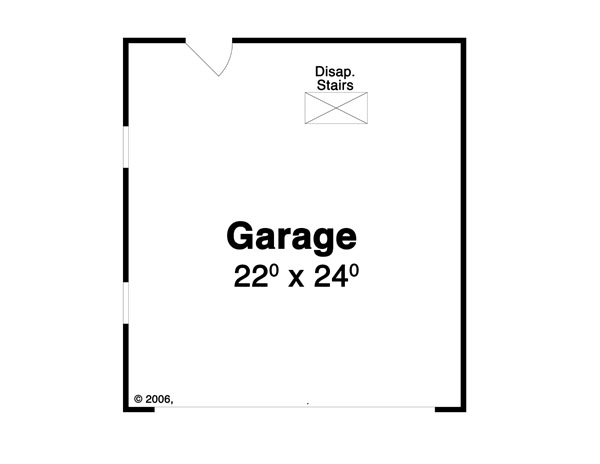

  5. Floor Plan

    Floor Plan

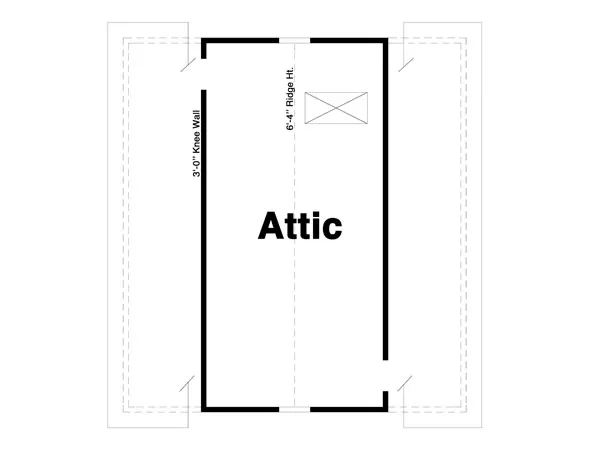

  6. Attic

    Attic
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This garage plan will meet the needs of many. A great design that will fit in as not only a home addition but also a great addition to one of our home plans just waiting to be finished off with a detached garage.
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

Floor Plan

Floor Plan
All images copyrighted by designer.

Attic

Attic
All images copyrighted by designer.


Plan #8089: GRANGER III

Heated Area: 816 Sq. Ft.
First Floor: 528 Sq. Ft.
Second Floor: 288 Sq. Ft.
Width: 22 Ft.    Depth: 24 Ft.
Garage: 2
Styles: Country, Farm House
Foundation: Slab, if shown as a standard option

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET  $225.00
 One Set  $300.00
 Five Sets of Plans  $475.00
 PDF File PDFs Now!   $675.00
 Vellums  $675.00
Foundation Options
 Slab, if shown as a standard o...  $0.00
Plan Options
 Additional Sets   $40.00
 Mirror Reverse   $50.00
 Right Read Reverse   $200.00
 Conversion to 2 x 6 Walls   $100.00
 Plan Modifications   $300.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
22' 0"
Width:
24' 0"
Depth:
Garage
Dwelling Number:
EXTERIOR STYLE
Traditional
Home Addition
Country
Farm House
FINISHED SQUARE FOOTAGE
528 Sq. Ft.
Main Level:
288 Sq. Ft.
Upper Level:
816 Sq. Ft.
Total:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Slab
if shown as a standard option
HOUSE AND CEILING HEIGHTS
8
First Floor Ceiling:
4
Second Floor Ceiling:
15' 11"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
7/12
Primary:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
19
Interior Wall:
0
Ceiling:
30
Floor:
KEY FEATURES
Detached
No Porch
KEY FEATURES
Slab
Storage Space
