  1. Rendering

    Exclusive Plan from The House Designers
    Rendering
  2. Right Elevation

    Right Elevation

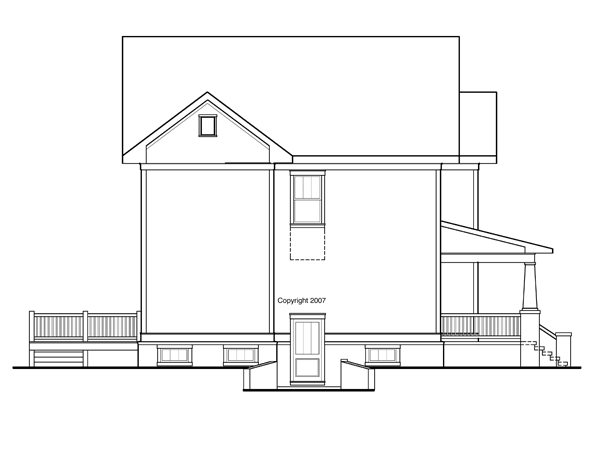

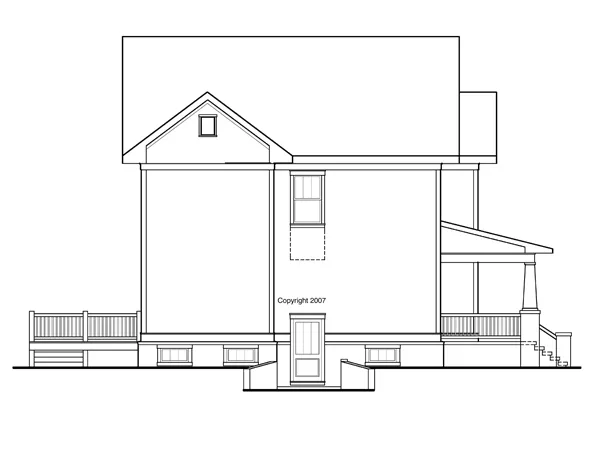

  3. Left Elevation

    Left Elevation

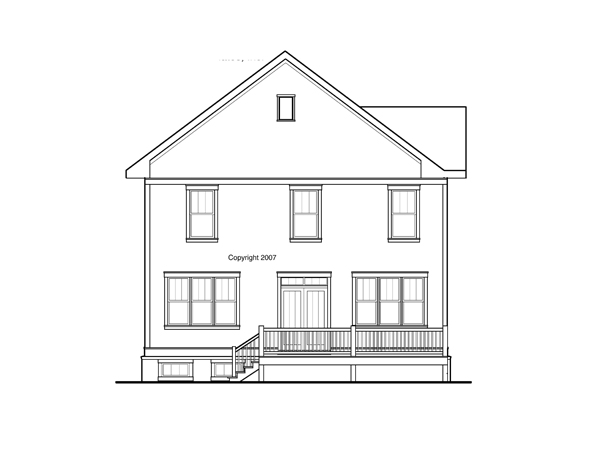

  4. Rear Elevation

    Rear Elevation

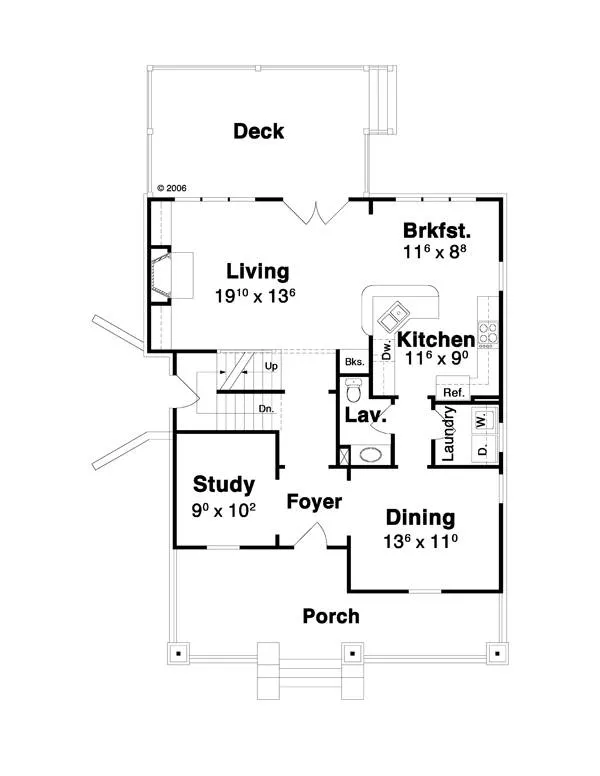

  5. First Floor

    First Floor

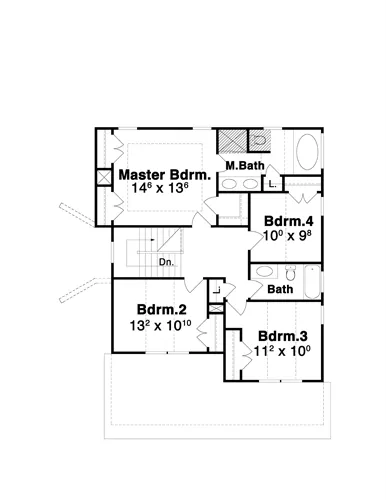

  6. Second Floor

    Second Floor

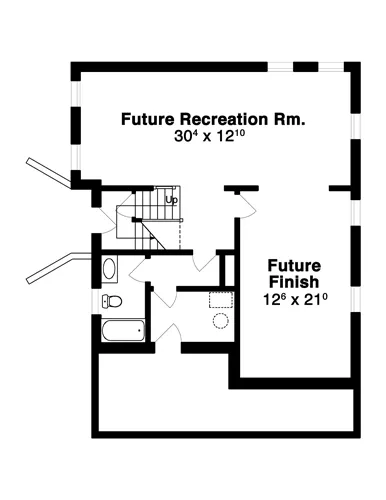

  7. Lower Level

    Lower Level
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This compact design isn't missing anything. The first floor features large living room that is open to the kitchen and breakfast area. A study and formal dining room complete this level. Upstairs you'll find 4 bedrooms including a large master suite.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Celebrate July 4th with Up to $100 Off Your Dream Home! See details

First Floor

First Floor
All images copyrighted by designer.

Second Floor

Second Floor
All images copyrighted by designer.

Lower Level

Lower Level
All images copyrighted by designer.


Plan #7122: GATSBY

Heated Area: 2,101 Sq. Ft.
First Floor: 1,050 Sq. Ft.
Second Floor: 1,050 Sq. Ft.
Lower Floor: 1,038 Sq. Ft.
Width: 32 Ft. 4 In.    Depth: 54 Ft.
Bedrooms: 4           Bath: 2.5
Garage: 0
Styles: Cottage, Craftsman
Foundation: Walk-Out Basement Standard, Any other bsmt. type requires changes.

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET  $650.00
 PDF THD Exclusive Product PDFs Now!   $1,025.00
Foundation Options
 Walk-Out Basement Standard, An...  $0.00
Plan Options
 Right Read Reverse   $250.00
 New Foundation Type   $350.00
 Conversion to 2 x 6 Walls   $200.00
 Prints size 11x17   $10.00
 Full Size Prints   $30.00
 Plan Modifications   $400.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
32' 4"
Width:
54' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Traditional
Vacation
Mountain
Cottage
Craftsman
NUMBERS OF ROOMS
4
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,050 Sq. Ft.
Main Level:
1,050 Sq. Ft.
Upper Level:
1,038 Sq. Ft.
Lower Level:
2,101 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
255 Sq. Ft.
Storage:
243 Sq. Ft.
Porch:
243 Sq. Ft.
Deck:
GARAGE
0
Garage Size:
FOUNDATION
Walk-Out Basement Standard
Any other bsmt. type requires changes.
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
8
Second Floor Ceiling:
31' 11"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
9/12
Primary:
3/12
Porch:
ROOF LOAD
20
Live:
10
Dead:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Covered Front Porch
Daylight Basement
Deck
Dining Room
Double Vanity Sink
Fireplace
Foyer
Front Porch
Great Room
His and Hers Master Closets
Home Office
Laundry 1st Fl
KEY FEATURES
Library/Media Rm
Master Bdrm Upstairs
None
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Storage Space
Unfinished Space
Walk-in Closet
Workshop
