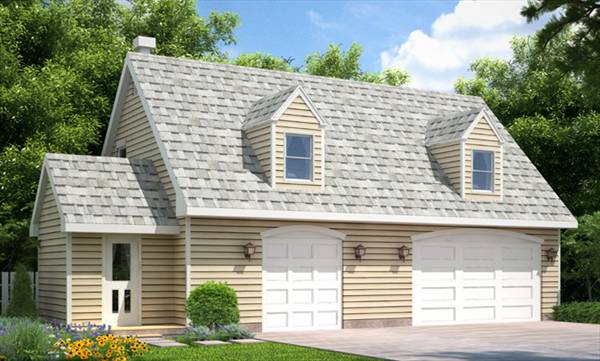

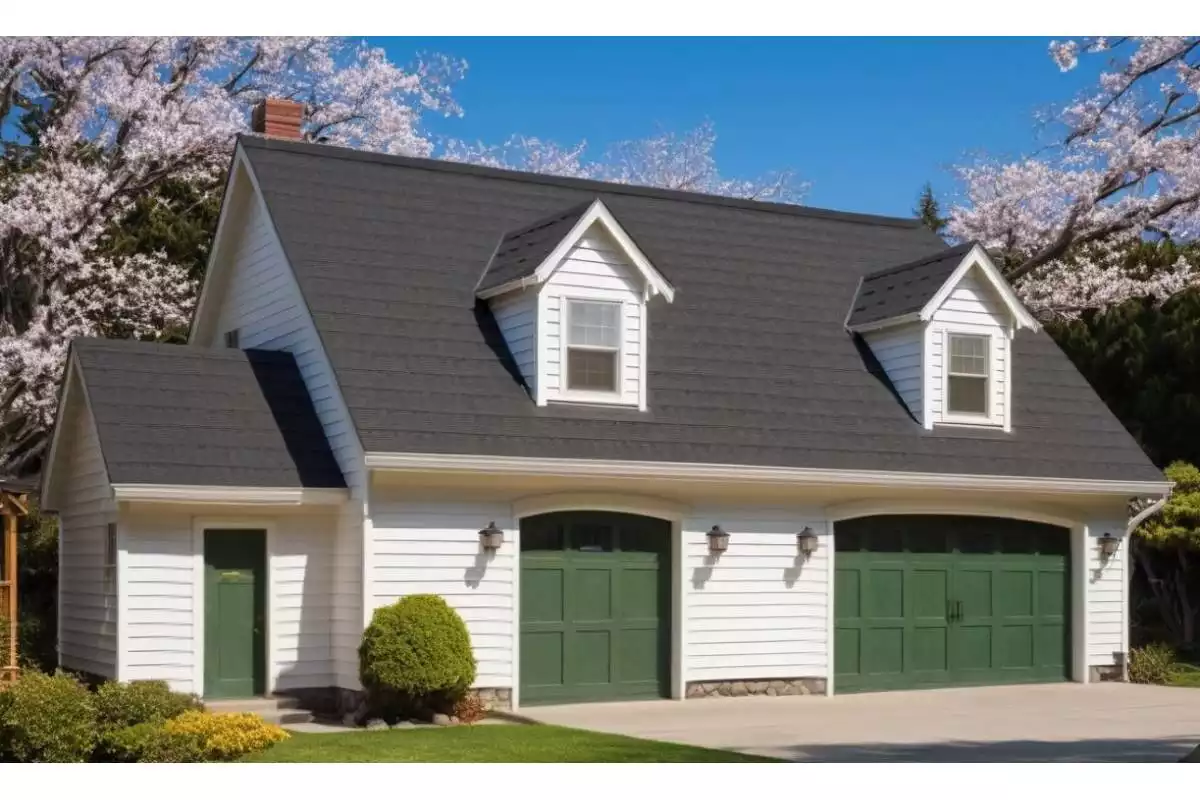

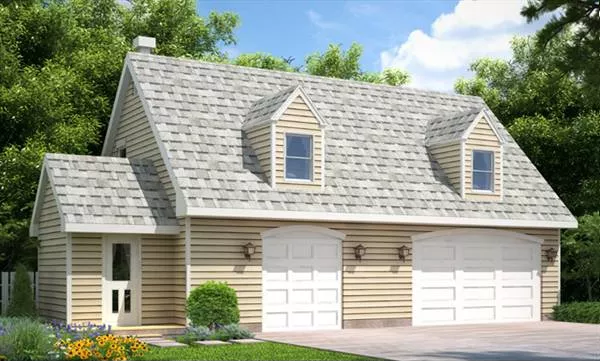

  1. Color rendering

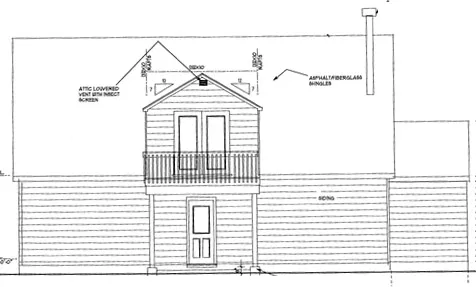

  2. rear

  3. LowerLevel

  4. Upper Level

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Garage with rental space or small office studio. Three car garage with laundry and utility room. Optional breezway entrance included for extra space or to attach to existing home. Upstairs a comfortable gathering area opens to a rear deck and cozy kitchen.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

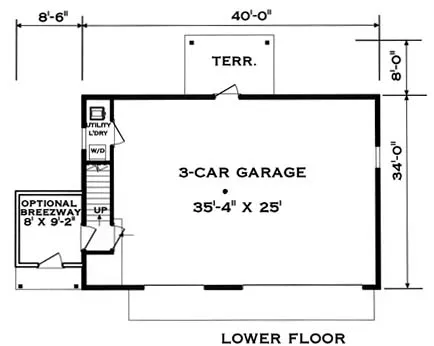

LowerLevel

LowerLevel image of Garage with rental apartment
All images copyrighted by designer.

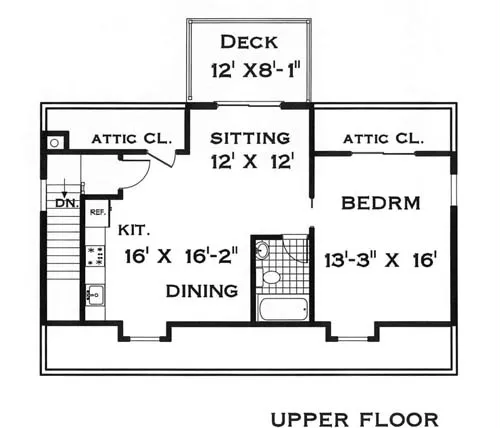

Upper Level

Upper Level image of Garage with rental apartment
All images copyrighted by designer.


Plan #8365: Garage with rental apartment

Heated Area: 1,040 Sq. Ft.
Second Floor: 738 Sq. Ft.
Width: 40 Ft.    Depth: 34 Ft.
Bedrooms: 1           Bath: 1.5
Garage: 3
Styles: Cottage, Country
Foundation: Slab

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 One Set  $420.00
 Four Sets  $483.00
 Eight Sets  $567.00
 Vellums  $698.00
Foundation Options
 Slab  $0.00
Plan Options
 Additional Sets   $50.00
 Mirror Reverse   $50.00
 Materials List   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
40' 0"
Width:
34' 0"
Depth:
Garage
Dwelling Number:
EXTERIOR STYLE
Cottage
Country
Southern
Farm House
North Carolina
NUMBERS OF ROOMS
1
Bedrooms:
1
Full Baths:
FINISHED SQUARE FOOTAGE
738 Sq. Ft.
Upper Level:
1,040 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
1040 Sq. Ft.
Garage:
97 Sq. Ft.
Deck:
83 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
3
Garage Size:
FOUNDATION
Slab
HOUSE AND CEILING HEIGHTS
9
First Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
ROOF PITCH
12/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
90
Wind:
INSULATION (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
KEY FEATURES
Drive-under
Front Porch
KEY FEATURES
None
