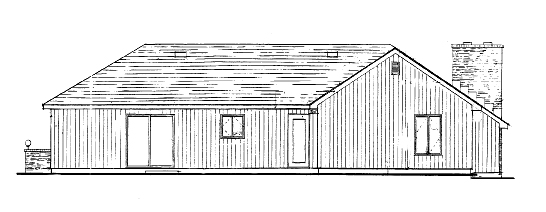

  3. Rear Elevation

    Rear Elevation
  4. Family Room

    Family Room

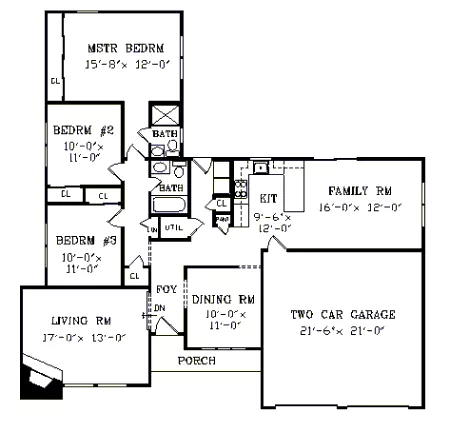

  5. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This contemporary ranch offers three generous-sized bedrooms and abundant living space in just over 1,500 square feet. It is a true center hall plan with very defined circulation, that orients to a rear yard that is viewed or accessed from four major areas.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #3773: EVERGREEN

Heated Area: 1,520 Sq. Ft.
First Floor: 1,520 Sq. Ft.
Width: 55 Ft.    Depth: 54 Ft. 4 In.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Contemporary, Modern
Foundation: Basement, Crawl Space, Slab Foundation

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
55' 0"
Width:
54' 4"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Contemporary
Modern
Ranch
FACADE
Owner's Choice
OwnersChoice
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,520 Sq. Ft.
Main Level:
1,520 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
473 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab Foundation
HOUSE AND CEILING HEIGHTS
8'-1"
First Floor Ceiling:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
8/ 12
Primary:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Attached
Country Kitchen
Dining Room
Family Kitchen
Family Room
Fireplace
Formal Dining Room
Formal LR
Foyer
KEY FEATURES
Front Porch
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
Oversized Garage
Separate Living / Family Room
Vaulted Ceilings
Vaulted Living Room
