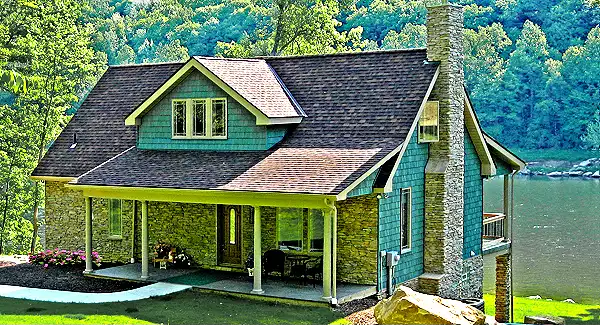

  1. Front Photo

    Front Photo

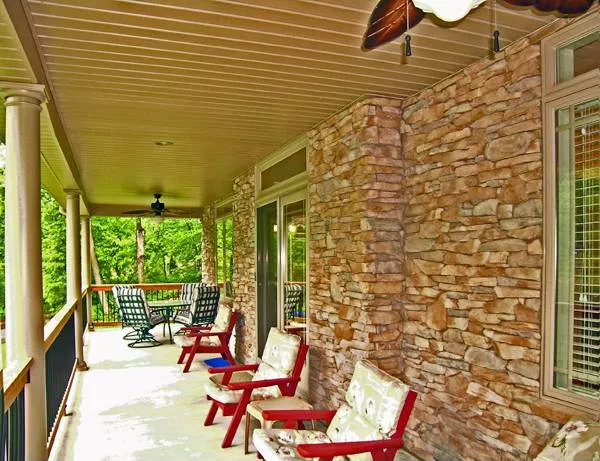

  2. Rear Porch

    Rear Porch

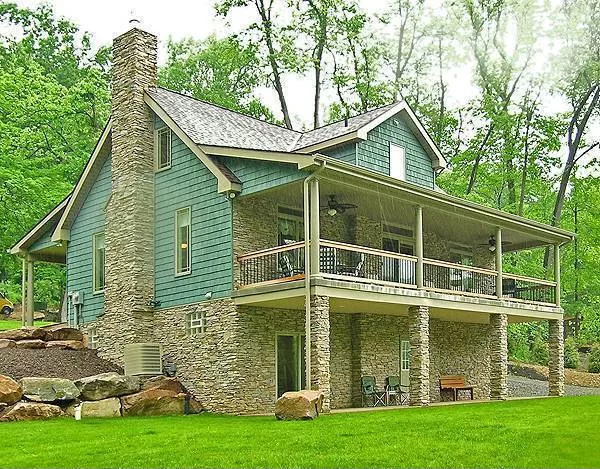

  3. Rear Photo

    Rear Photo

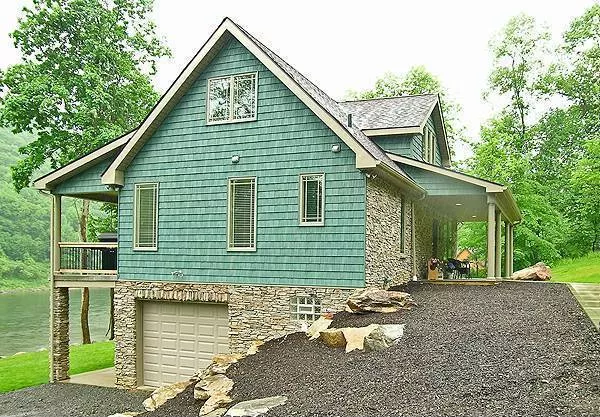

  4. Side Photo

    Side Photo

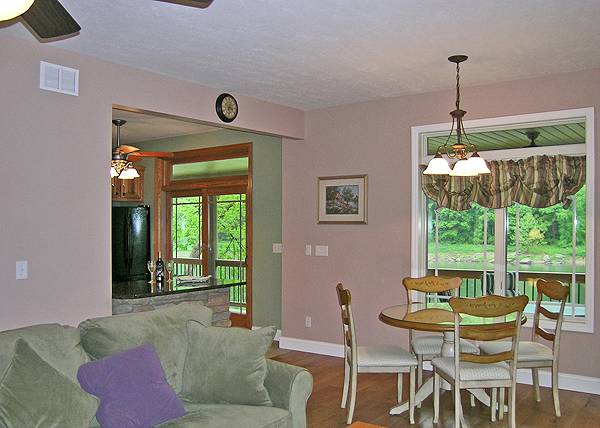

  5. Great Room 3

    Great Room 3

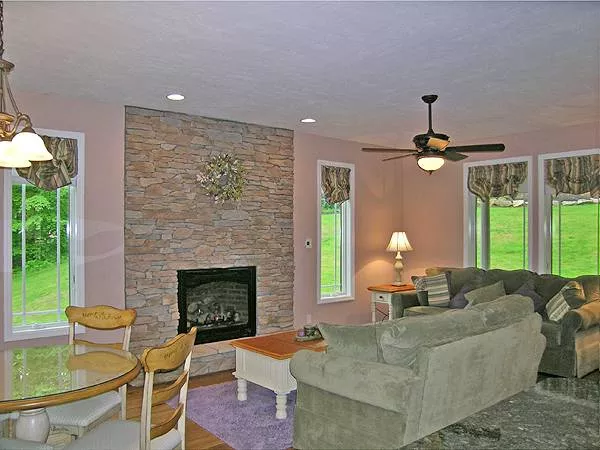

  6. Great Room 2

    Great Room 2

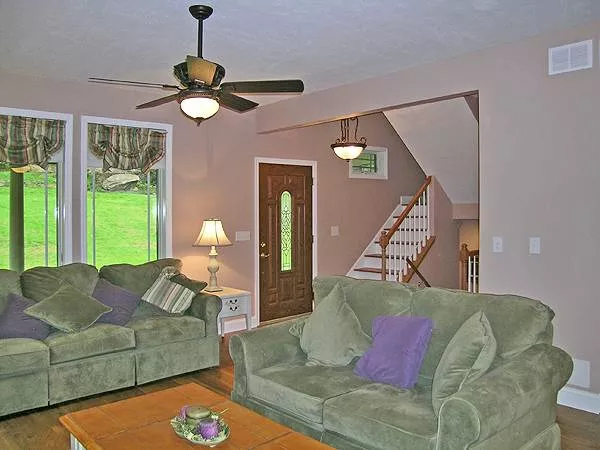

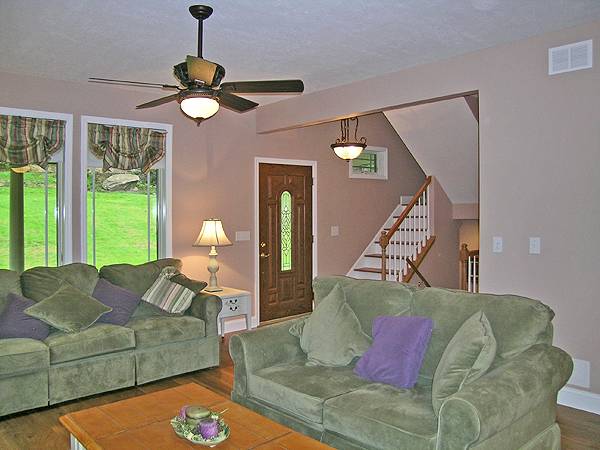

  7. Great Room 1

    Great Room 1

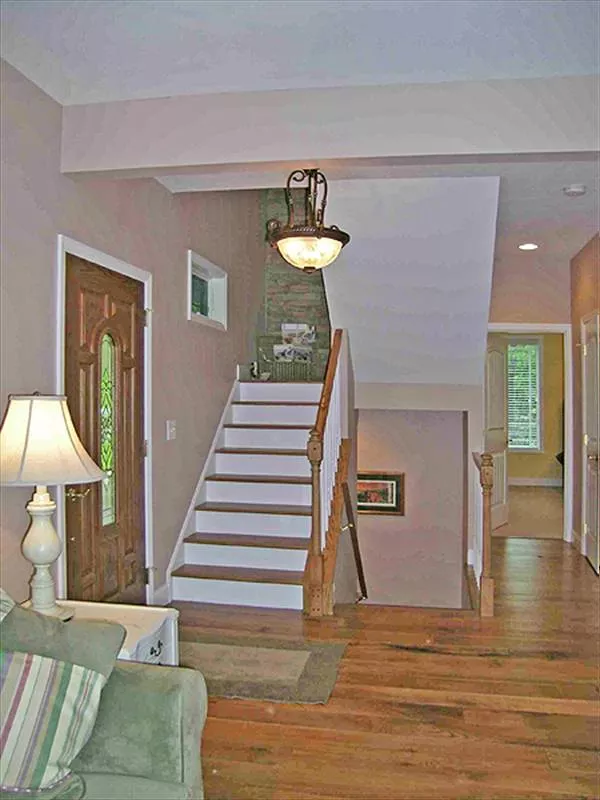

  8. Foyer

    Foyer

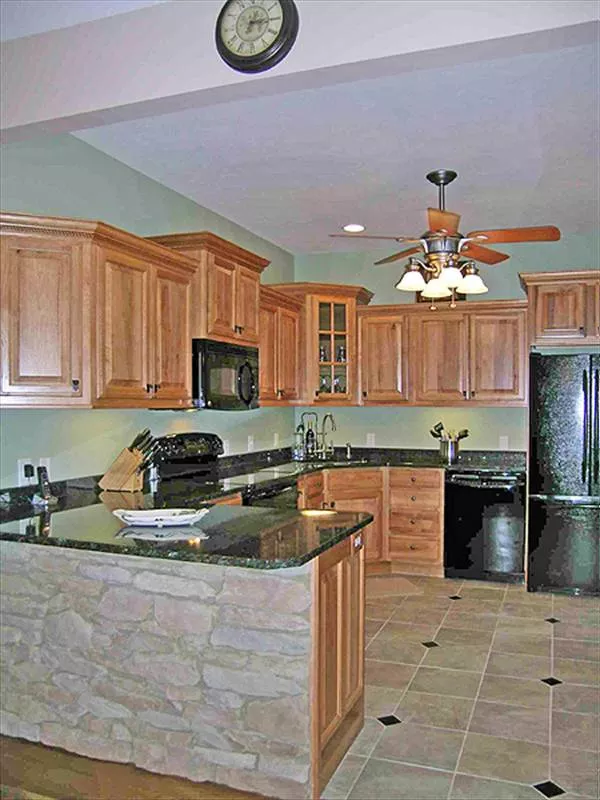

  9. Kitchen

    Kitchen

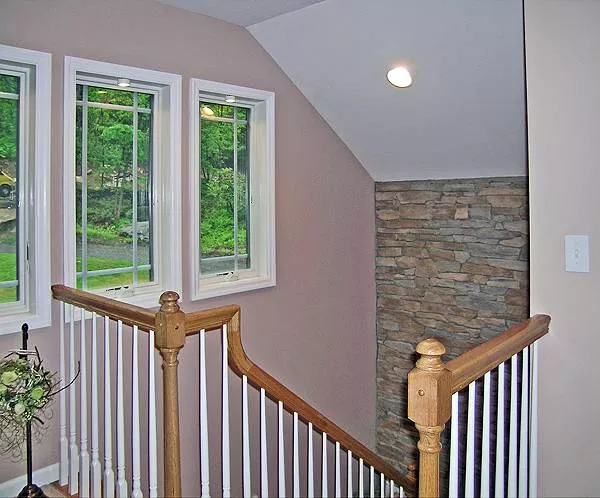

  10. Stair

    Stair

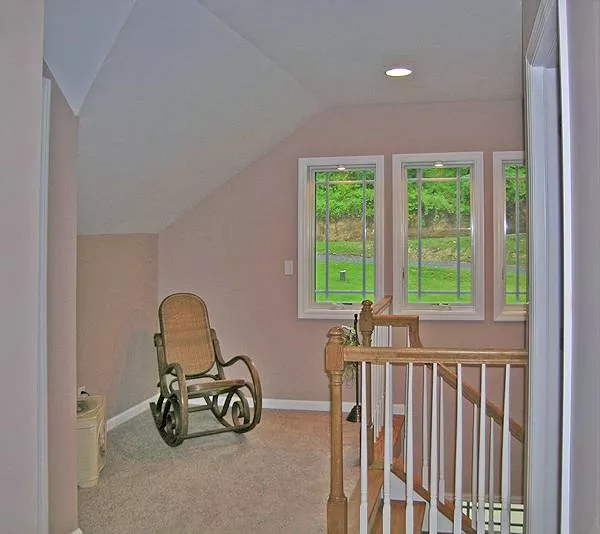

  11. Balcony

    Balcony

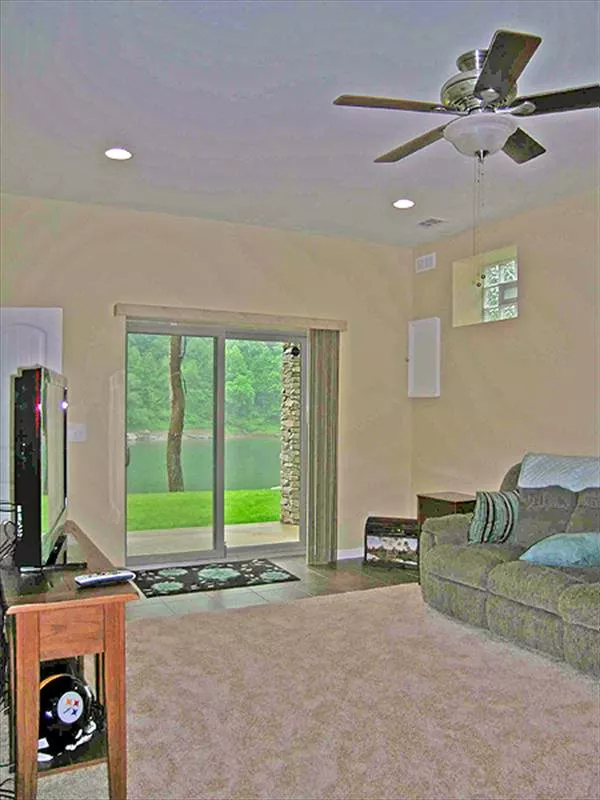

  12. Recreation Room

    Recreation Room
  13. First Floor Plan

    First Floor Plan
  14. Second Floor Plan

    Second Floor Plan
  15. Walk-out Basement Plan

    Walk-out Basement Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This charming Craftsman inspired cottage is perfect for that view lot rerquiring a walk-out basement. For versions of this home without the walk-out see plan #6643. There are charming nooks and spaces throughout, as well as a lovely wide open entertaining area with large windows on 3 sides.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >
© copyright by designer

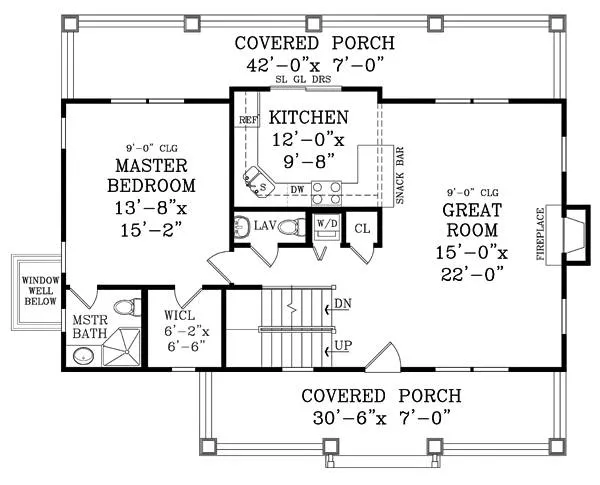

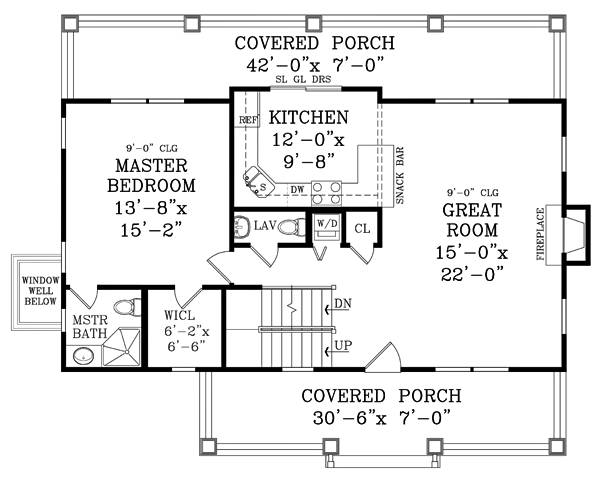

First Floor Plan:

First Floor Plan
© copyright by designer

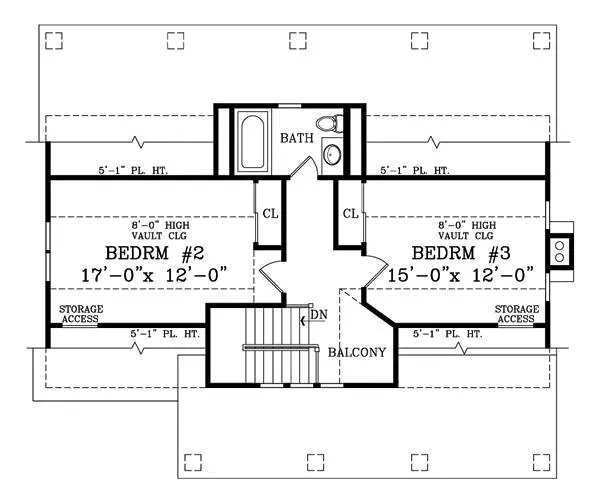

Second Floor Plan:

Second Floor Plan
© copyright by designer

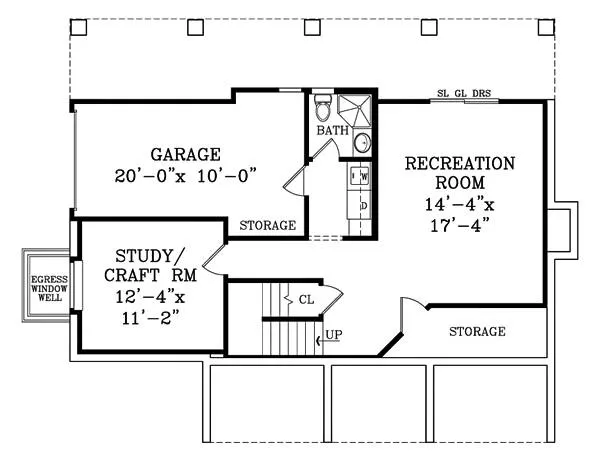

Walk-out Basement Plan:

Walk-out Basement Plan


Plan #1876: CRAFTSMAN COTTAGE II

ENERGY STAR Heated Area: 2,252 Sq. Ft.
First Floor: 975 Sq. Ft.
Second Floor: 672 Sq. Ft.
Lower Floor: 605 Sq. Ft.
Width: 42 Ft.    Depth: 36 Ft. 8 In.
Bedrooms: 4           Bath: 3.5
Garage: 1
Styles: Cottage, Craftsman
Foundation: Partial Basement

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $645.00
 Four Set Package  $745.00
 Eight Set Package  $835.00
 PDF Construction Set - Single Use PDFs Now!   $935.00
 Reproducible Vellum Set  $965.00
Foundation Options
 Partial Basement PDFs Now! available   $0.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Set   $50.00
 Mirror Reverse   $50.00
 High Wind Structural Drawings   $150.00
 Multiple Use License For more than one home   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
42' 0"
Width:
36' 8"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Bungalow
Cottage
Craftsman
Mountain
Vacation
Farm House
Lake
North Carolina
NUMBERS OF ROOMS
4
Bedrooms:
3
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
975 Sq. Ft.
Main Level:
672 Sq. Ft.
Upper Level:
605 Sq. Ft.
Lower Level:
2,252 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
236 Sq. Ft.
Garage:
214 Sq. Ft.
Porch:
281 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
1
Garage Size:
FOUNDATION
Partial Basement
HOUSE AND CEILING HEIGHTS
9'-1"
First Floor Ceiling:
8'-1"
Second Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
8:12
Secondary:
ROOF LOAD
30
Live:
10
Dead:
90
Wind:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Country Kitchen
Covered Front Porch
Covered Rear Porch
Daylight Basement
Drive-under
Fireplace
Foyer
Great Room
Home Office
KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Nook / Breakfast Area
Peninsula / Eating Bar
Rec Room
Walk-in Closet
Walkout Basement
