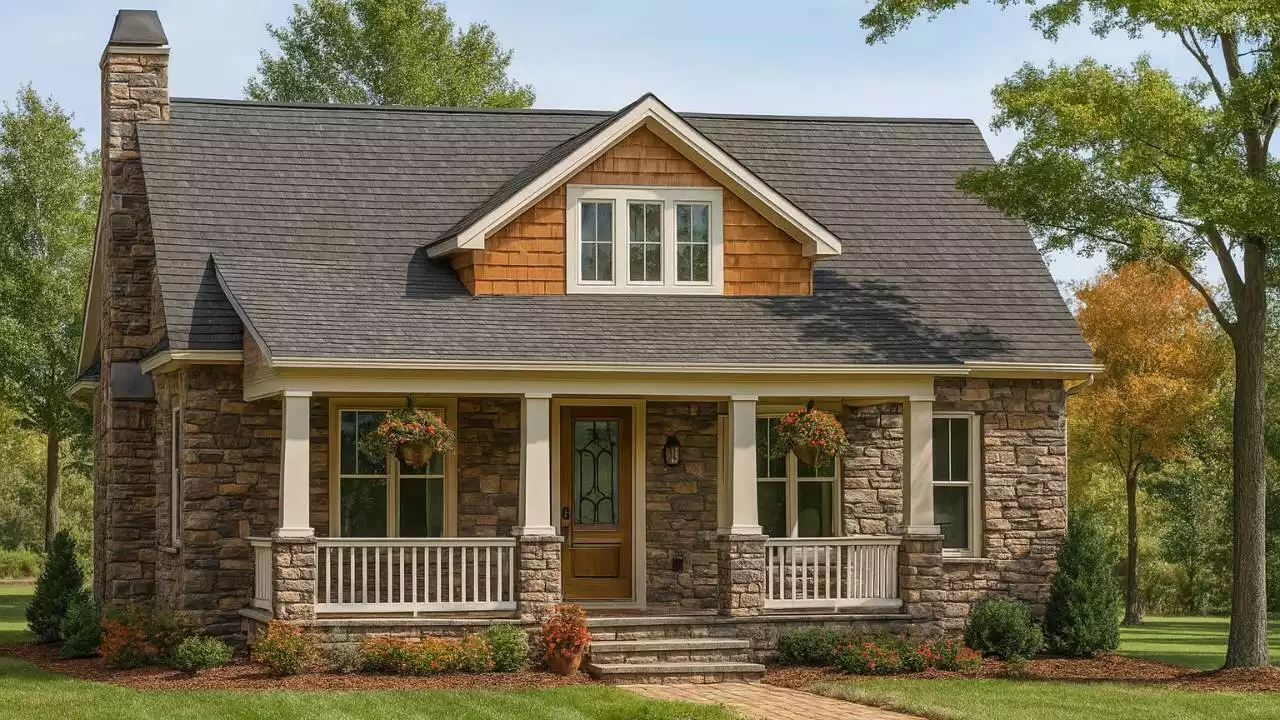

  1. Front Rendering

    Front Rendering

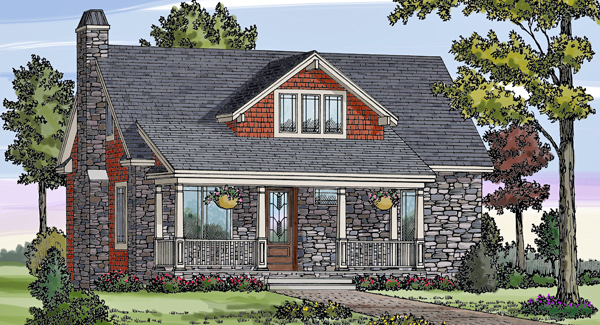

  2. Front Rendering

    Front Rendering

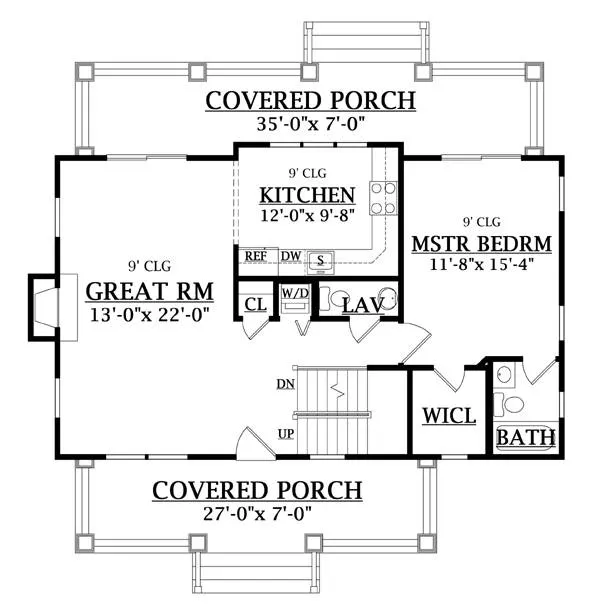

  3. First Floor Plan

    First Floor Plan

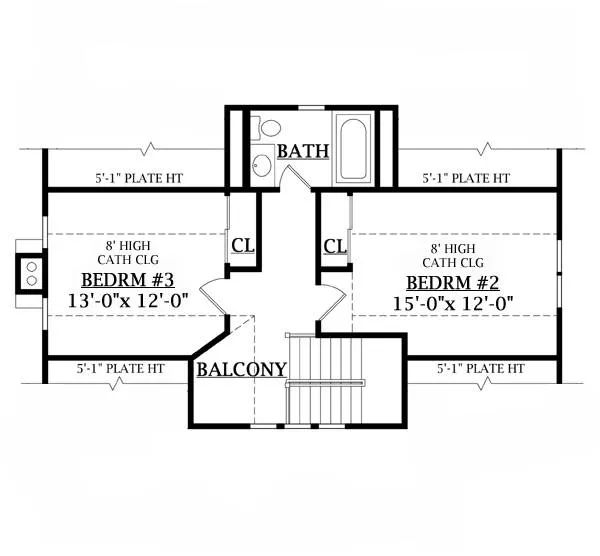

  4. Second Floor Plan

    Second Floor Plan
  5. Rear Rendering

    Rear Rendering
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Rustic Charm permeates this lovely new home. Whether used year-round, or as a getaway place, it provides comfortable living in a modest, affordable size. Front and rear porches afford outdoor living on all sides. The simple layout is also very furnishable, a major asset in a modest home such as this.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.

Second Floor Plan

Second Floor Plan
All images copyrighted by designer.

Rear Rendering

Rear Rendering
All images copyrighted by designer.


Plan #6643: CRAFTSMAN COTTAGE

Heated Area: 1,505 Sq. Ft.
First Floor: 884 Sq. Ft.
Second Floor: 621 Sq. Ft.
Width: 38 Ft.    Depth: 36 Ft. 8 In.
Bedrooms: 3           Bath: 2.5
Styles: Cottage, Craftsman
Foundation: Basement, Crawl Space, Slab Foundation

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 PDF BID SET PDFs Now!   $650.00
 PDF Construction Set - Single Use PDFs Now!   $875.00
 Five Set Package  $875.00
 Reproducible Vellum Set  $905.00
 Eight Set Package  $955.00
 CAD FILE - single use  $1,695.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Set   $50.00
 Material List if available   $85.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 Multiple Use License For more than one home   $250.00
 High Wind Structural Drawings   $150.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
38' 0"
Width:
36' 8"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Bungalow
Cottage
Craftsman
Modern
Southern
Southwest
Spanish
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
884 Sq. Ft.
Main Level:
621 Sq. Ft.
Upper Level:
1,505 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
189 Sq. Ft.
Porch:
245 Sq. Ft.
Deck:
GARAGE
0
Garage Size:
FOUNDATION
Basement
Crawl Space
Slab Foundation
HOUSE AND CEILING HEIGHTS
9'-1"
First Floor Ceiling:
8'-1"
Second Floor Ceiling:
25' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
12:12
Primary:
8:12
Secondary:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Basement
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Fireplace
Foyer
Great Room
KEY FEATURES
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
None
Slab
Suited for narrow lot
Suited for view lot
Walk-in Closet
