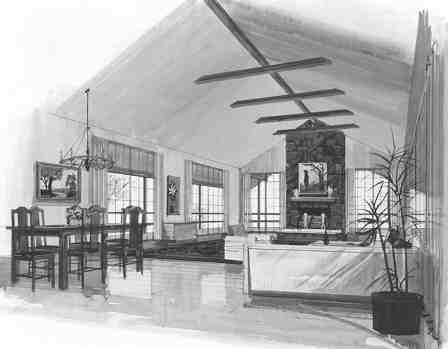

  2. Great Room

    Great Room

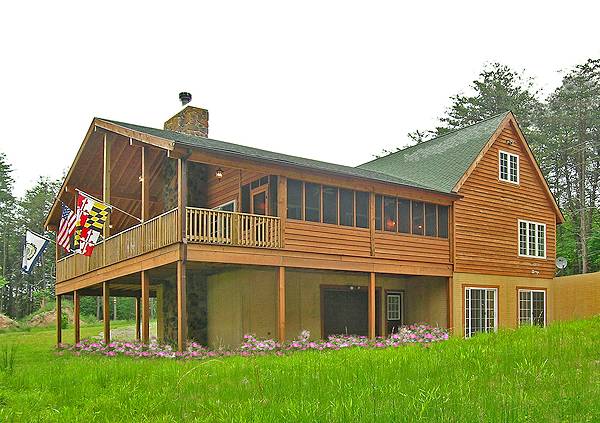

  3. Rear Photo

    Rear Photo

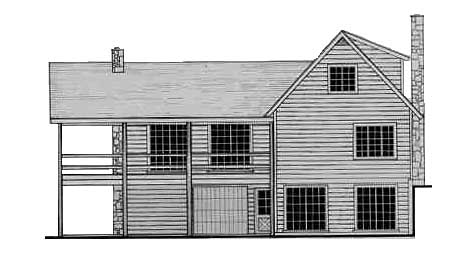

  4. Rear Elevation

    Rear Elevation

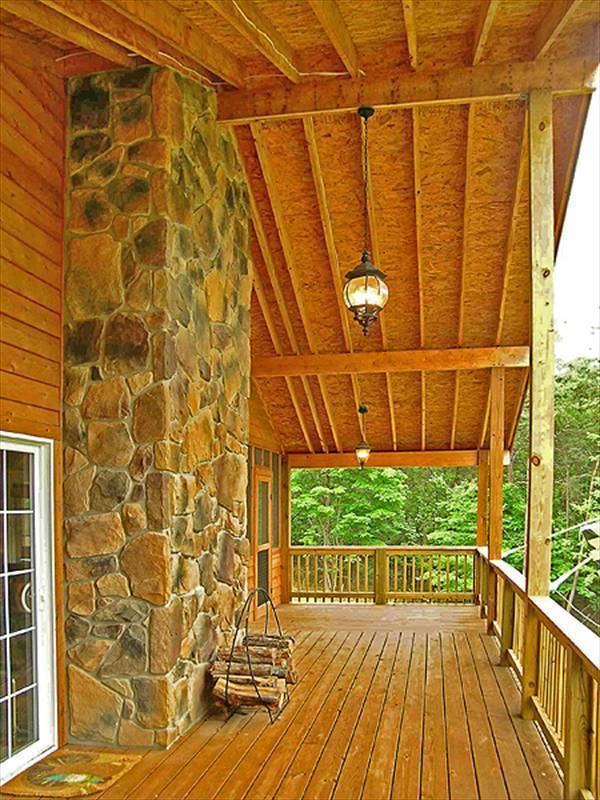

  5. Front Porch

    Front Porch

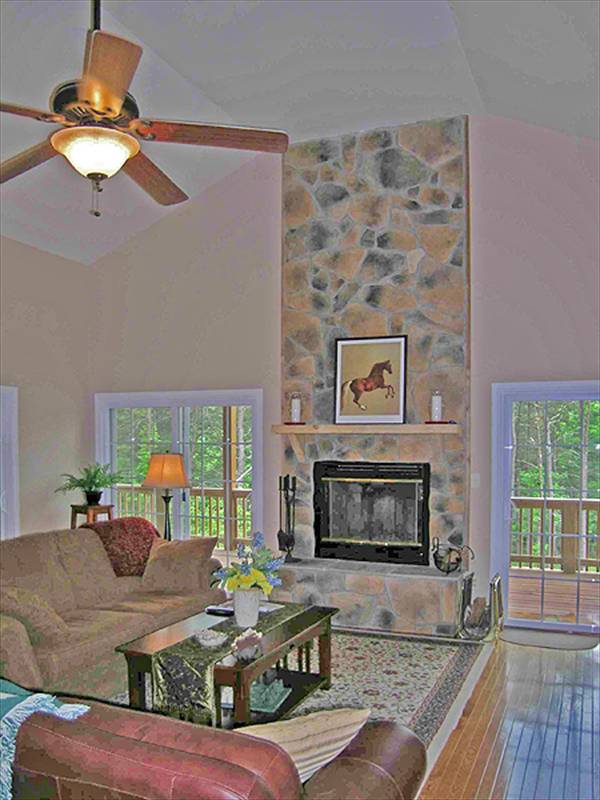

  6. Great Room 2

    Great Room 2

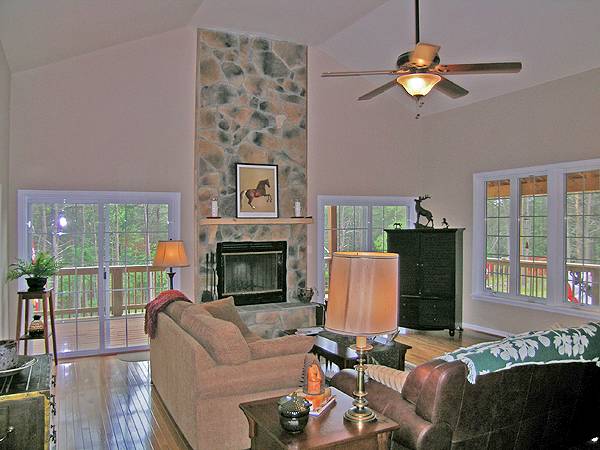

  7. Great Room 1

    Great Room 1
  8. First Floor Plan

    First Floor Plan
  9. Second Floor Plan

    Second Floor Plan
  10. Front Photo

    Front Photo
  11. Lower Level

    Lower Level
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This rustic multi-level cabin offers the flexibility of an optional walk-out basement for building on a sloping lot; it adds 545 sq feet of living space, but may be omitted if you have a level lot. A massive country kitchen and Great Room, each with a fireplace, share the main level with the master bedroom; an impressive deck wraps the Great Room, accessible from sliding glass doors on three sides.  Read more >
read our customer stories and testimonials
"These house plans were GREAT!"
Customer Review:
— Sarah of Henderson, NC
Questions & Answers
Have questions about this plan? Click here for help!

Q.What is the height of the cathedral ceiling in the great room?

A.13' 8"

Save $50 Off Any Plan Through Midnight Tonight! See details >
© copyright by designer

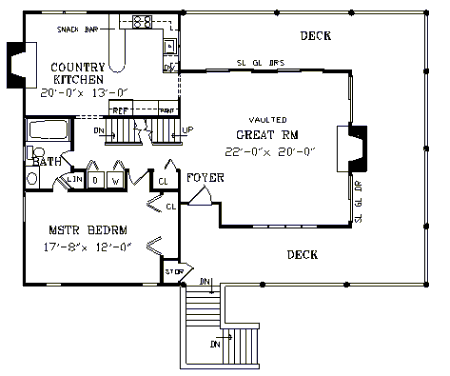

First Floor Plan:

First Floor Plan
© copyright by designer

Second Floor Plan:

Second Floor Plan
© copyright by designer

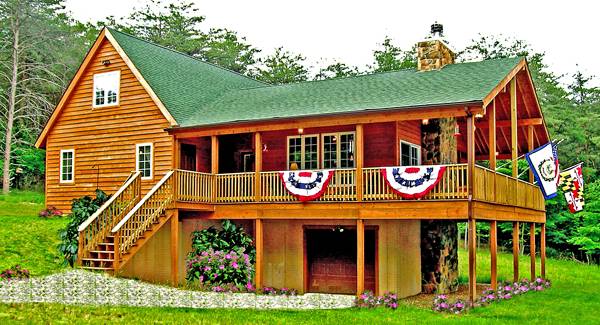

Front Photo:

Front Photo
© copyright by designer

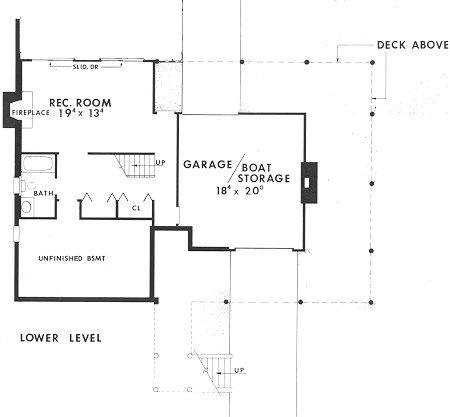

Lower Level:

Lower Level


Plan #3769: CHEYENNE

ENERGY STAR Heated Area: 1,648 Sq. Ft.
First Floor: 1,191 Sq. Ft.
Second Floor: 457 Sq. Ft.
Bonus: 545 Sq. Ft.
Width: 53 Ft.    Depth: 36 Ft.
Bedrooms: 3           Bath: 2
Garage: 2
Styles: Craftsman, Cottage
Foundation: Basement, Crawl Space, Walk-out Basement

Get Your Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Review Set with Material List  $179.00
 PDF BID SET PDFs Now!   $605.00
 Upgrade From a Review Set  $616.00
 Four Set Package  $705.00
 Eight Set Package  $795.00
 PDF Construction Set - Single Use PDFs Now!   $895.00
 Reproducible Vellum Set  $920.00
 CAD FILE - single use  $1,395.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
 Walk-out Basement PDFs Now! available   $175.00
Plan Options
 ENERGY STAR® Approved  $150.00
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Full Reverse Plans If available   $350.00
 High Wind Structural Drawings   $150.00
 Multiple Use License For more than one home   $250.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass by Integrity
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
53' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
EXTERIOR STYLE
Vacation
Mountain
Craftsman
Log
Cottage
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
FINISHED SQUARE FOOTAGE
1,191 Sq. Ft.
Main Level:
457 Sq. Ft.
Upper Level:
1,648 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
382 Sq. Ft.
Garage:
545 Sq. Ft.
Bonus Room:
GARAGE
Under
Garage Location:
2
Garage Size:
FOUNDATION
Basement
Crawl Space
Walk-out Basement
HOUSE AND CEILING HEIGHTS
8'-1"
First Floor Ceiling:
7'-6"
Second Floor Ceiling:
26' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
2x4
Exterior Wall Framing:
ROOF PITCH
5-1/2: 12
Primary:
ROOF LOAD
30
Live:
10
Dead:
INSULATION (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
KEY FEATURES
Attached
Bonus Room
Country Kitchen
Covered Front Porch
Daylight Basement
Deck
Drive Under Garage
Drive-under
Fireplace
Foyer
KEY FEATURES
Great Room
Laundry 1st Fl
Master Bdrm Main Floor
Peninsula / Eating Bar
Rec Room
Unfinished Space
Vaulted Ceilings
Walkout / Finished Basement
Wrap Around Porches
Wraparound Porch
