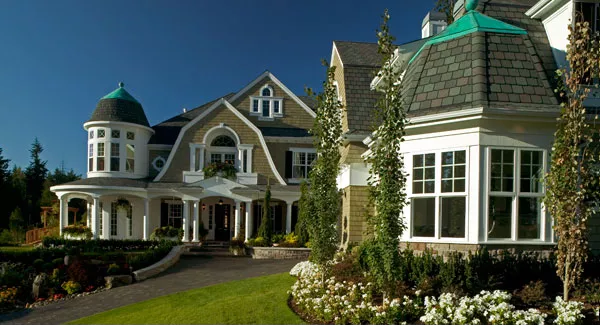

Chatham House Plan

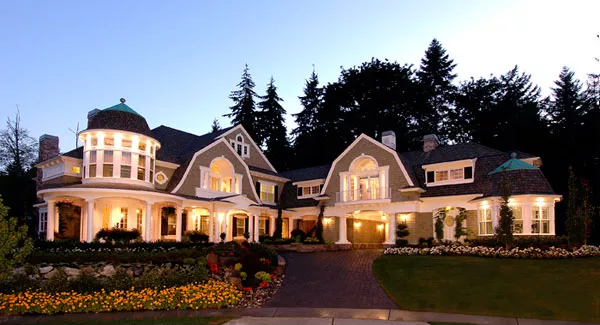

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

Main Floor

Main Floor image of Chatham House Plan
All images copyrighted by designer.

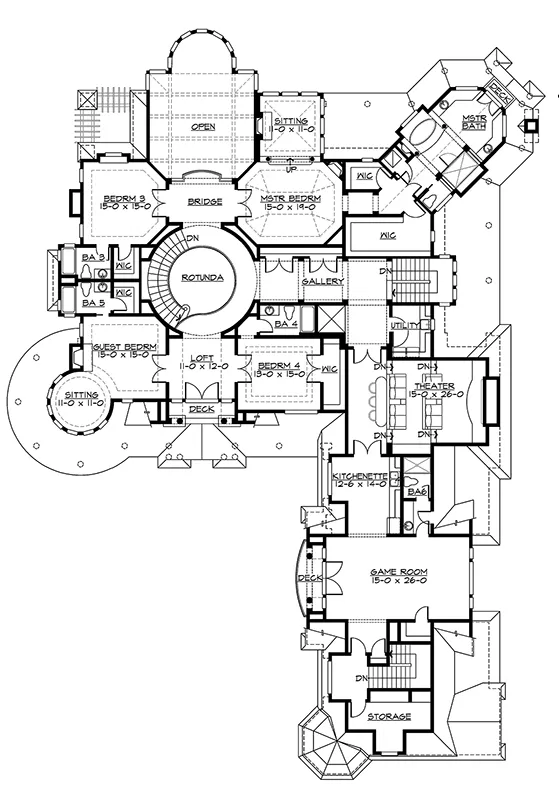

Upper Floor

Upper Floor image of Chatham House Plan
All images copyrighted by designer.





Plan: THD-DTE-3235
Heated Area: 7900 Sq. Ft.
First Floor: 3400 Sq. Ft.
Second Floor: 4500 Sq. Ft.
Width: 95 Ft.    Depth: 135 Ft.
Bedrooms: 4           Bath: 5.2
Garage: 4
Styles: Cape Cod, Farm House
Foundation: Crawl Space
Designer Notes:
Learn more about the amenities and key features of Chatham House Plan.

Available Packages
 Study Plan  $1,995.00
 Five Set Package  $2,095.00
 Eight Set Package  $2,195.00
 PDF Files - Single Use License  $2,295.00
 Vellums - Single Use License  $2,295.00
 CAD Files - Single Use License  $3,295.00
Foundation Options
 Crawl Space  $0.00
Plan Options
 Full Reading Reverse   $125.00
Plan Products
 Additional Sets  $40.00

Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:95' 0"
Depth:135' 0"
Dwelling Number:Single
Bonus Access:2nd Floor
  EXTERIOR STYLE
Cape Cod
Farm House
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:5
Half Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:3400 Sq. Ft.
Upper Level: 4500 Sq. Ft.
Total: 7900 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:1345 Sq. Ft.
  GARAGE
Garage Type:
Garage Size:4
  FOUNDATION
Crawl Space
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:10
Second Floor Ceiling:9
Maximum House Height:39' 6"
  FRAMING INFORMATION
Roof Framing:Combination
Exterior Wall Framing:2x6
  ROOF PITCH
Primary:10
Secondary:28
  ROOF LOAD
Live:25
Dead:15
Wind:85
  INSULATION (R)
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30
  KEY FEATURES
Attached
Bonus Room
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Crawlspace
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Guest Suite
His and Hers Master Closets
Home Office
Kitchen Island
  KEY FEATURES
Laundry 2nd Fl

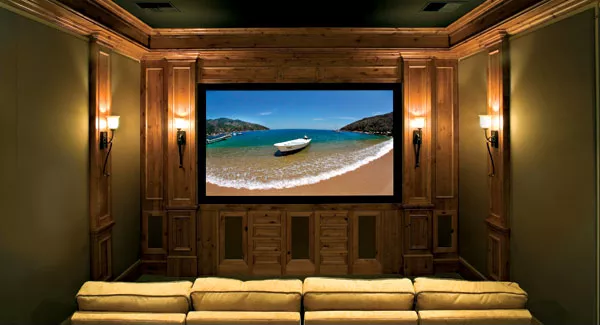

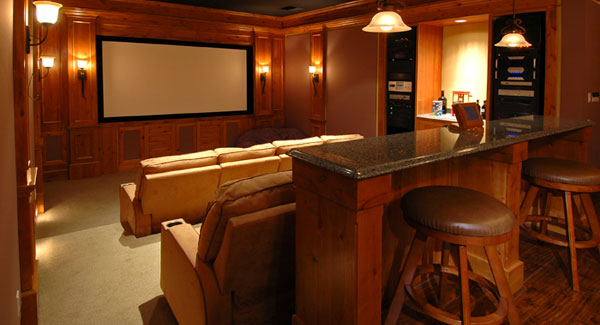

Library/Media Rm
Loft / Balcony
Master Bdrm Upstairs
Mud Room
Nook / Breakfast Area
Rear Porch
Separate Tub and Shower
Side-entry

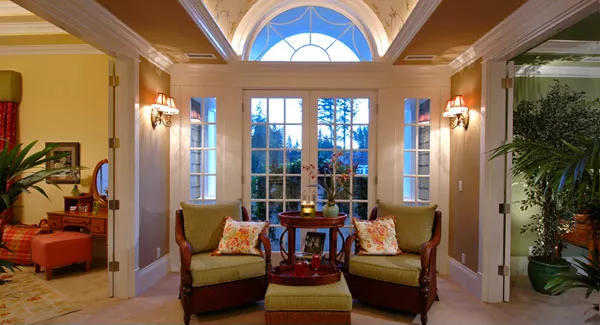

Sitting Area
Split Bedrooms
Storage Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Workshop
Wraparound Porch
