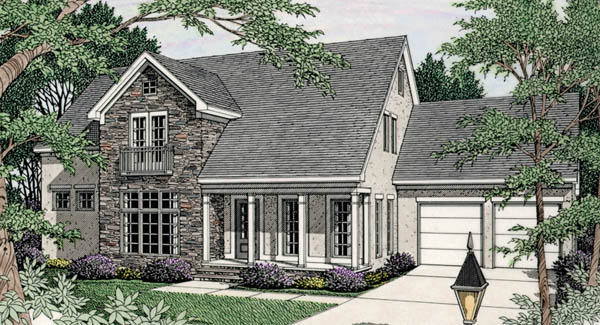

  1. Front Rendering

  2. Front Exterior

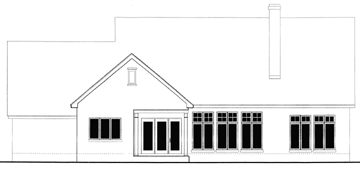

  3. Rear Exterior

  4. First Floor Plan

  5. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
This full featured home provides all the necessities and luxuries for today's family. The curved stair opens to a curved balcony above. The family room and kitchen are covered by a vaulted ceiling. Some amenities include a media room, large pantry, oversized laundry room, spacious master suite, all upstairs bedrooms have walk-in closets and private access to the baths.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!

Spring Savings! Take 15% Off All Packages Over $500! See details

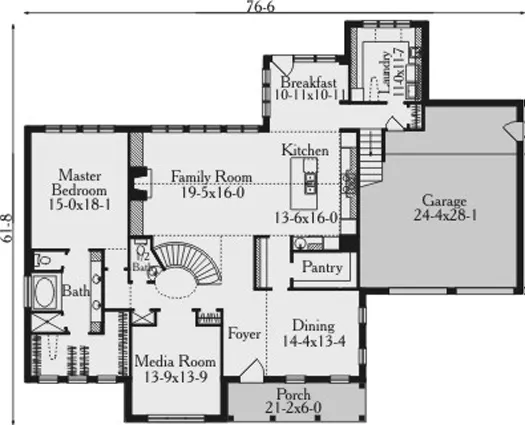

First Floor Plan

First Floor Plan image of Bellaire
All images copyrighted by designer.

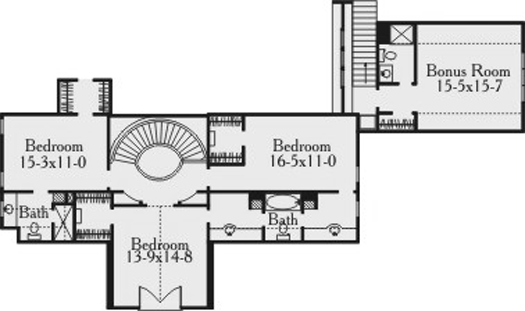

Second Floor Plan

Second Floor Plan image of Bellaire
All images copyrighted by designer.


Plan #3533: Bellaire

Heated Area: 3,941 Sq. Ft.
First Floor: 2,458 Sq. Ft.
Second Floor: 1,483 Sq. Ft.
Width: 76 Ft. 6 In.    Depth: 61 Ft. 8 In.
Bedrooms: 5           Bath: 4.5
Garage: 2
Styles: Cottage, Farm House
Foundation: Crawl Space, Slab
Available Packages
 Five Sets  $1,016.00
 Eight Sets  $1,081.00
 PDF File  $1,215.00
 CAD Files  $2,055.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $55.00
 Materials List   $65.00
 Full Reverse   $255.00
 Mirror Reverse   $50.00
 2x6 Wall Conversion   $255.00
 Re-Use Fee   $355.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
76' 6"
Width:
61' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
EXTERIOR STYLE
Traditional
Cottage
Farm House
Concrete
Southern
FACADE
Stucco/Stone
NUMBERS OF ROOMS
5
Bedrooms:
4
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
2,458 Sq. Ft.
Main Level:
1,483 Sq. Ft.
Upper Level:
3,941 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
729 Sq. Ft.
Garage:
193 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
FOUNDATION
Crawl Space
Slab
HOUSE AND CEILING HEIGHTS
10
First Floor Ceiling:
9
Second Floor Ceiling:
31' 0"
Maximum House Height:
FRAMING INFORMATION
Stick
Roof Framing:
8" Block
Exterior Wall Framing:
ROOF PITCH
10/12
Primary:
ROOF LOAD
30
Live:
15
Dead:
INSULATION (R)
Per IRC Climate Zones
ROOM INFORMATION
21' 4" X 7' 0"
Bath 1
10' 2" X 7' 2"
Bath 2
13' 9" X 14' 8"
Bedroom
16' 5" X 11' 0"
Bedroom
15' 3" X 11' 0"
Bedroom
5' 2" X 7' 0"
Bedroom Closet
4' 9" X 7' 0"
Bedroom Closet
7' 4" X 4' 8"
Bedroom Closet
15' 5" X 15' 7"
Bonus Room
5' 0" X 8' 8"
Bonus Room Bath
8' 0" X 2' 0"
Bonus Room Closet
10' 11" X 10' 11"
Breakfast
14' 4" X 13' 4"
Dining
19' 5" X 16' 0"
Family Room
6' 8" X 13' 4"
Foyer
21' 2" X 6' 0"
Front Porch
24' 4" X 28' 1"
Garage
13' 6" X 16' 0"
Kitchen
11' 0" X 11' 7"
Laundry
10' 9" X 12' 8"
Master Bath
15' 0" X 18' 1"
Master Bedroom
15' 2" X 10' 0"
Master Closet
13' 9" X 13' 9"
Media Room
9' 10" X 5' 8"
Pantry
KEY FEATURES
Attached
Bonus Room
Covered Front Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Great Room
His and Hers Master Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Master Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Slab
Split Bedrooms
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
