Bayfield House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

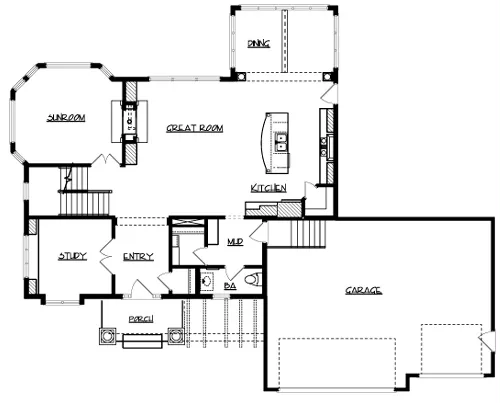

Main Floor Plan

Main Floor Plan image of Bayfield House Plan
All images copyrighted by designer.

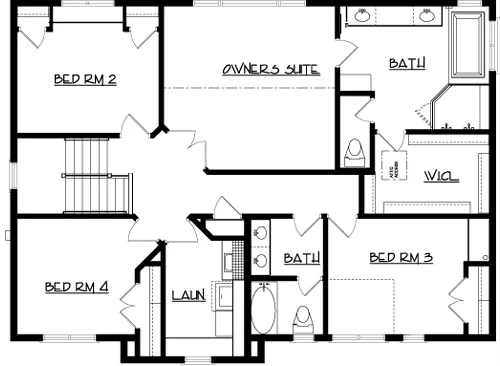

Upper Floor Plan

Upper Floor Plan image of Bayfield House Plan
All images copyrighted by designer.





Plan: THD-NFA-1027
ENERGY STAR Heated Area: 2697 Sq. Ft.
First Floor: 1383 Sq. Ft.
Second Floor: 1314 Sq. Ft.
Lower Floor: 1383 Sq. Ft.
Width: 65 Ft.    Depth: 65 Ft.
Bedrooms: 4           Bath: 3.1
Garage: 3
Styles: Modern, Cottage
Foundation: Basement
Designer Notes:
Learn more about the amenities and key features of Bayfield House Plan.

Available Packages
 One Set  $672.00
 Five Sets  $747.00
 Eight Sets  $835.00
 PDF  $972.00
 CD-ROM CAD FILES  $1,540.00
Foundation Options
 Basement  $0.00
Plan Options
 ENERGY STAR® Approved  $275.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:65' 0"
Depth:65' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Modern
Cottage
European
Mountain
Vacation
  NUMBERS OF ROOMS
Bedrooms:4
Full Baths:3
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:1383 Sq. Ft.
Upper Level: 1314 Sq. Ft.
Lower Level:1383 Sq. Ft.
Total: 2697 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:750 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:3
  FOUNDATION
Basement
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:30' 0"
  INSULATION (R)
Per IRC Climate Zones
  ROOM INFORMATION
Bedroom 213' 0" X 11' 8
Bedroom 312' 5" X 10' 8
Bedroom 411' 0" X 10' 8
Dining Room14' 0" X 10' 0
Garage33' 0" X 24' 0
Great Room15' 0" X 19' 0
Kitchen14' 0" X 19' 0
Owners Suite15' 8" X 15' 4
Study12' 0" X 10' 8
  KEY FEATURES
Attached
Daylight Basement
  KEY FEATURES
Front Porch
