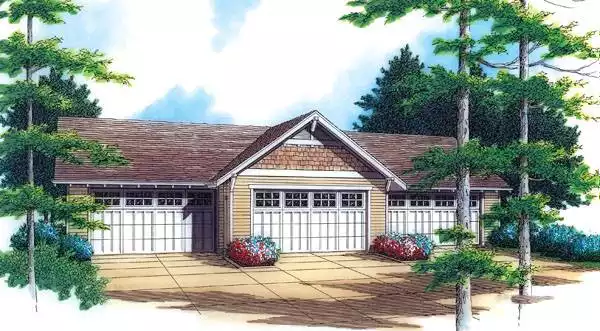

  1. Front Rendering

    Front Rendering

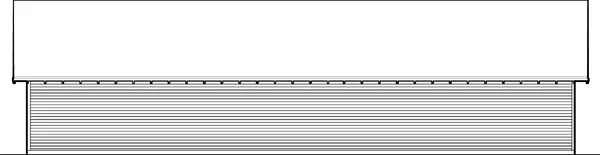

  2. Rear Elevation

    Rear Elevation

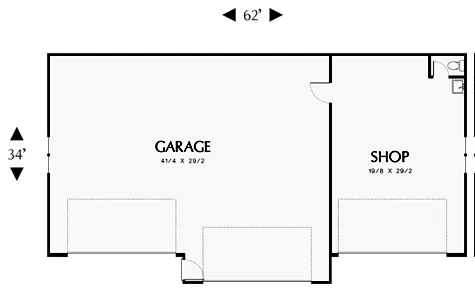

  3. First Floor Plan

    First Floor Plan
All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Needs lots of space to store your vehicles and toys? This garage may be the perfect solution. Finished with horizontal wood siding and cedar shingle detail, it will complement just about any craftsman-style home. If you like, the right side can be used as a shop area.  Read more >
Questions & Answers
Have questions about this plan? Click here for help!


First Floor Plan

First Floor Plan
All images copyrighted by designer.


Plan #2783: Bakewell

Heated Area: 1,948 Sq. Ft.
Width: 62 Ft.    Depth: 34 Ft.
Garage: 6
Styles: Country, Craftsman
Available Packages
 PDF Files - Single Build  $600.00
 5 Printed Paper Sets  $625.00
 AutoCAD Files  $1,200.00
Plan Options
 Additional Sets   $10.00
 Full Reverse Sets   $100.00

Best Price Guarantee, learn more
Architect's Preferred Products:
integrityULTREX® Fiberglass by Integrity
FyponDecorative Millwork and Columns
Therma-TruClassic-Craft® American Collection™ Fiberglass Entry Door
Lumber LiquidatorsPrefinished Hardwood Flooring
DavinciDaVinci Roofscapes
Slates & Shakes
Clopay DoorTry Clopay's®
Door Imagination System
Plan Specifications
GENERAL HOUSE INFORMATION
1
Number of Stories:
62' 0"
Width:
34' 0"
Depth:
Garage
Dwelling Number:
EXTERIOR STYLE
Country
Craftsman
Traditional
FINISHED SQUARE FOOTAGE
1,948 Sq. Ft.
Total:
GARAGE
Front
Garage Location:
6
Garage Size:
FRAMING INFORMATION
2x6
Exterior Wall Framing:
ROOF LOAD
25
Live:
15
Dead:
80
Wind:
INSULATION (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
KEY FEATURES
Attached
KEY FEATURES
