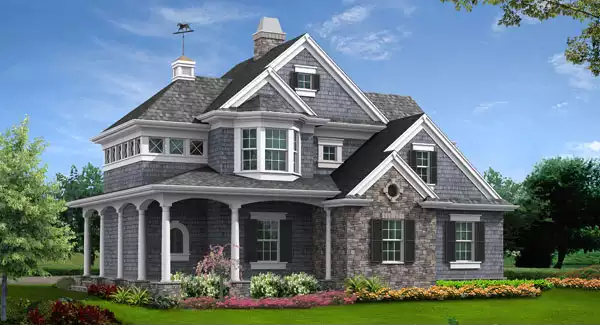

Astoria Cottage House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

Main Floor

Main Floor image of Astoria Cottage House Plan
All images copyrighted by designer.

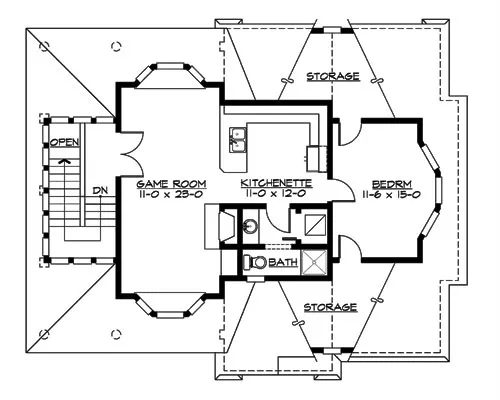

Upper Floor

Upper Floor image of Astoria Cottage House Plan
All images copyrighted by designer.





Plan: THD-DTE-3204
Heated Area: 825 Sq. Ft.
First Floor: 130 Sq. Ft.
Second Floor: 695 Sq. Ft.
Width: 47 Ft.    Depth: 38 Ft.
Bedrooms: 1           Bath: 1
Garage: 5
Styles: Farm House, Victorian
Foundation: Slab
Designer Notes:
Learn more about the amenities and key features of Astoria Cottage House Plan.


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Study Plan  $495.00
 Five Set Package  $550.00
 Eight Set Package  $595.00
 PDF Files - Single Use License PDFs Now!   $795.00
 Vellums - Single Use License  $795.00
 CAD Files - Single Use License  $1,295.00
Foundation Options
 Slab  $0.00
Plan Options
 Full Reading Reverse   $125.00
Plan Products
 Additional Sets  $40.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:47' 0"
Depth:38' 0"
Dwelling Number:Single
  EXTERIOR STYLE
Farm House
Victorian
Cottage
  NUMBERS OF ROOMS
Bedrooms:1
Full Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:130 Sq. Ft.
Upper Level: 695 Sq. Ft.
Total: 825 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:1215 Sq. Ft.
  GARAGE
Garage Type:
Garage Size:5
  FOUNDATION
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:10
Maximum House Height:32' 0"
  FRAMING INFORMATION
Roof Framing:Truss
Exterior Wall Framing:2x6
  ROOF PITCH
Primary:10
Secondary:4
  ROOF LOAD
Live:25
Dead:15
Wind:85
  INSULATION (R)
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30
  KEY FEATURES
Covered Front Porch
Fireplace
Open Floor Plan
Peninsula / Eating Bar
  KEY FEATURES
Storage Space
Tandem
With Living Space
Workshop
Recently Viewed House Plans

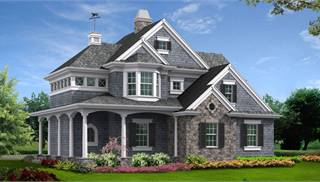

Plan 3204
