ASHEVILLE SMALL COTTAGE House Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

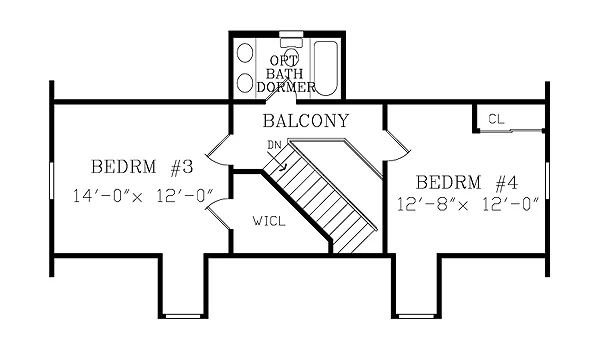

Second Floor Plan

Second Floor Plan image of ASHEVILLE SMALL COTTAGE House Plan
All images copyrighted by designer.

First Floor Plan

First Floor Plan image of ASHEVILLE SMALL COTTAGE House Plan
All images copyrighted by designer.

Alternate Floor Plan

Alternate Floor Plan image of ASHEVILLE SMALL COTTAGE House Plan
All images copyrighted by designer.

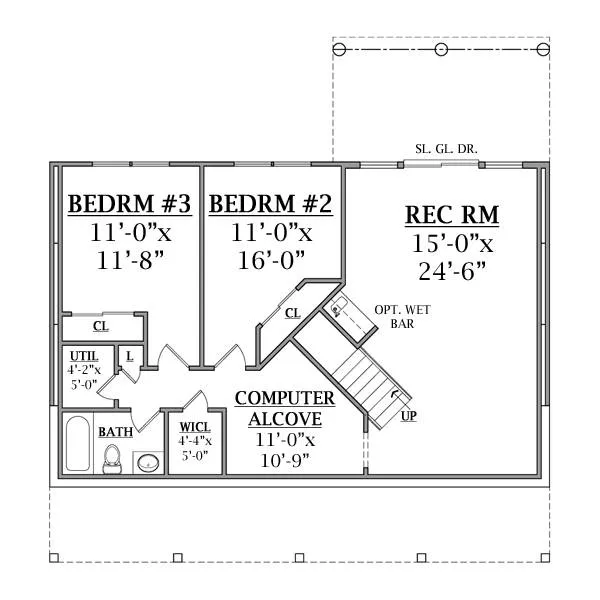

Walk-out Basement Plan

Walk-out Basement Plan image of ASHEVILLE SMALL COTTAGE House Plan
All images copyrighted by designer.





Plan: THD-JAA-3800
ENERGY STAR Heated Area: 1040 Sq. Ft.
First Floor: 1040 Sq. Ft.
Bonus: 597 Sq. Ft.
Width: 40 Ft.    Depth: 32 Ft.
Bedrooms: 3           Bath: 2
Styles: Cottage, Country
Foundation: Basement, Crawl Space, ICF - Basement (Insul. Conc. Forms), Slab Foundation, Walk-out Basement
Designer Notes:
Learn more about the amenities and key features of ASHEVILLE SMALL COTTAGE House Plan.


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Available Packages
 Review Set with Material List  $179.00
 Upgrade From a Review Set  $506.00
 PDF BID SET PDFs Now!   $525.00
 Four Set Package  $605.00
 Eight Set Package  $685.00
 PDF Construction Set - Single Use PDFs Now!   $785.00
 Reproducible Vellum Set  $810.00
 CAD FILE - single use  $1,195.00
Foundation Options
 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
 ICF - Basement (Insul. Conc. F...  $150.00
 Walk-out Basement PDFs Now! available   $175.00
Plan Options
 ENERGY STAR® Approved  $275.00
 Additional Set   $50.00
 Material List if available   $75.00
 Mirror Reverse   $50.00
 Multiple Use License For more than one home   $250.00
 Full Reverse Plans If available   $350.00
 High Wind Structural Drawings   $150.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:1
Width:40' 0"
Depth:32' 0"
Dwelling Number:Single
Bonus Access:2nd Floor
  EXTERIOR STYLE
Vacation
Cottage
Country
Ranch
Florida
Bungalow
Concrete
Farm House
Mountain
  FACADE
Owner's Choice
OwnersChoice
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
  FINISHED SQUARE FOOTAGE
Main Level:1040 Sq. Ft.
Total: 1040 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Bonus Room:597 Sq. Ft.
  GARAGE
Garage Size:
  FOUNDATION
Basement
Crawl Space
ICF - Basement (Insul. Conc. Forms)
Slab Foundation
Walk-out Basement
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:9'-1"
Maximum House Height:22' 6"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:11/ 12
  ROOF LOAD
Live:30
Dead:10
  INSULATION (R)
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19
  KEY FEATURES
3 Baths
Basement
Country Kitchen
Covered Front Porch
Crawlspace
Daylight Basement
Expandable
Five Bedrooms
  KEY FEATURES
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
None
Slab
Unfinished Space
