Plan THD-WDF-7739

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.

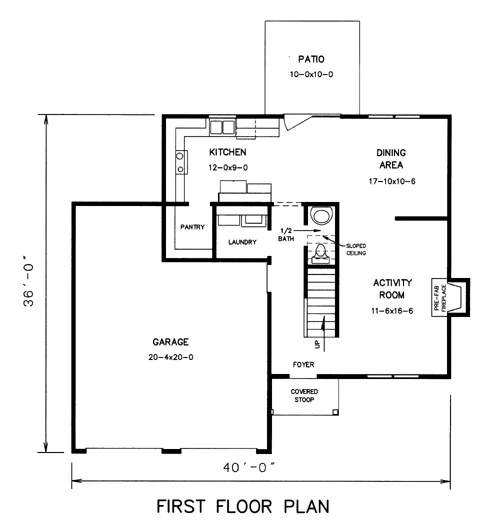

1st floor plan

1st floor plan image of Plan THD-WDF-7739
All images copyrighted by designer.

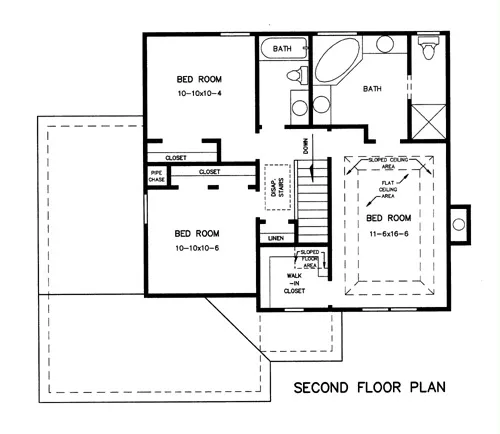

2nd floor plan

2nd floor plan image of Plan THD-WDF-7739
All images copyrighted by designer.





Plan:
Heated Area: 1553 Sq. Ft.
First Floor: 716 Sq. Ft.
Second Floor: 837 Sq. Ft.
Width: 40 Ft.    Depth: 36 Ft.
Bedrooms: 3           Bath: 2.1
Garage: 2
Styles: Colonial, Country
Foundation: Crawl Space, Slab
Designer Notes:
Learn more about the amenities and key features of Plan THD-WDF-7739.

Available Packages
 Four Sets  $645.00
 Eight Sets  $690.00
 Vellums  $895.00
 PDF File  $895.00
Foundation Options
 Crawl Space  $0.00
 Slab  $0.00
Plan Options
 Additional Sets   $75.00
 Mirror Reverse   $50.00
 Materials List   $90.00
 right reading reverse   $175.00
Best Price Guarantee, learn more
Architect's Preferred Products:
Decorative Millwork and Columns
Visit Fypon >
Classic-Craft® American Collection™ Fiberglass Entry Door
Visit Therma-Tru >
Prefinished Hardwood Flooring
Visit Lumber Liquidators >
Decorative Window Treatments
Visit Smith + Noble >
Plan Specifications
  GENERAL HOUSE INFORMATION
Number of Stories:2
Width:40' 0"
Depth:36' 0"
Dwelling Number:Single
Bonus Access:None
  EXTERIOR STYLE
Traditional
Narrow
Colonial
Country
  NUMBERS OF ROOMS
Bedrooms:3
Full Baths:2
Half Baths:1
  FINISHED SQUARE FOOTAGE
Main Level:716 Sq. Ft.
Upper Level: 837 Sq. Ft.
Total: 1553 Sq. Ft.
  UNFINISHED SQUARE FOOTAGE
Garage:480 Sq. Ft.
Porch:29 Sq. Ft.
Patio:100 Sq. Ft.
  GARAGE
Garage Type:Attached
Garage Size:2
  FOUNDATION
Crawl Space
Slab
  HOUSE AND CEILING HEIGHTS
First Floor Ceiling:8
Second Floor Ceiling:8
Maximum House Height:30' 0"
  FRAMING INFORMATION
Roof Framing:Stick
Exterior Wall Framing:2x4
  ROOF PITCH
Primary:10/12
Secondary:3/12
  ROOF LOAD
Live:20
Dead:10
Wind:80
  INSULATION (R)
Exterior Wall:17
Interior Wall:0
Ceiling:30
Floor:13
  KEY FEATURES
Alternate double garage with breakfast room
Attached
Crawlspace
Deck
garden master bath
Great Room
Laundry 1st Fl
  KEY FEATURES
Master Bdrm Upstairs
Slab
tray ceiling in master bed room
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Workshop
