  1. Front Rendering

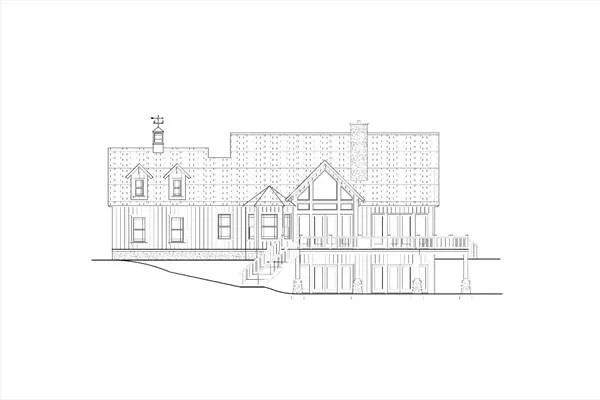

  2. Rear Elevation

  3. First Floor Plan

  4. Second Floor Plan

All images copyrighted by designer
Photographed homes may have been modified from original design. Construction plans are provided as per renderings.
Questions & Answers
Have questions about this plan? Click here for help!

Save $50 Off Any Plan Through Midnight Tonight! See details >

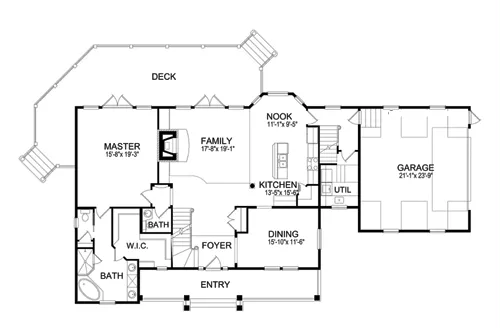

First Floor Plan

First Floor Plan image of
All images copyrighted by designer.

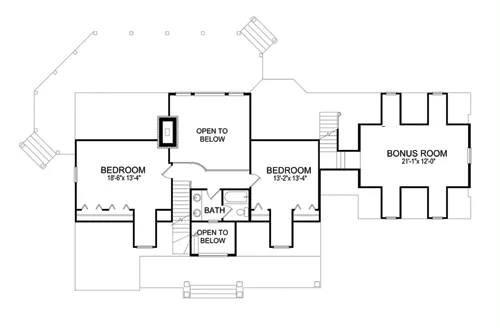

Second Floor Plan

Second Floor Plan image of
All images copyrighted by designer.


Plan #5060:

Heated Area: 2,508 Sq. Ft.
First Floor: 1,799 Sq. Ft.
Second Floor: 709 Sq. Ft.
Bonus: 384 Sq. Ft.
Width: 77 Ft. 4 In.    Depth: 41 Ft. 4 In.
Bedrooms: 3           Bath: 2.5
Garage: 2
Styles: Cottage, Farm House
Foundation: Basement (Standard), Crawl Space Option - 1-2 week turnaround, Slab Option
Available Packages
 Study Plans - PDF  $99.00
 FIVE SETS OF BONDPRINTS  $890.00
 REPRODUCIBLES  $1,200.00
 PDF File Package  $1,200.00
 CAD FILES  $2,400.00
Foundation Options
 Basement (Standard)  $0.00
 Crawl Space Option - 1-2 week ...  $450.00
 Slab Option  $675.00
Plan Options
 Additional sets   $45.00
 Mirror Reverse   $15.00
 Builder's sales flyer   $45.00
 Builder's Marketing Package   $75.00

Best Price Guarantee, learn more
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
Plan Specifications
GENERAL HOUSE INFORMATION
2
Number of Stories:
77' 4"
Width:
41' 4"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
EXTERIOR STYLE
Traditional
Sloping Lot
Daylight Bsmt
Mountain
Cottage
Farm House
FACADE
Siding
Siding/Stone
NUMBERS OF ROOMS
3
Bedrooms:
2
Full Baths:
1
Half Baths:
FINISHED SQUARE FOOTAGE
1,799 Sq. Ft.
Main Level:
709 Sq. Ft.
Upper Level:
2,508 Sq. Ft.
Total:
UNFINISHED SQUARE FOOTAGE
534 Sq. Ft.
Garage:
384 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
FOUNDATION
Basement (Standard)
Crawl Space Option - 1-2 week turnaround
Slab Option
FRAMING INFORMATION
Truss
Roof Framing:
2x6
Exterior Wall Framing:
INSULATION (R)
Per IRC Climate Zones
KEY FEATURES
Attached
Daylight Basement
KEY FEATURES
Front Porch
