Sq Ft
4,124 FT²
Bed
6
Bath
5
Stories
1.5
Garage
3
Depth
84' 8"
Width
82' 4"
On Sale
$1,440.00
$1,440.00
© copyright by designer
View All 1 Images | Photographs may reflect modified home
Sq Ft
4,124 FT²
From
$1,440.00
Bed
6
Bath
5
Stories
1.5
Garage
3
Depth
84' 8"
Width
82' 4"

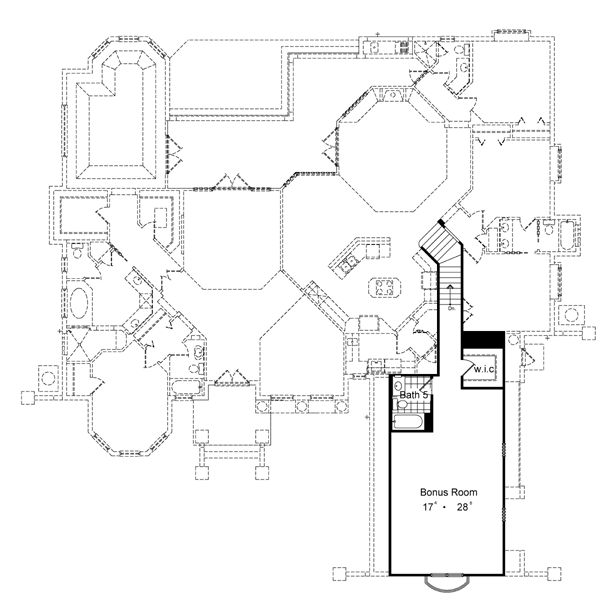

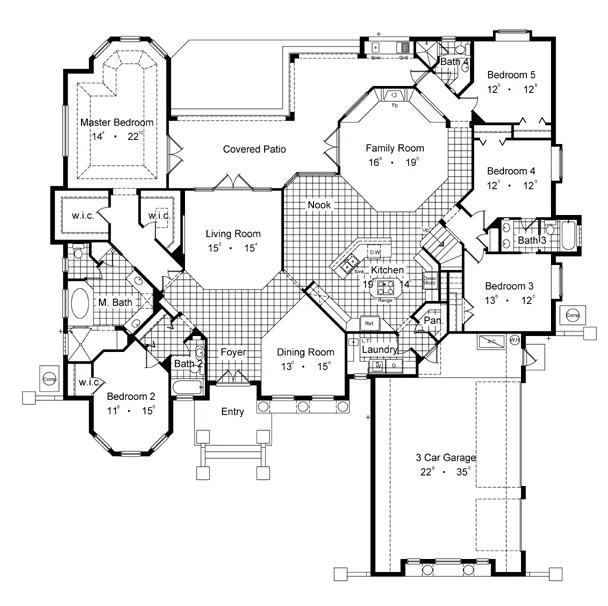

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

A pristine Mediterranean classic designed with every amenity and then some. The unique floor plan of this home creates graceful open spaces that combine with its expansive windows for an elegant look that is hard to surpass. Upon entry into the foyer area you are greeted with the expanse of this home via the long vista views. Straight ahead is the living room which opens to the covered patio beyond. To the right is the formal dining room and the nook, kitchen and family room beyond. To the left is the grand master suite and bedroom 2 which could also be used as a den / study. Thru the double doors we enter the lavish master suite complete with sitting area, his and her walk-in closets and a large master bath area. The master bath has a large garden tub, walk-in door-less shower, his and her vanities with make-up area and a private toilet chamber. Note the master bedroom also has access to the covered patio.

Passed the formal dining area we enter the family part of this home with its large nook area and mitered glass looking out thru the patio to the yard beyond. The kitchen has dual islands and a walk-in pantry. Across from the pantry is the large laundry room with full cabinetry on two walls. The octagonal family room has a fireplace and entertainment media areas. Secondary bedrooms 3 and 4 share a jack-n-jill bath while bedroom 5 shares a pool bath.

The covered patio has a summer kitchen area for entertaining friends.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Walk-in Pantry
Bedroom features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Open Floor Plan
Garage Location
Side
Garage Options
Attached
Side-entry
4,124 Ft
2
Total Heated
3,464 Ft
2
1st Floor
660 Ft
2
2nd Floor
6
Bedrooms
5
Bathrooms
3
Garage
1.5
Stories
82' 4"
Width
84' 8"
Depth
Block
Framing
Truss
Roof Framing
8/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
810 Ft
2
Garage
101 Ft
2
Porch
454 Ft
2
Patio
Collections


Plan Package Options

 Select Plan Package
$800
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800
$1,600
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,600
$1,800
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,800
$1,950
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,950
$3,200
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
