Sq Ft
4,674 FT²
Bed
4
Bath
4.5
Stories
2
Garage
4
Depth
78'
Width
109'
On Sale
$1,485.00
$1,485.00
© copyright by designer
View All 11 Images | Photographs may reflect modified home
Sq Ft
4,674 FT²
From
$1,485.00
Bed
4
Bath
4.5
Stories
2
Garage
4
Depth
78'
Width
109'

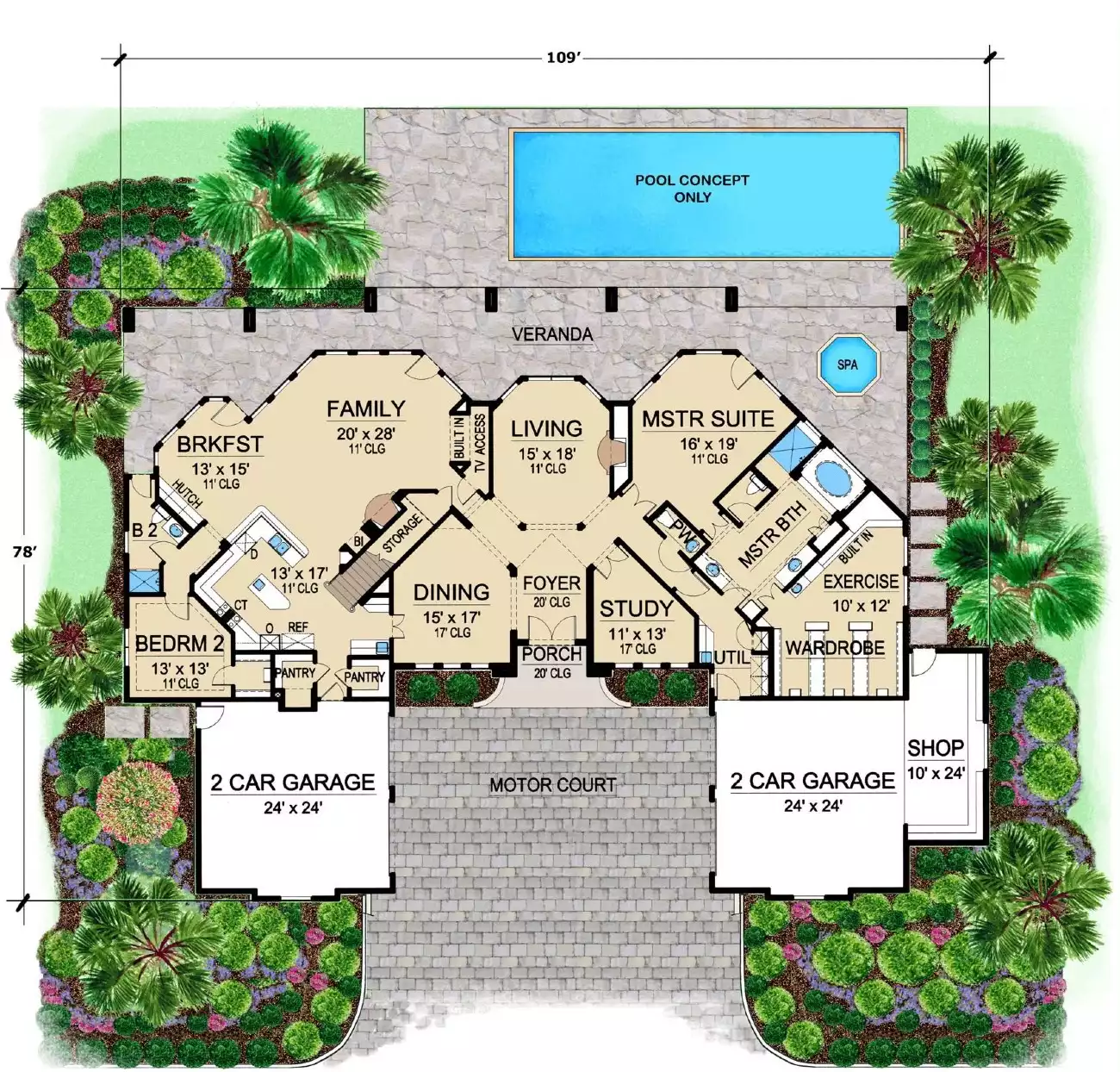

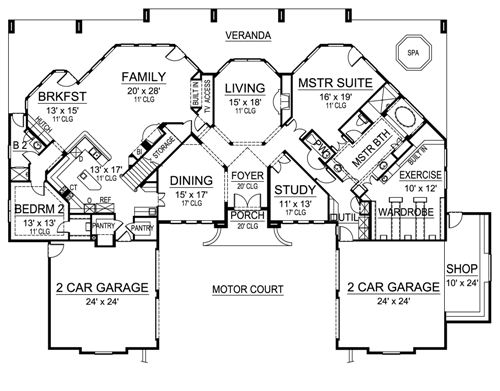

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

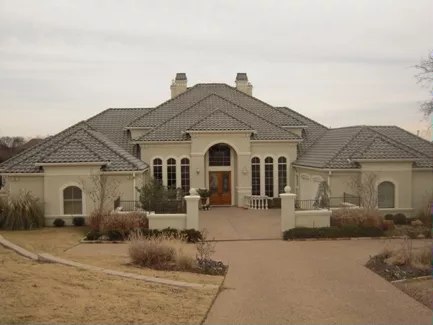

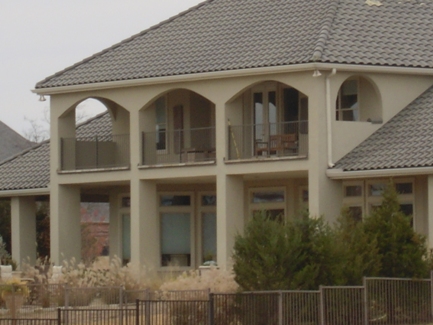

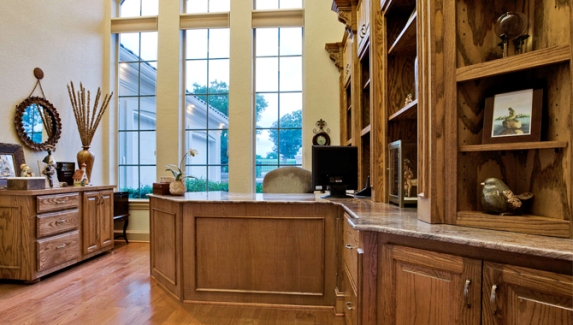

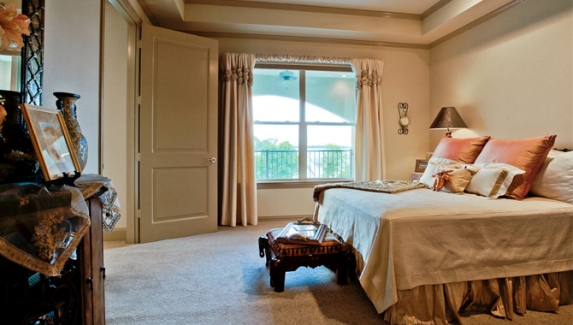

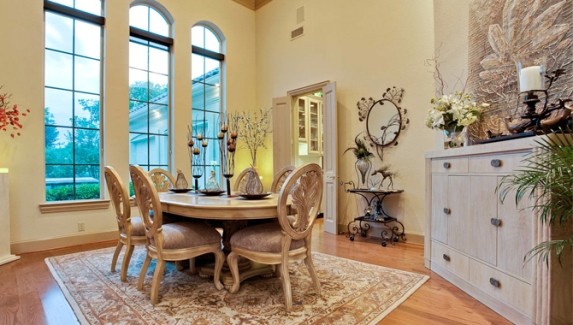

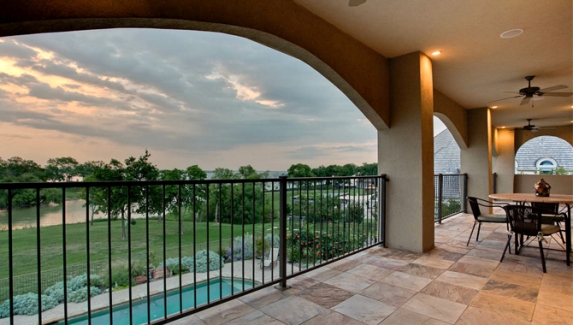

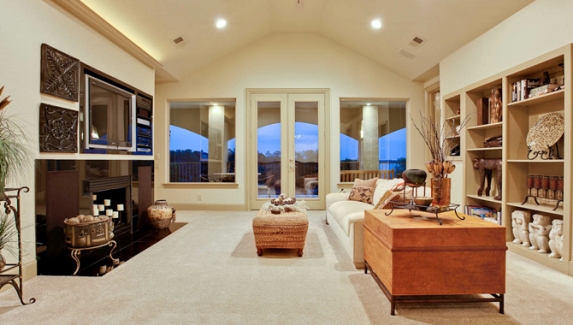

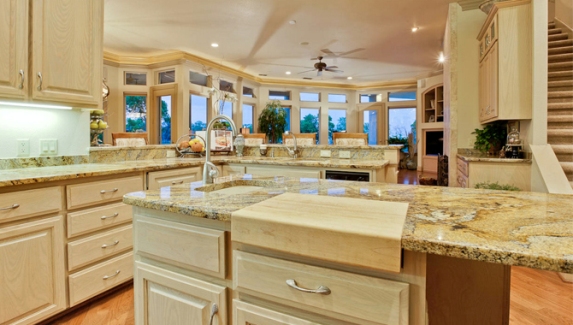

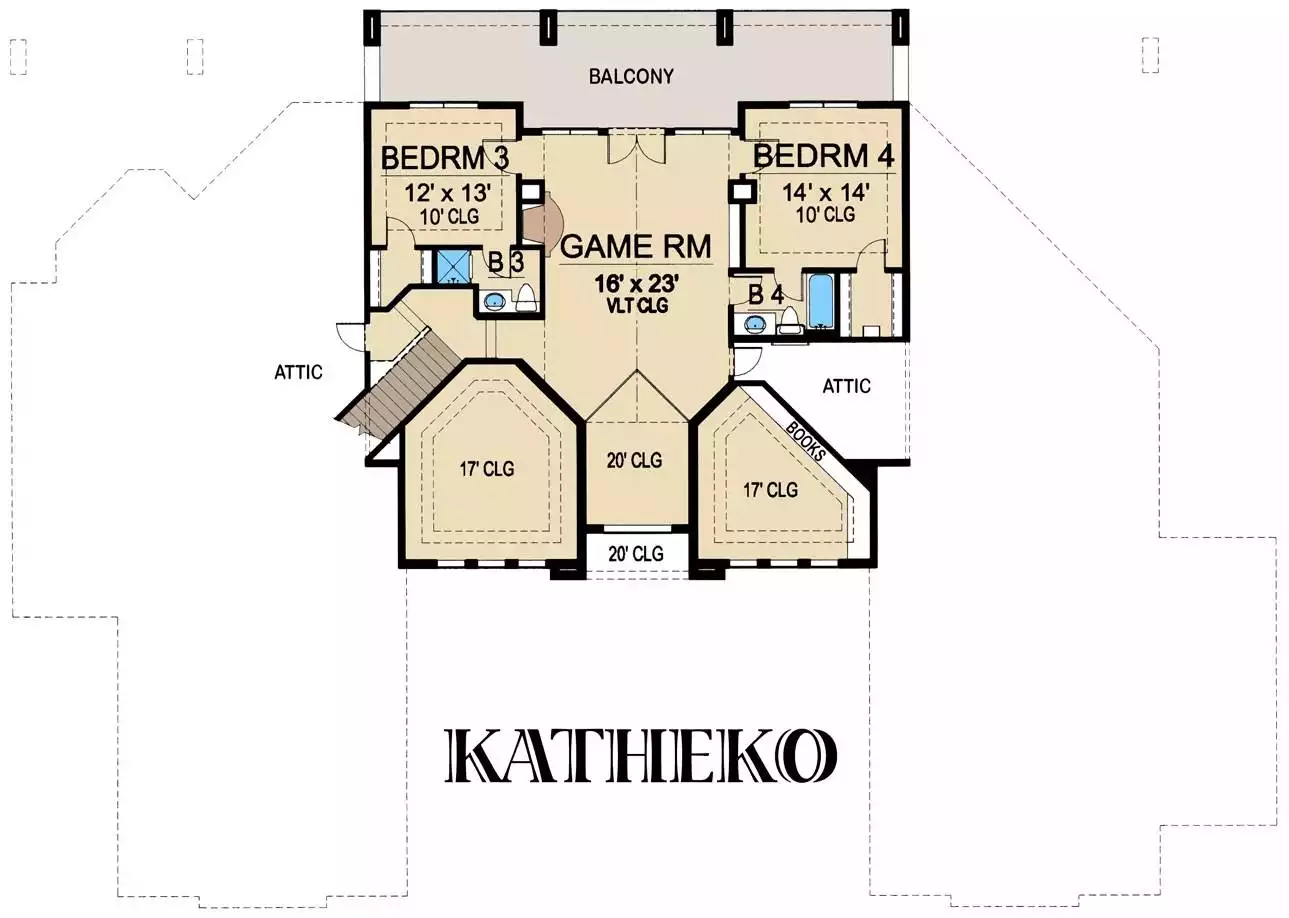

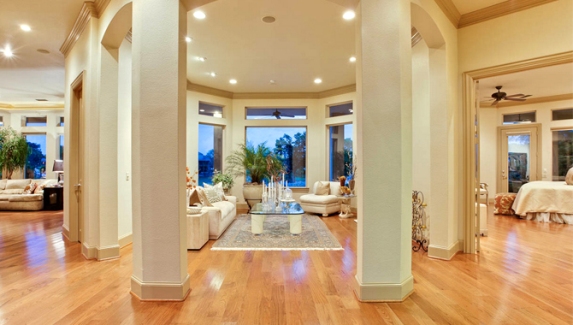

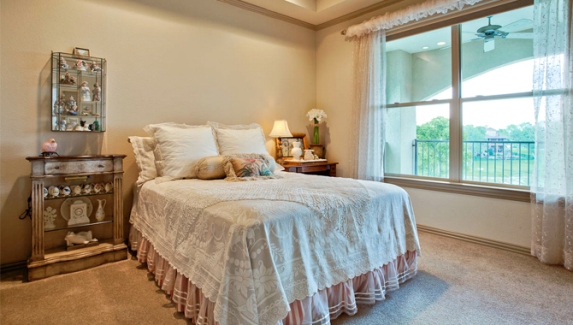

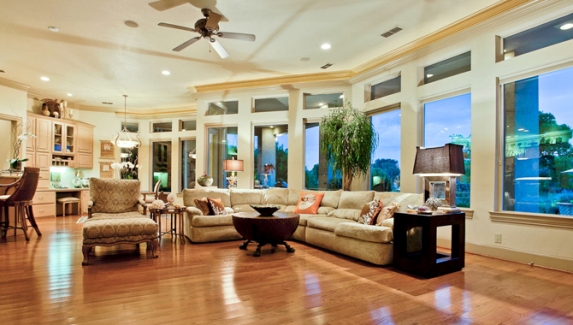

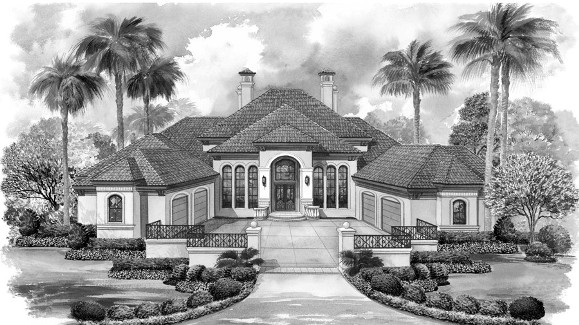

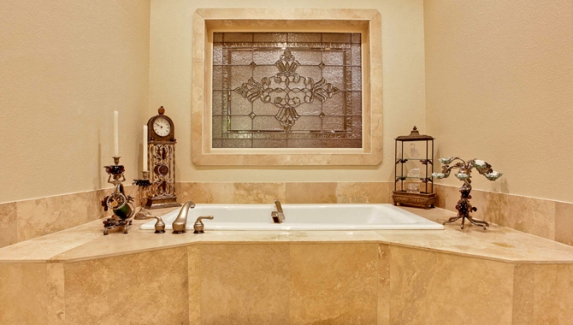

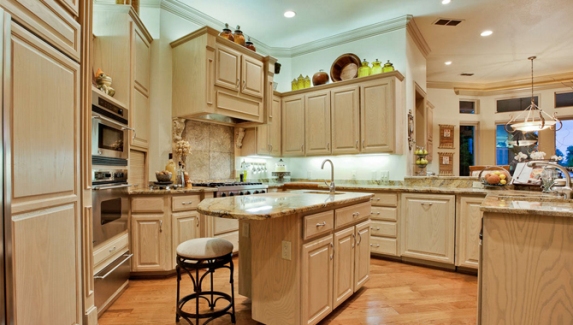

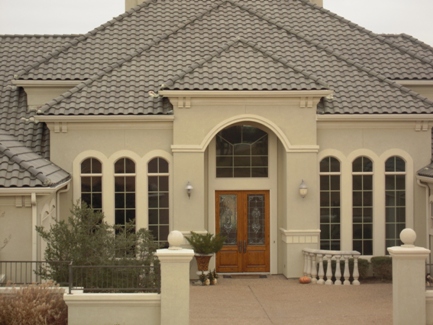

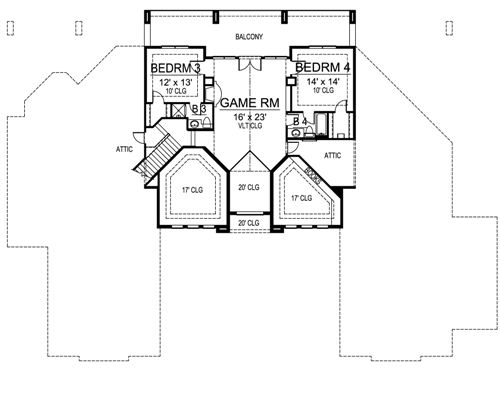

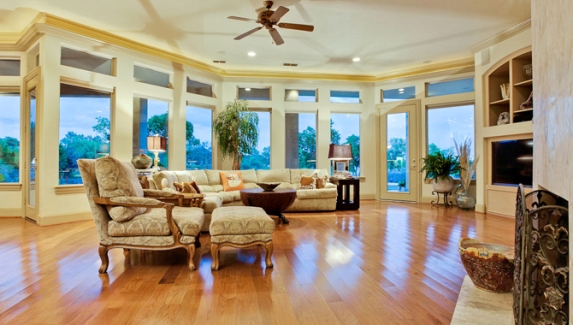

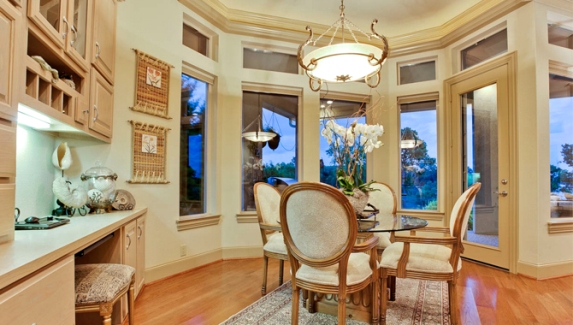

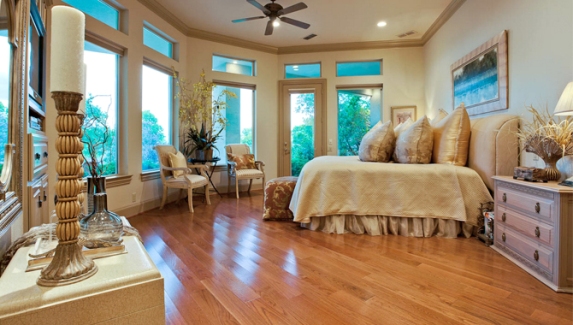

This luxury Mediterranean house design has so much diversity. A set of two-car garages with side entries flank the home's motor court. When entering through the two-story porch into the two-story foyer, your eyes are immediately drawn to the large decorative pillars that define the living room. Enjoy the fireplace and the veranda view. The study and elegant dining room flank the foyer. The dining room has access into the butlery and kitchen for ease in serving. The open family room, breakfast area and kitchen are separated only by the breakfast bar. The family room offers built-in TV access and bookcases adjacent to the fireplace. The built-in hutch in the breakfast room is perfect for storing Grandma's special set of china. A private bedroom with walk-in closet and full bath has easy access to one of the garages. This could make a great guest room or teen room with private exit. The master suite offers a posh bath with his and hers vanities, a separate shower and tub, and a large wardrobe that includes an exercise area with built-ins. Upstairs is a split-bedroom plan. Each bedroom has a walk-in closet and direct access to a full bath. The game room opens to a large balcony. There is plenty of storage space in the attic.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for sloping lot
Suited for view lot
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Side-entry
7,838 Ft
2
Total Structure
4,674 Ft
2
Total Heated
3,682 Ft
2
1st Floor
992 Ft
2
2nd Floor
4
Bedrooms
4.5
Bathrooms
4
Garage
2
Stories
109' 0"
Width
78' 0"
Depth
35' 8"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,248 Ft
2
Garage
105 Ft
2
Porch
1,204 Ft
2
Patio


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
