Sq Ft
4,085 FT²
Bed
3
Bath
3.5
Stories
1
Garage
3
Depth
84'
Width
88'
On Sale
$1,363.50
$1,363.50
© copyright by designer
View All 27 Images | Photographs may reflect modified home
Sq Ft
4,085 FT²
From
$1,363.50
Bed
3
Bath
3.5
Stories
1
Garage
3
Depth
84'
Width
88'

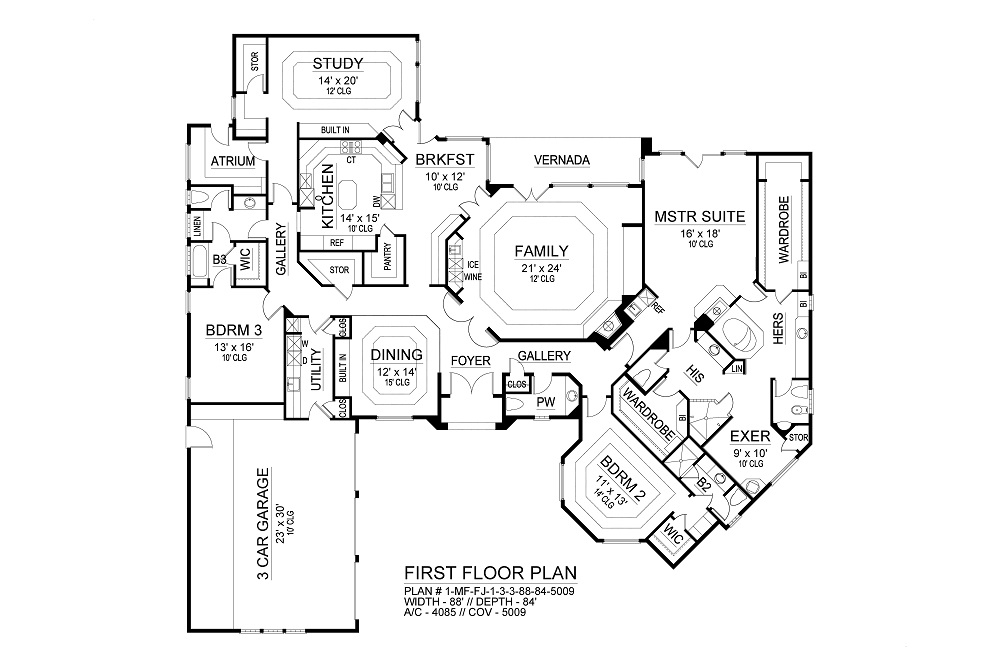

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Luxury abounds in this modern Italian mansion house plan with over 4,000 square feet on one level.

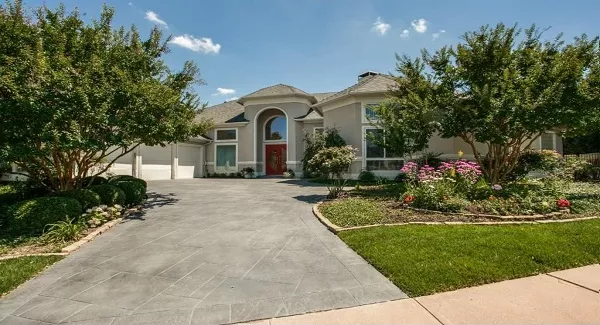

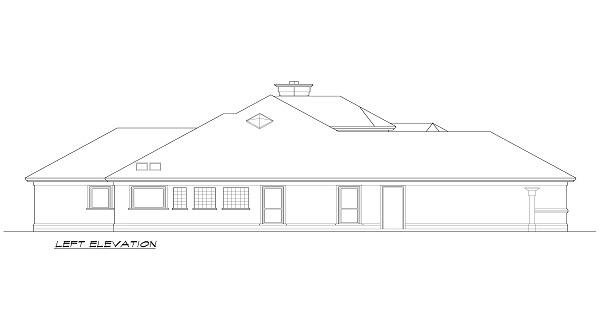

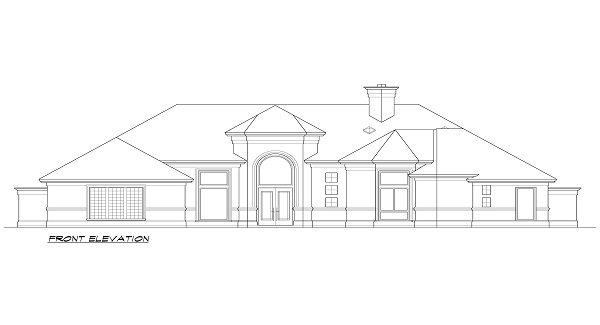

The exterior facade is stucco with trim around the windows and under the eaves. A turret-like area
jets out from the right with large rectangular windows above side-by-side verticals and rectangulars

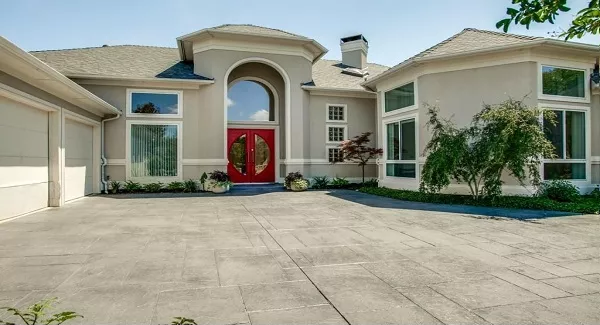

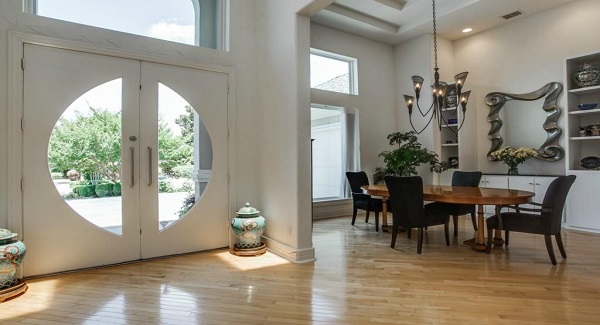

on the bottom. The three-car garage with courtyard entry comes out from the left. The covered entry
welcomes you under two-story arches and an arched window above the front door with two half moons

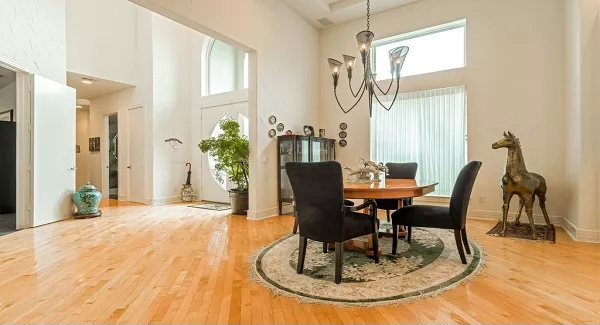

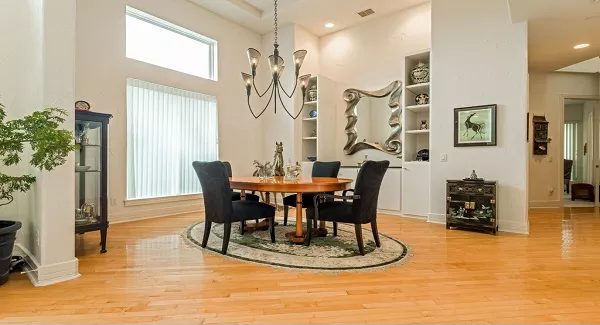

that make the round glass in the middle of this front door. The two-story foyer opens into the
elegant dining room with its 15 trey ceiling and built-ins, sitting adjacent to the pantry and
kitchen for ease in serving family and guest dinners. Continuing through the gallery you approach
the utility room with laundry tub, washer, dryer, counter for folding clothes, two closets and a low
shower for cleaning shoes, boots, or the dog. This room goes directly into the three-car garage, so
having a shower head as you come inside is a definite plus. Closets make a great place to hang
coats and put up gloves and boots. The garage has an area along the back large enough for a workshop
area, and an exit door to enter the side yard. Next to the utility room is a family bedroom with
walk-in closet and a full bathroom. Continuing toward the rear of the house plan down the gallery
is the atrium, with access to the backyard and where windows allow the light to stream through. At

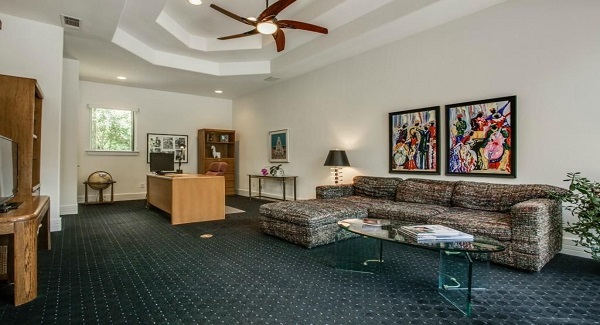

the rear of the house plan is a large storage room and large quiet study with 12 trey ceiling and

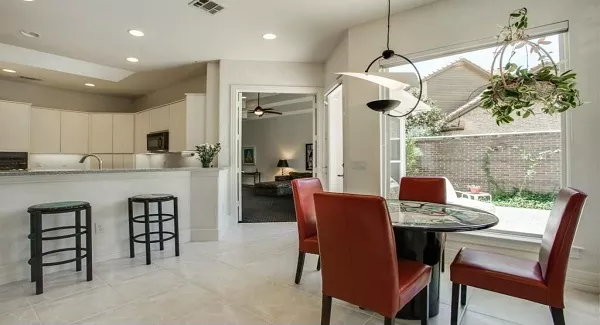

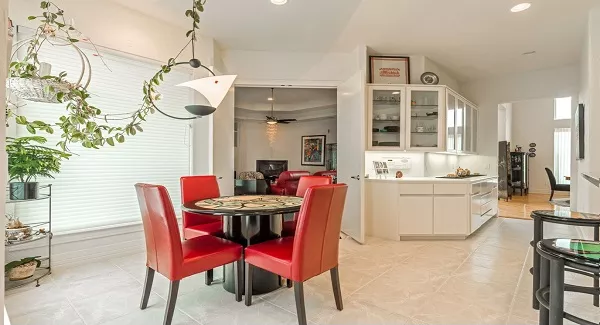

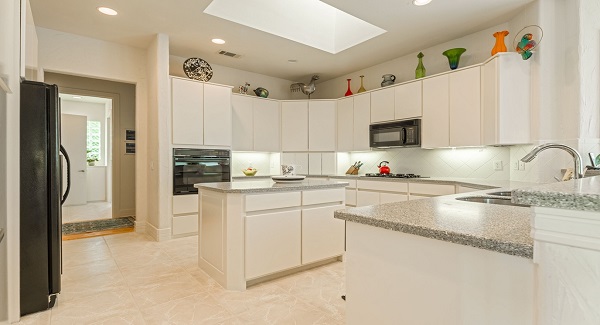

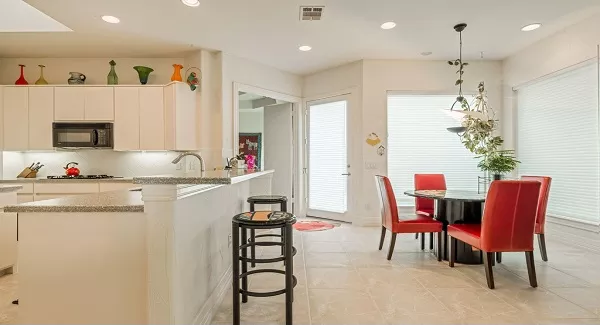

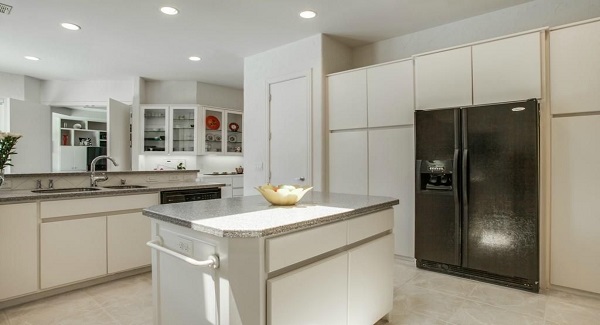

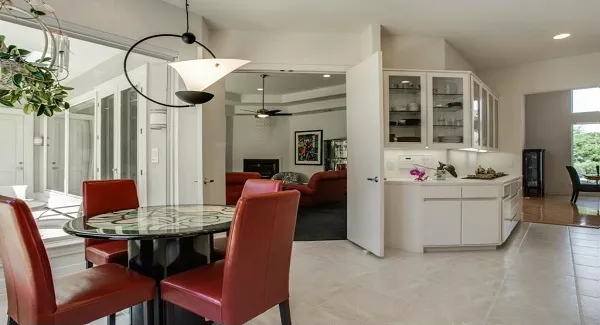

built-ins. Through double French doors, enter the breakfast area and kitchen. The gourmet kitchen
offers modern built-in appliances, granite countertops, recessed lighting, a free-standing center
island, a pantry, and an eating bar that seamlessly separates the kitchen from the breakfast area.

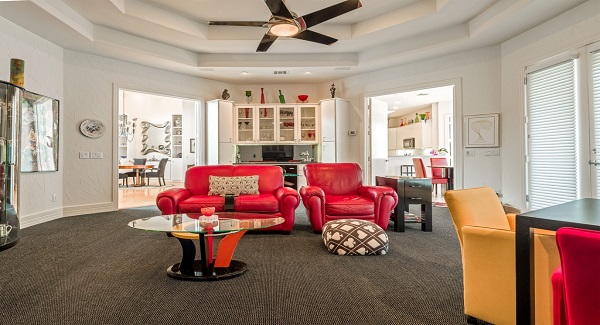

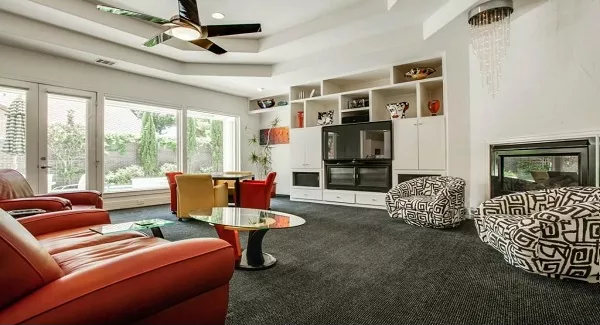

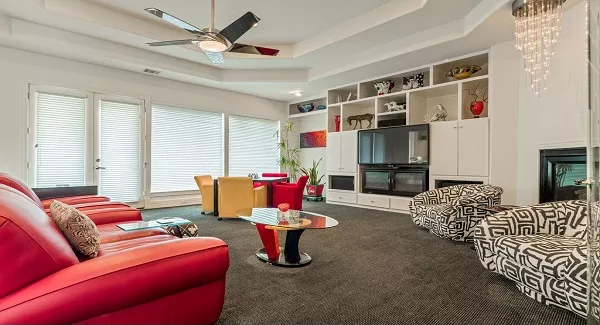

Centrally located is the large octagonal-shaped family room with 12 trey ceiling, wet bar with ice
maker and wine storage, a warming fireplace, built-in shelves, ceiling fan, arched entry from front
gallery, and access to the veranda. Large floor-to-ceiling windows blur the lines between inside

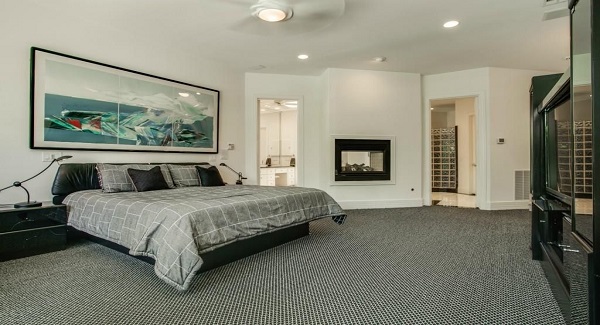

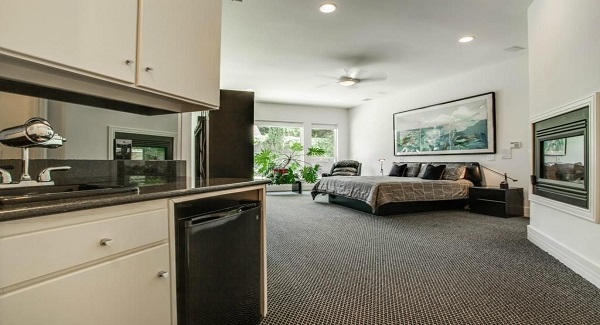

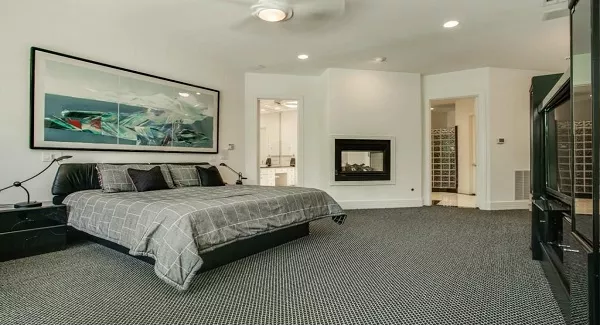

and out. The right side of the house plan is where you will find the luxurious master suite with
access to the backyard, a sink and refrigerator, and a his and hers bath that share an exercise

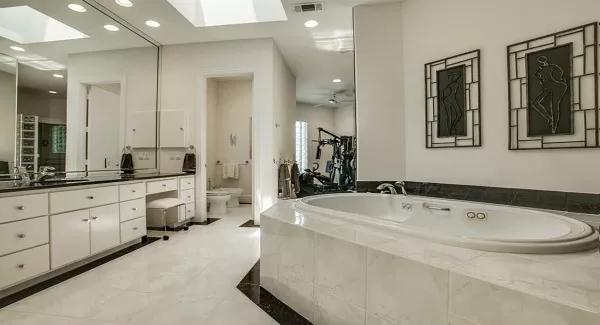

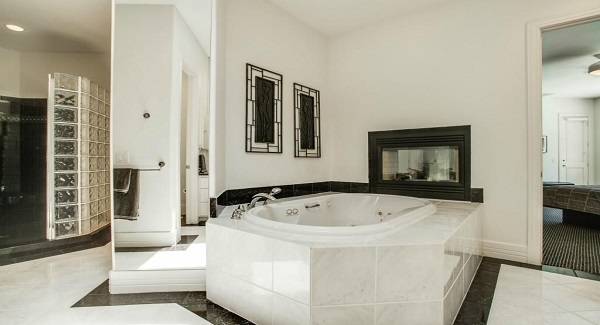

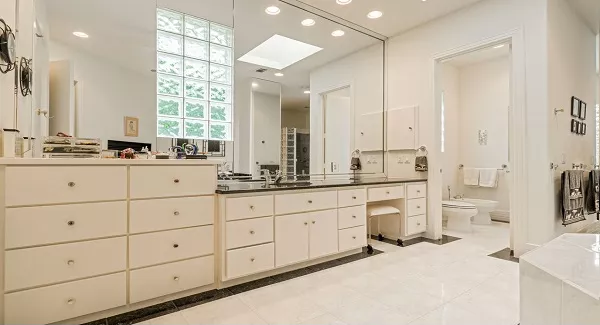

room. The hers bath has a luxurious marble surround Jet tub, vanity, large wardrobe with built-
ins, and a private toilet room with toilet and bidet. The his bath has a private toilet room,
vanity, linen closet, block glass shower, and a large wardrobe with built-ins. At the very front of

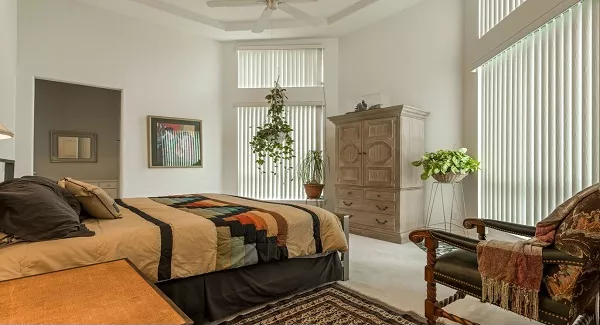

the house plan inside the turret area, is a family bedroom with 14 trey ceiling, walk-in closet
with built-ins, and a bathroom. This bathroom is closed off from the gallery, and could be used as
a guest suite, completing this elegant luxury Italian house plan.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Foundation Options
Slab
Additional features
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Rec Room
Garage Location
Side
Garage Options
Attached
5,009 Ft
2
Total Structure
4,085 Ft
2
Total Heated
3
Bedrooms
3.5
Bathrooms
3
Garage
1
Stories
88' 0"
Width
84' 0"
Depth
30' 0"
Height
10' 0"
Main Floor Ceiling
2x6
Framing
Stick
Roof Framing
8
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
750 Ft
2
Garage


Plan Package Options

 Select Plan Package
$1,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365
$2,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
